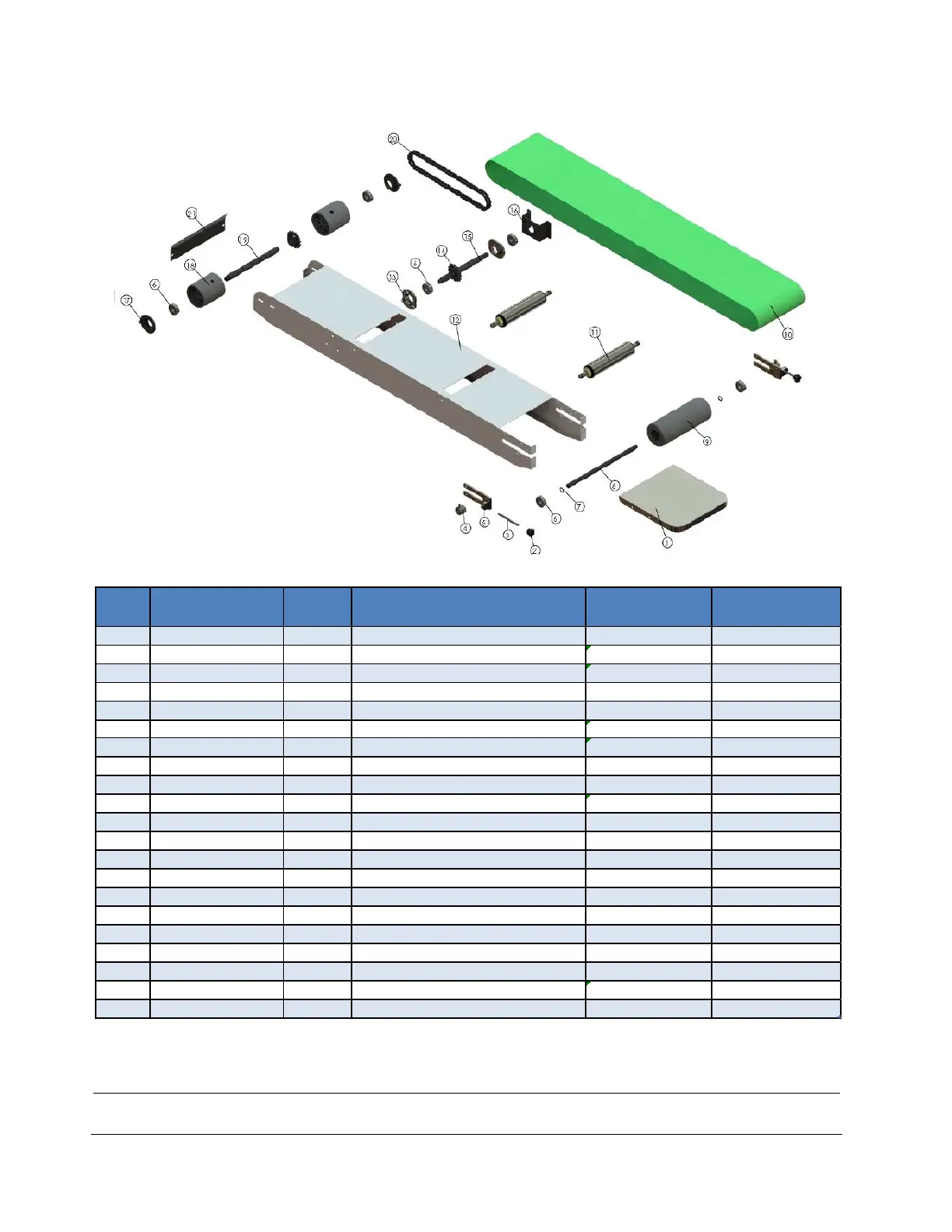

Figure 52. FRS-1120W Conveyor Parts Diagram
Figure 53. FRS-1120W Conveyor Parts List
Item # Part # Quantity Description
Reference Comments
1 FRM-1120C-15 1 Working Table 11511030002
2 FRM-1120LD-16 2 Adjusting Knob 9100402140632 Includes #2, 3, 4
3 FRM-1120LD-16 2 Adjusting Screw 11511030403.01 Includes #2, 3, 4
4 FRM-1120LD-16 2 Adjusting Loop 11511030403 Includes #2, 3, 4
5 FRM-1120LD-16-15 2 Adjusting Seat 11511030404
6 FRM-1120C-36 6 Bearing 6201-2RS 9105200602012 Includes #6-9
7 FRM-1120C-36 2 E-Clip 12mm 9746036400012 Includes #6-9
8 FRM-1120C-36 1 Conveyor Roller Shaft, Right 11511030402 Includes #6-9
9 FRM-1120C-36 1 Conveyor Roller, Right 11511030401 Includes #6-9
10 1 Conveyor Belt 2080 x 175 x 2 9422112208173
11 2 Intermediate Roller Shaft A115110304
12 1 Conveyor 11513030001
13 FRM-1120C-41 2 Middle Post 11111010014 Includes #6, #13-16
14 FRM-1120C-41 2 Gear 11511030104 Includes #6, #13-16
15 FRM-1120C-41 1 Shaft 11511030201 Includes #6, #13-16
16 FRM-1120C-41 1 Conveyor Middle Post with Gear 11511030203 Includes #6, #13-16
17 FRM-1120C-37 2 Front Roller Bearing 11511030102 Includes #6, #17-19
18 FRM-1120C-37 2 Conveyor Roller, Left 11511030103 Includes #6, #17-19
19 FRM-1120C-37 1 Shaft 11511030101 Includes #6, #17-19
20 1 Chain (06B-1 x 69L) 9104101106069
21 FRM-1120C-1-9 1 Outfeed Plate 11511030003
