FRM- 1120C INSTRUCTION MANUAL
37
Sealer Sales | www.sealersales.com | Tel: 818-718-8818 | E-mail: contact@sealersales.com

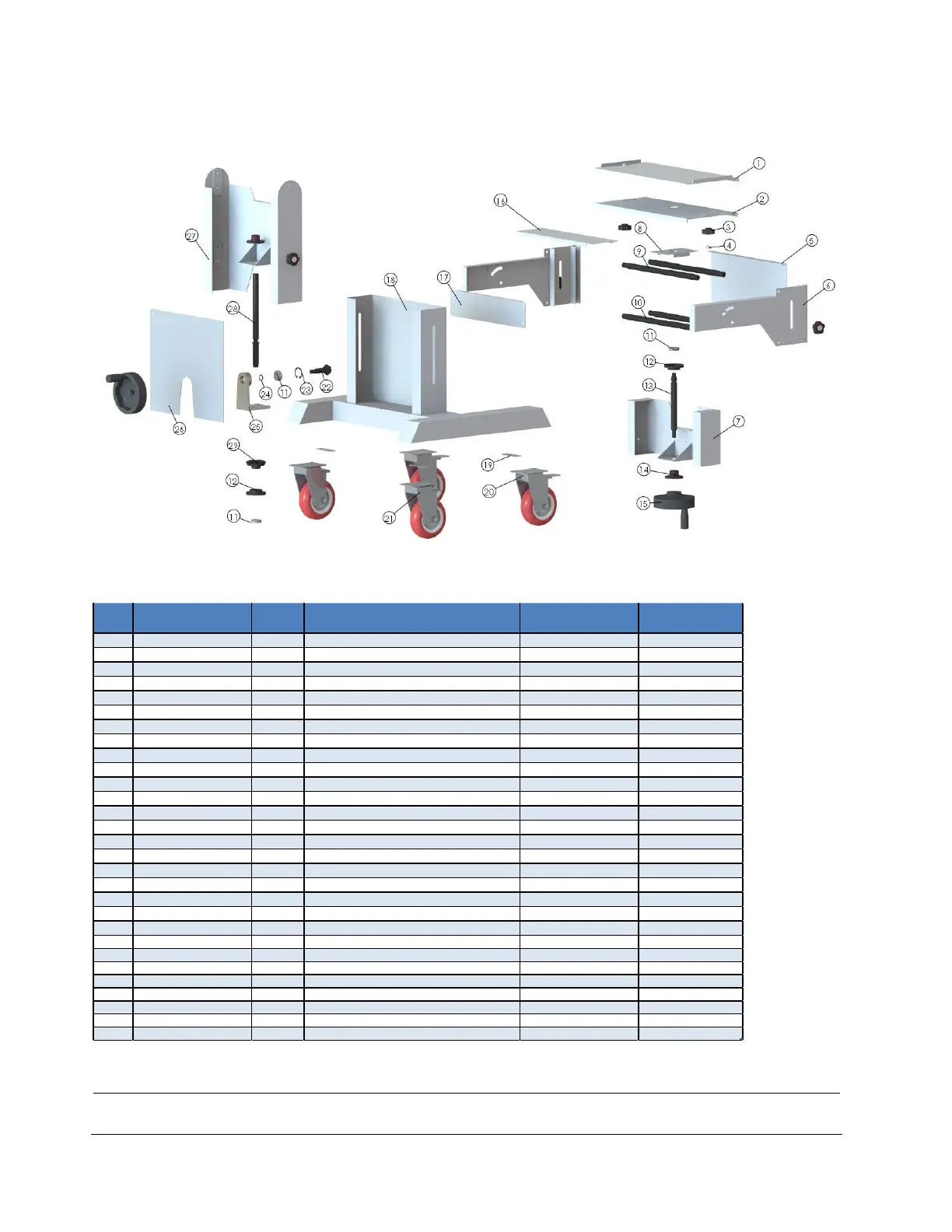

Figure 44. FRM-1120C Sealer Rack
Figure 45. FRM-1120C Rack Parts List
Item Part # Quantity Description
Reference Comments
1 FRM-1120C-20-18 1 Conveyor plate connecting plate 1
1511050010
2 FRM-1120C-20-17 1 Bracket slider connecting plate 11511050009
3 BS-5_Gen3.0 6 Pressure knob 9
450101111004
Includes #3, 4
4 BS-5_Gen3.0 6 Pressure knob 9450101111003
Includes #3, 4
5 1 Bracket front cover 11511050002
6 2 Bracket 11511050003
7 1 Carriage slider 11511050004
8 1 Support plate of bracket 11511050008
9 2 Bracket strut 11511050001
10 2 Bracket strut 11511050001-D2
11 Bearing_6002Z 3 Bearing 6002Z ϕ15 x ϕ32 x 9 9105200601022
12 FRM-1120C-95-3 2 Lifting screw bearing housing 11511040007
13 FRM-1120C-95-23 1 Bracket screw 1
1511050006
14 FRM-1120C-95-24 2 Lifting bracket nut 1
1511040004
15 FRM-1120C-90 2 Handwheel 9100303112100
16 1 Bracket cover 11511050011
17 1 Bracket back cover 11511050012
18 1 Base 11511040001
19 4 Packing support 11510000099
20 FRM-1120C-92B 2 Casters (w/ brake) 9
400102410403
21 FRM-1120C-92A 2 Casters (w/o brake) 9400102400403
22 1 Handle bevel gear 11511040009
23 Circlip-32mm 1 Circlip ϕ32mm 9746016400032
24 Circlip-15mm 1 Circlip ϕ1
5mm 9746036400015
25 1 Bevel gear seat 11511040005
26 1 Base back cover 11511040006
27 1 Lift slider 11511040002
28 1 Lifting screw 11511040003
29 FRM-1120C-95-5 1 Bevel gear 11511040008
