CBS- 880 INSTRUCTION MANUAL
25
7. Insert the vertical stand from step 3 into the conveyor support. Tighten both sides with screw and knob.
(Note: this is the sealing height regulator).

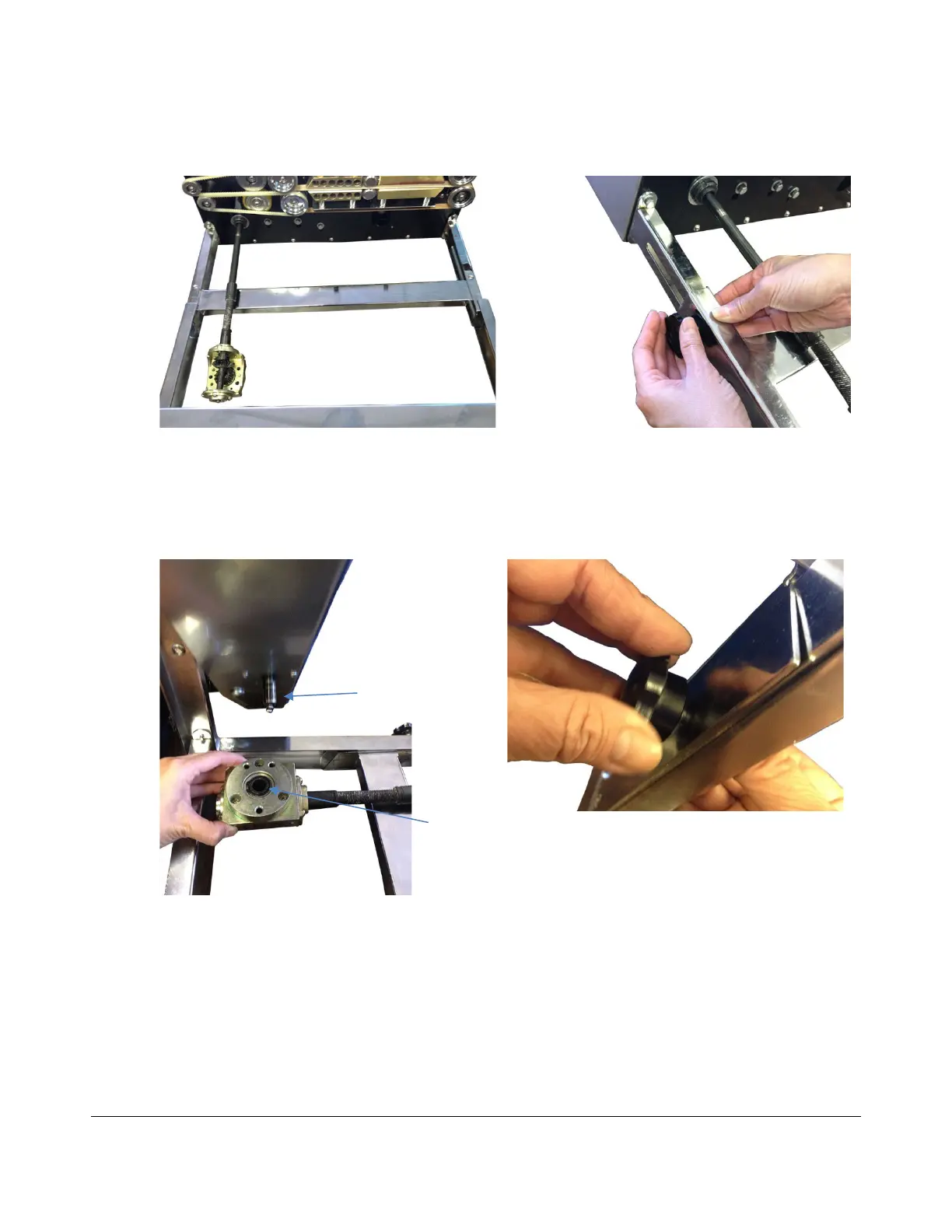

Figure 29. Insert the vertical stand on the conveyor support.
Figure 30. Tighten both sides with screw and knob. You can make
adjustments to the height of your band sealer.
8. Position the groove of the short drive shaft on the conveyor table unto the groove of the umbrella gear.
Do not lock the umbrella gear to the conveyor table yet. Tighten the knobs under the conveyor to lock
the conveyor in place.
Figure 31. Insert the short drive shaft on the conveyor unto the groove
of the umbrella gear.
Figure 32. Tighten screw and knob on both sides under the conveyor to
lock conveyor in place.
9. Position the band sealer in the upright position. The height between the sealing bars and the conveyor
table can be adjusted using the sealing height regulator. In some cases, the drive shaft may protrude from
the back cover.
10. Move the conveyor belt until the grove of the short drive shaft on the conveyor table is locked in place
with the groove of the umbrella gear. Be sure there is no space in between as it should fit exactly (moving
the conveyor belt will turn the long shaft.) Set the three screws.
72a
Short drive shaft on
conveyor table
Umbrella gear
