Electrical
The machine is not supplied with a power cord, one
must either be field installed or the machine
hard-wired.
The dataplate on the back of the cabinet details the
power requirements, including voltage, phase,
minimum circuit ampacity and maximum fuse size.
HACR type circuit breakers may be used in place
of fuses. Extension cords are not permitted. Use of
a licensed electrician is recommended.
Electrical connections are made inside the junction
box in the back panel of the ice machine.
1. Remove the junction box cover and route the
power cord through the access hole and
properly attach the power supply wires to the
leads in the junction box.
2. Install a field supplied strain relief per code.
Attach a ground wire to the ground connection
in the junction box.
3. Check voltage when complete.
4. Return the junction box cover to its original
position and secure with the original screws.
The electrical disconnect switch with fuse
protection must be a two pole type with a minimum
of 3 mm between open contacts.
Follow all applicable local, state and national
codes.
Final Check List
After connections,
1. Wash out the bin. If desired, the interior of the
bin could be sanitized.
2. Locate the ice scoop (if supplied) and have it
available for use when needed.
Final Check List:
1. Is the unit located indoors in a controlled
environment?
2. Is the unit located where it can receive
adequate cooling air?
3. Has the correct electrical power been supplied
to the machine?
4. Have all the water supply connections been
made?
5. Have all the drain connections been made?
6. Has the unit been leveled?
7. Have all unpacking materials and tape been
removed?
8. Is the correct switch bezel installed in the trim
strip?
9. Is the water pressure adequate?
10. Have the drain connections been checked for
leaks?
11. Has the bin interior been wiped clean or
sanitized?
12. Have any water filter cartridges been replaced?
13. Have all required kits and adapters been
properly installed?
July 2006
Page 9
C0322 through C1030
Air and Water Cooled User Manual
Ground Wire
Connection
Install
Strain
Relief
Power
Supply
Wires
Junction
Box
Cover

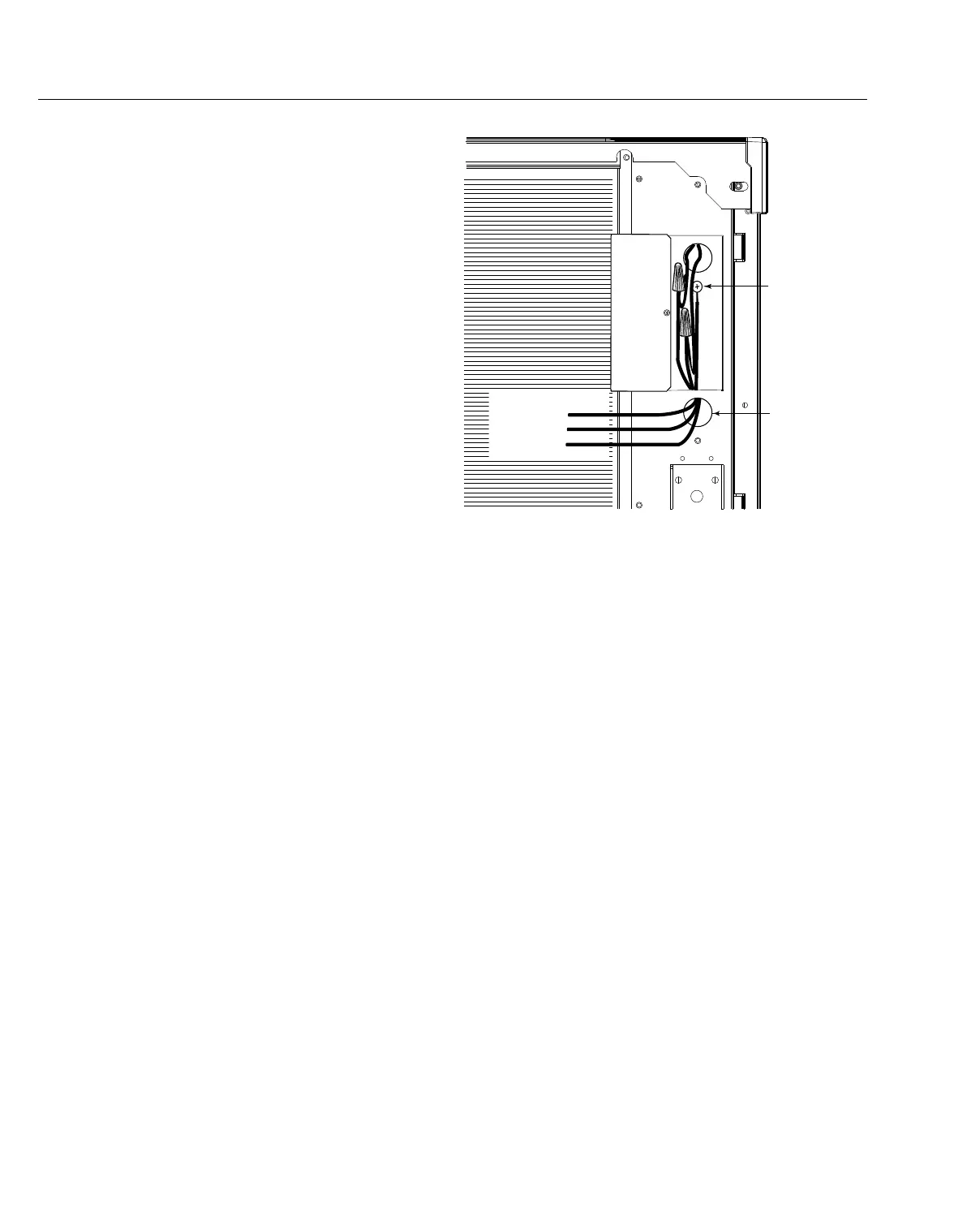

Electrical Connections, Back of Unit
