MC1448 and MC1848

Air and Water Cooled User Manual

June 2022

Page 9

Plumbing Requirements

All models require connection to cold, potable water.

A hand actuated valve within site of the machine is

required.

Air cooled models have a single 3/8” FPT inlet water

connection.

Water cooled models have a 1/2" FPT drain tting

plus an additional 3/8” FPT condenser inlet water

connection.

Water Filters

If connecting to water ltration, lter only the water

to the reservoir, not to the condenser. Install new

cartridges if the lters were used with a prior machine.

A triple head lter is recommended. Either the

Scotsman SSM3 taste and odor lter system, or the

ADS-AP3 AquaPatrol™ system.

Drains

All models require drain tubing to be attached to

them. Air cooled models have a single 3/4” FPT drain

tting in the back of the cabinet. Water cooled models

have the same tting plus an additional 1/2” FPT drain

tting in the back of the cabinet. Install new tubing

when replacing a prior ice machine, as the tubing will

have been sized for the old model and might not be

correct for this one.

1. Connect water supply to water inlet ttings.

Note: This NSF listed model has a 1" anti-back

ow air gap between the end of the water inlet tube

and the highest possible reservoir water level, no

additional back ow device is required for the potable

water inlet.

2. Connect drain tubing to drain ttings.

3. Route the drain tubing to building drain. Follow

local codes for air gap.

Use rigid drain tubes and then route them separately

– do not Tee into the bin’s drain or, if water cooled,

Tee the condenser drain into the reservoir or bin drain.

Vent the reservoir drain. A vertical vent at the back of

the drain, extended about 8 - 10” will allow the gravity

drain to empty and also keep any surges during

draining from discharging water out the vent.

Insulate drain tubing if in a humid environment.

Horizontal runs of drain tubing need a 1/4” per fall per

foot of run for proper draining.

Follow all applicable codes.

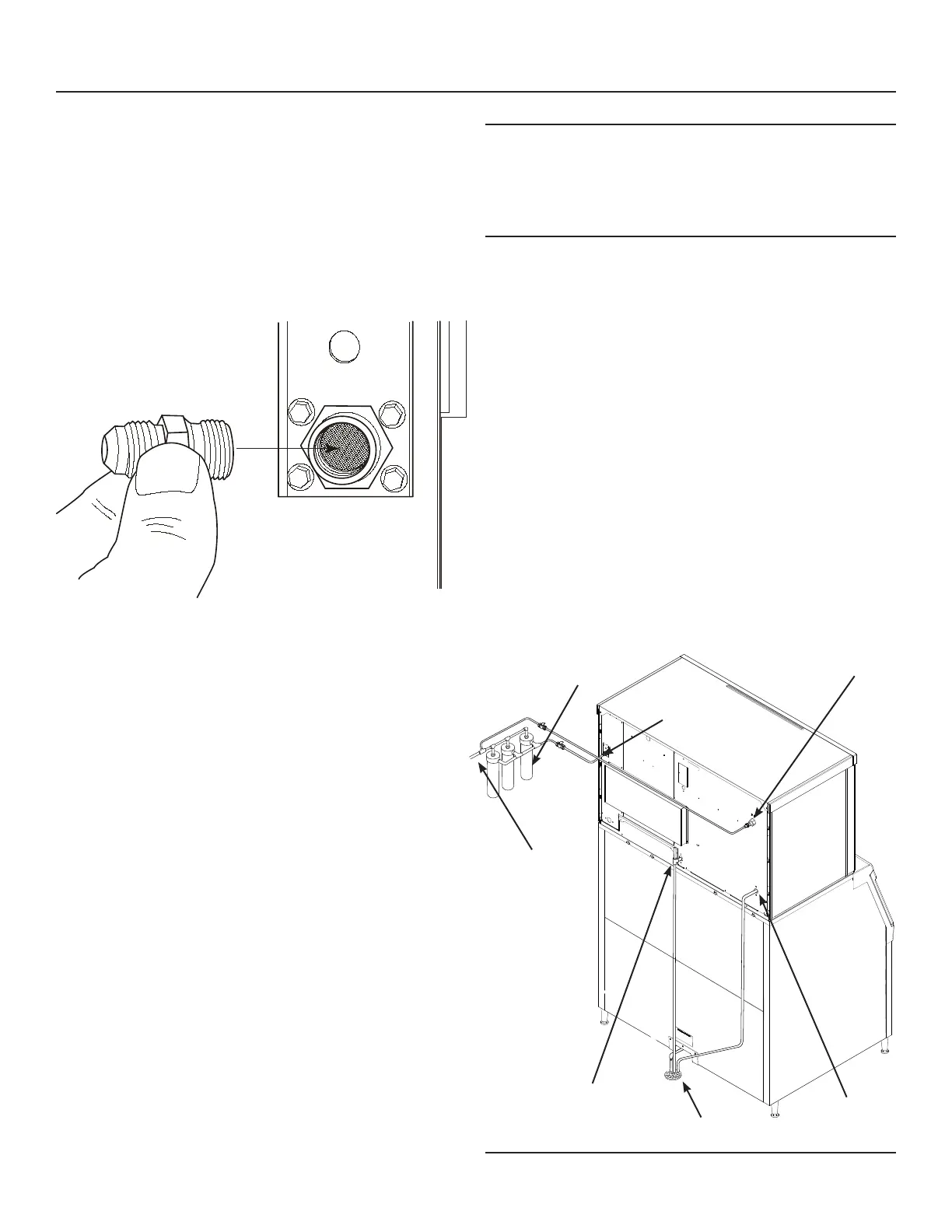

Water Fitting

Field Supplied

Inlet Water Connection

Water Inlet

Connection

Potable Water

Supply

Optional Water

Filters

Plumbing Connections

Water Cooled

Condenser Drain

Water Cooled

Condenser Inlet

Floor Drain

Reservoir

Drain
