User Manual for Models CUR0415, CUR0715 and CUR0920
Connect the water supply
Plumbing information:
There is a single 3/4 gas BNF inlet water connection
and a connecting hose is supplied.
Note: New connecting hose is supplied do not re-
use old hose set.
• A hand actuated valve within site of the machine is
required to isolate the unit when being serviced.
• Themachinehasabuilt-inbackowpreventer
(an air gap between the end of the water inlet hose
andthetopofthewater),noadditionalbackow
preventer is needed.
Units that are built into a cabinet:
Include a loop or coil of tubing between the water
supply and the connection on the ice machine. When
the machine is pushed back into the cabinet the
tubing will coil and not kink.
Connection Information:
WARNING: connect to potable water supply only.
Important: Open the hand water valve to ush
water through the tubing before connecting to the
ice machine.
230 volt models: Connect cold potable water to the
3/4gasttingontheunitusingthesuppliedhose.
Note: Do not use a piercing-type saddle valve to
connect to the building’s water supply. Valves of
that type restrict water ow and clog easily.
Connect the drain
Thedrainconnectionisatthebackpanel.Thetting
sizeis¾FPT.Connectrigidtubingtothisttingand
vent it at the machine, use an 8 inch or 200 mm
vertical tube for the vent.
Drain tubing must slope down from the ice machine
to the building drain and the slope must be at least
¼ inch per foot or 20 mm per meter.
Insulating the drain tubing will reduce
condensation and is recommended for
environments that have high humidity.
Due to the potential for leaks,
condensate pumps are not
recommended.

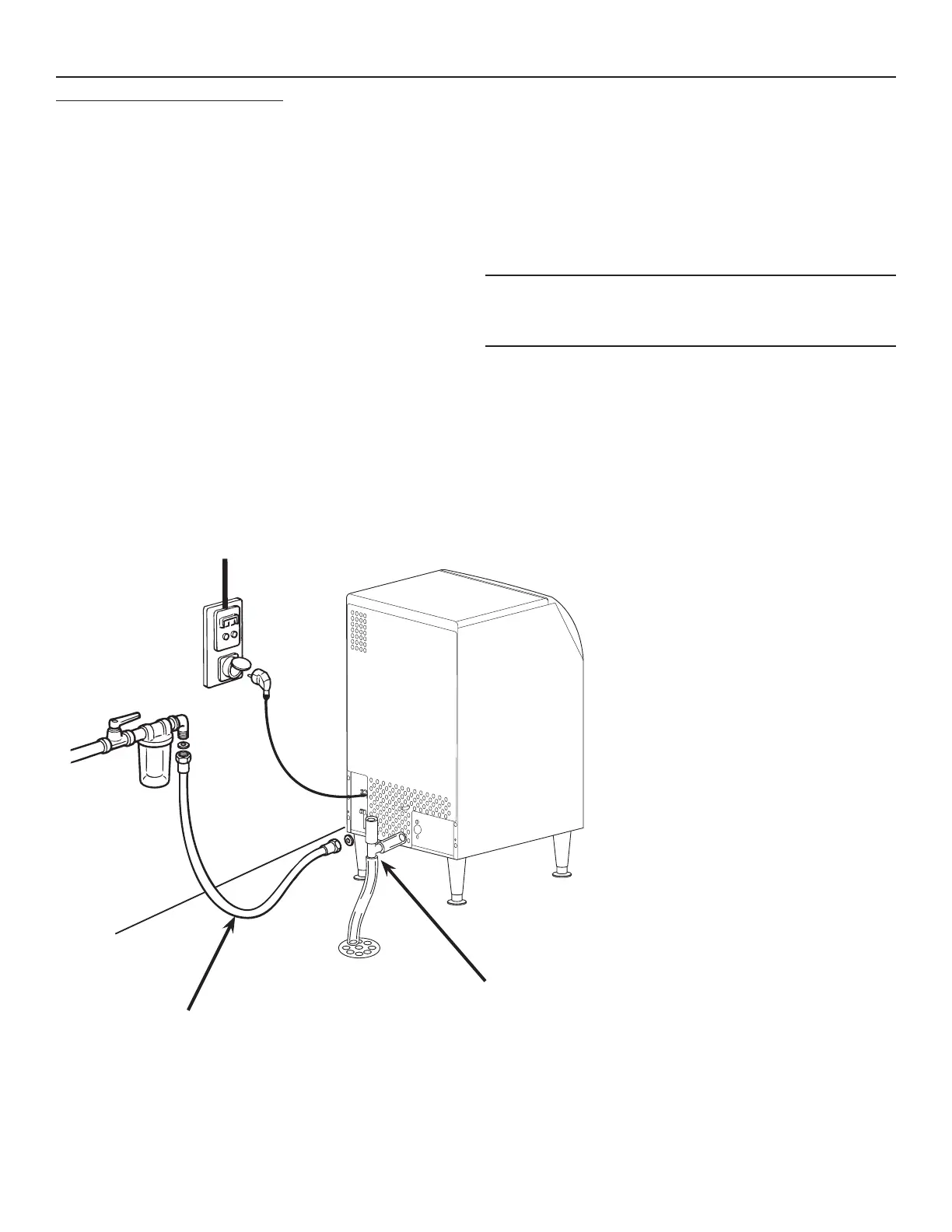

Drain - Must be
Vented
New Hose Set
