User Manual for Models CU0415X, CU0715X and CU0920X
Pre-Installation
This appliance is intended to be used in commercial
applications including:
• Restaurant kitchens
• Bars
• Hotels
Dimensions and Electrical:
Location:
The unit can be built into a cabinet, as airow
circulates in and out the front vent. The front of the
machine must not be blocked. Certain maintenance
or repair procedures will require removal of the top,
back and side panels, so plan ahead for service and
maintenance needs.
Spacing:
No additional spacing is required at the top or sides.
However, suggested minimum side clearance for
installation is 1/8” or 3 mm and suggested minimum
top clearance is 1/4” or 7 mm.
Allow 4” (100 mm) minimum space at the back for the
utility connections. Do not block louvers at the front of
the cabinet.
Unpacking and Setup
Remove all shipping and packing materials that may
be in the ice storage bin.
The unit can be installed with or without legs. The
cabinet is equipped with small bumpers on the base
to allow placement without legs. An optional oor
mounting kit is also available to ll the gap between
the machine and oor if not using legs.
If using legs, carefully tip the machine and install
the legs by screwing them into the leg sockets in the
bottom of the machine. For reference, the thread
size is 5/8” – 11. If the machine has been tipped onto
its side or back allow 1 hour before starting the unit
for the oil in the refrigeration system to return to the
compressor.
Place the machine in its intended location and level it
front to back and left to right. If using legs, adjust their
feet in and out to level the cabinet.
If legs are not used the bottom edges of the cabinet
must be sealed to the oor.
If built into a cabinet, the adjacent cabinet walls will
provide the means for containment. There are no
means for attachment to the cabinet.
Be sure to remove the plastic covering the exterior
panels. If left on, the plastic will be much harder to
remove later.
Model Electrical
(volts/Hz/Phase
Width
(in / cm)
Depth
(in/cm)
Height (w/o legs)
(in/cm)
Total Load
Amps
Max Fuse
Size
CU0415MAX-1A 115/60/1 15 / 38 23.7 / 60.3 31.94 / 81.1 3.5 15A
CU0715MAX-1A 115/60/1 15 / 38 23.7 / 60.3 31.94 / 81.1 4.0 15A
CU0920MAX-1A 115/60/1 20 / 51 23.7 / 60.3 31.94 / 81.1 5.9 15A

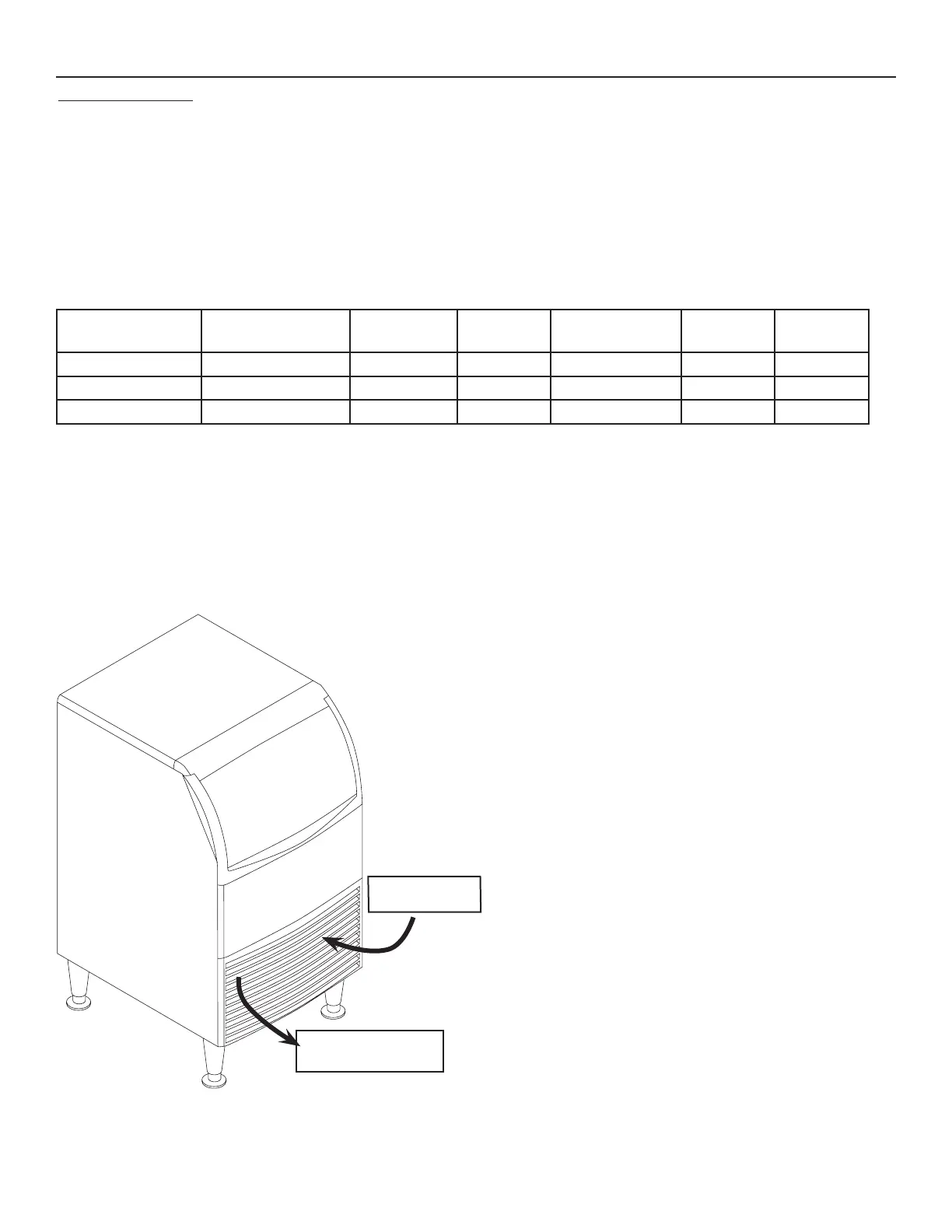

Air IN
Air OUT
