Decorating Features:
The machine ships unnished, allowing the
attachment of a decorator door panel or a metal
panel from Scotsman.
Door Panel
The ice machine is supplied without a
conventional door covering so it can be decorated
to the user’s preference. Scotsman oers several
coverings including white, black and stainless
steel. In addition, a custom built panel can be
placed onto the door.
Door Panels: Finished door panels are available
from Scotsman for attachment to the machine, or
a custom panel can be made. The panel kits are:
Kit Number Panel Finish Handle Finish
KDFS Stainless Steel Stainless Steel
Door Panel Attachment
To attach a Scotsman supplied panel:
Note: If door swing is to be changed, it must be
done before panel is attached.
The panel will be held on by 6 sheet metal screws
and 2 machine screws.
1. Remove the gasket and retain for later use.
2. If the door panel is stainless steel, remove any
plastic covering the stainless steel
panel.
3. Place the panel onto the outside
of the door, and secure it to the door
using two machine screws, located
at the left center and right center.
4. Fasten the panel to the door using
the 6 sheet metal screws. In the
hinge area, use the outermost screw
holes.
5. Place the covers over the hinge
areas, and secure each cover to the
door using a sheet metal screw.
6. Insert hole plug over screw
installed in step 5.
7. Return the gasket to its original
position.
Custom Panel
A custom panel of wood or other material not
exceeding 15 lb can be attached to the door.
Attachment is from the ice side of the door. Holes
are provided in the door for this purpose.
See instructions in information packet to create
and attach a custom panel

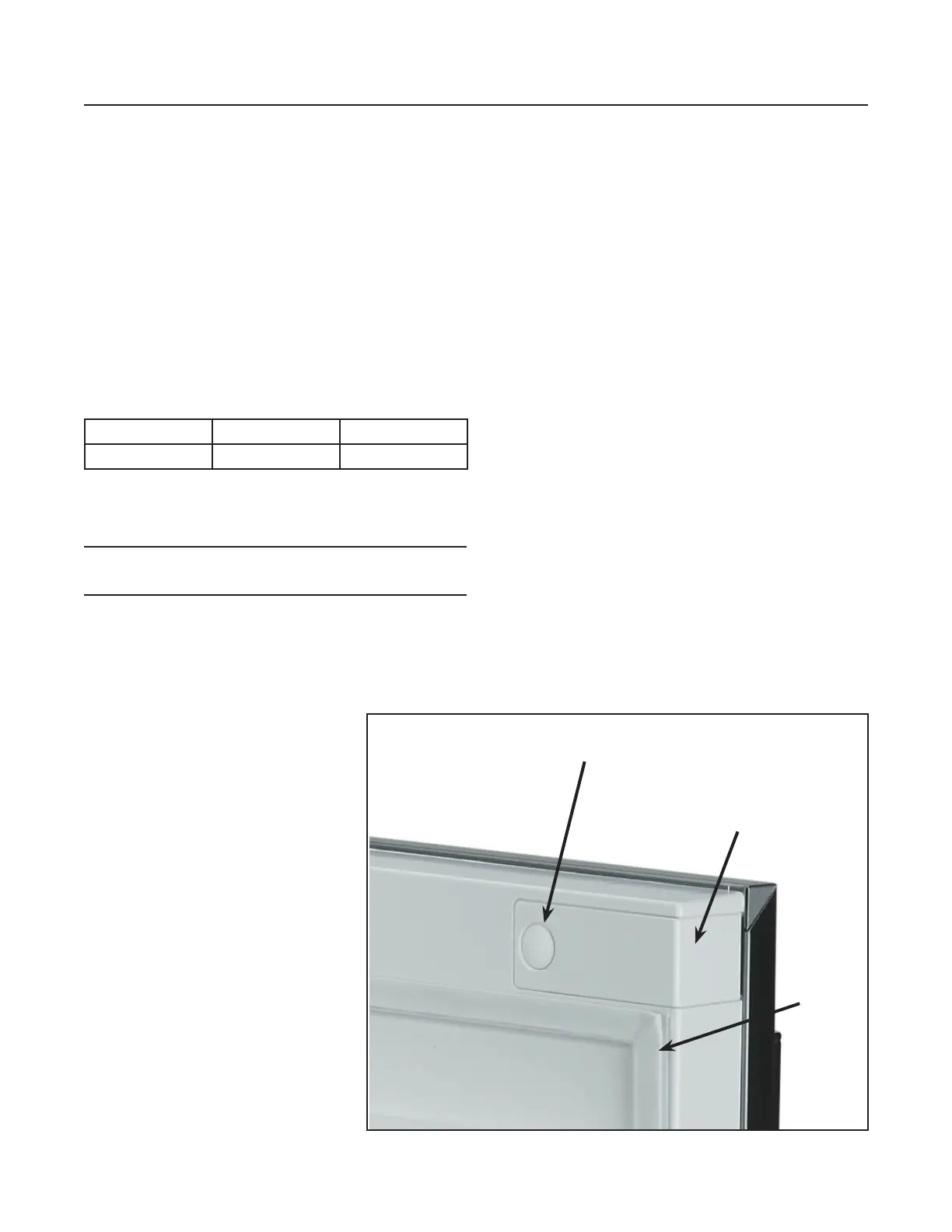

Hole Plug
Cover
Gasket
