Page 8
4. Installation
DANGER
All electrical wiring from the motor to
the rangehood should be kept inside
the roof space.

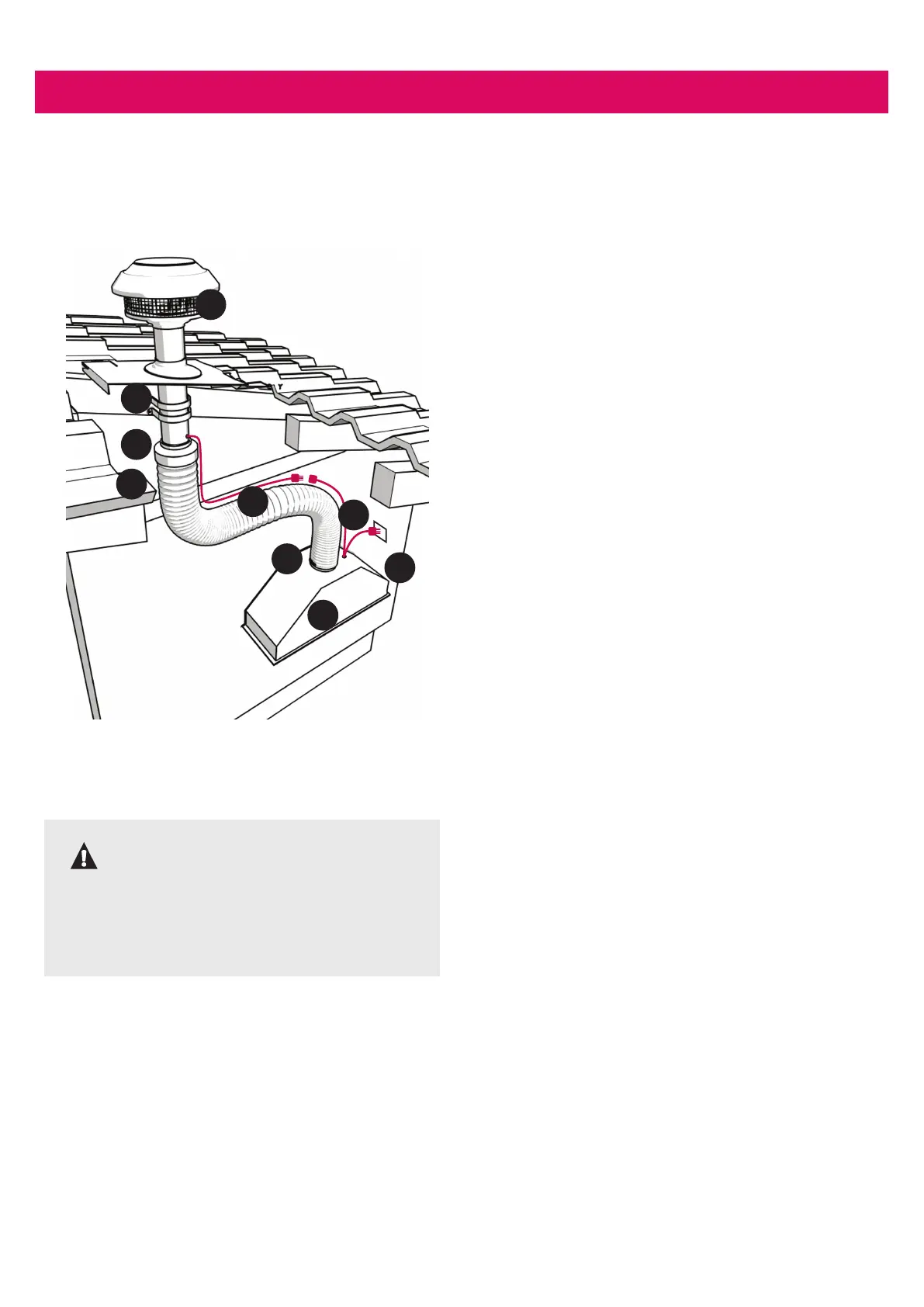

System Overview
1. Isodrive Motor
2. Roof Seal Kit (Dektite)*
3. Support Straps*
4. Attach Flexi Duct to Bell-Mouth Adaptor
using cable tie or ring clamp. Please
DO NOT rip the ducting.
5. Isodrive Motor Power Lead (Male Plug)
6. Rangehood to Isodrive Motor Lead
(Female Plug)
7. Main Power Lead (Male Plug, 10 Amp)
8. Flexi Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect exi ducting to the outlet on
rangehood using cable tie or ring clamp.
Please DO NOT rip the ducting.
*NOTE: The Isodrive motor system does not
include the roof seal kit, cable ties, ring clamp or
the support straps.
NOTE: The general power outlet for the
rangehood should be located in an easy
to access area.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
5
6
7
8
9
