900 motor

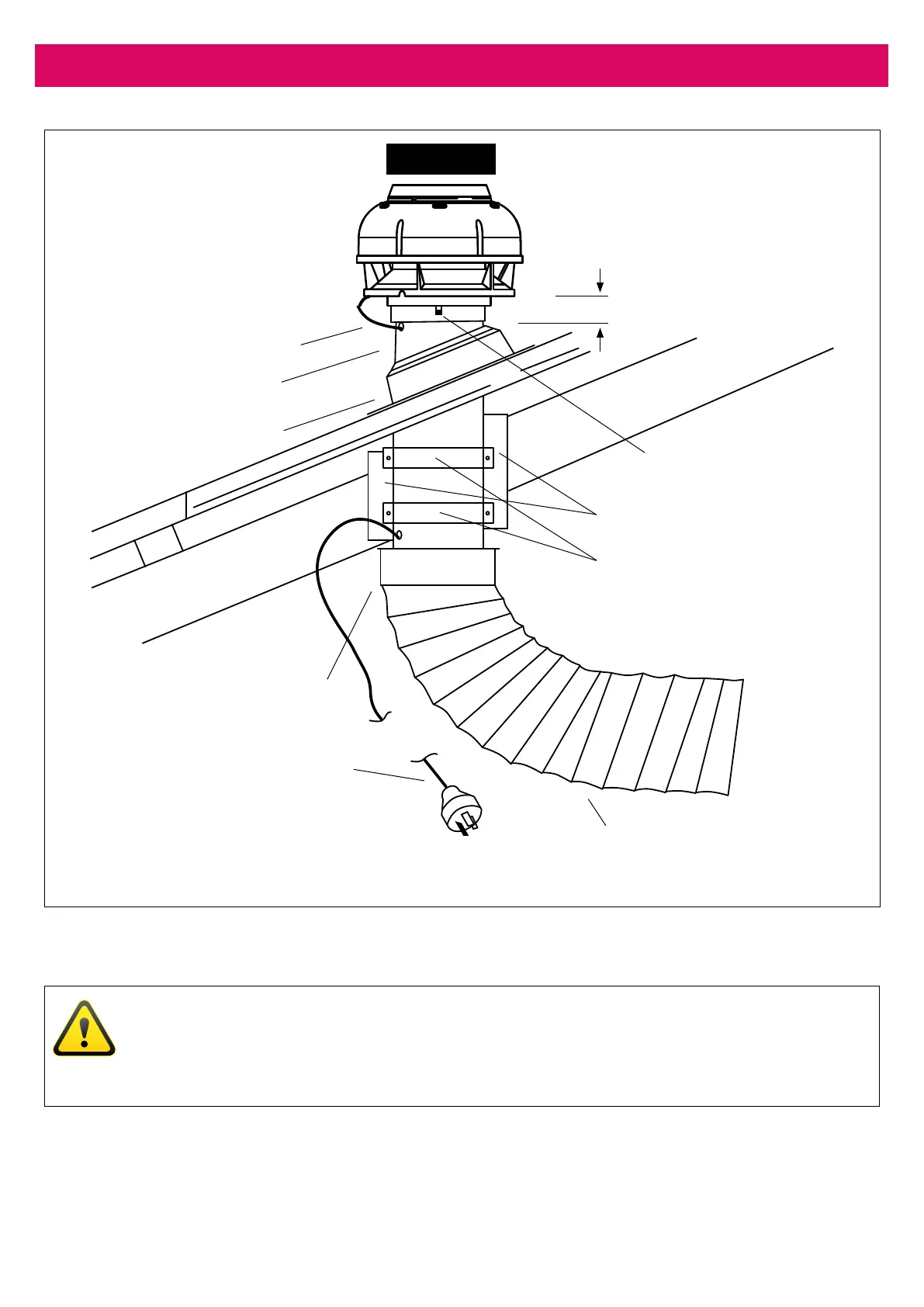

Figure 1 Roof Mount Option
IMPORTANT
For more exible ducting instructions, refer page 22. Shutter assembly for 1600 motor is not
shown in the diagram. Weather shield (for 1600 motor only) should be installed to prevent rain/
water entering the unit.
Pipe protrusion above dektite
Fix fan module using side
locking screw
Connect to
rangehood
Connect to power supply
NOTE: Prevent any cord bunching by
pulling cord through from plug top end
NOTE: Minimum ducting length
4 metres. Fully extend exible
ducting, cut to length.
Fit side supports to locate pipe
Strap to supports
Power Cord
Dektite
150mm PVC Pipe
(Locking holes fan end)
Bell-mouth Adaptor
50mm
4. Installation
