3. Description
Isodrive Motor

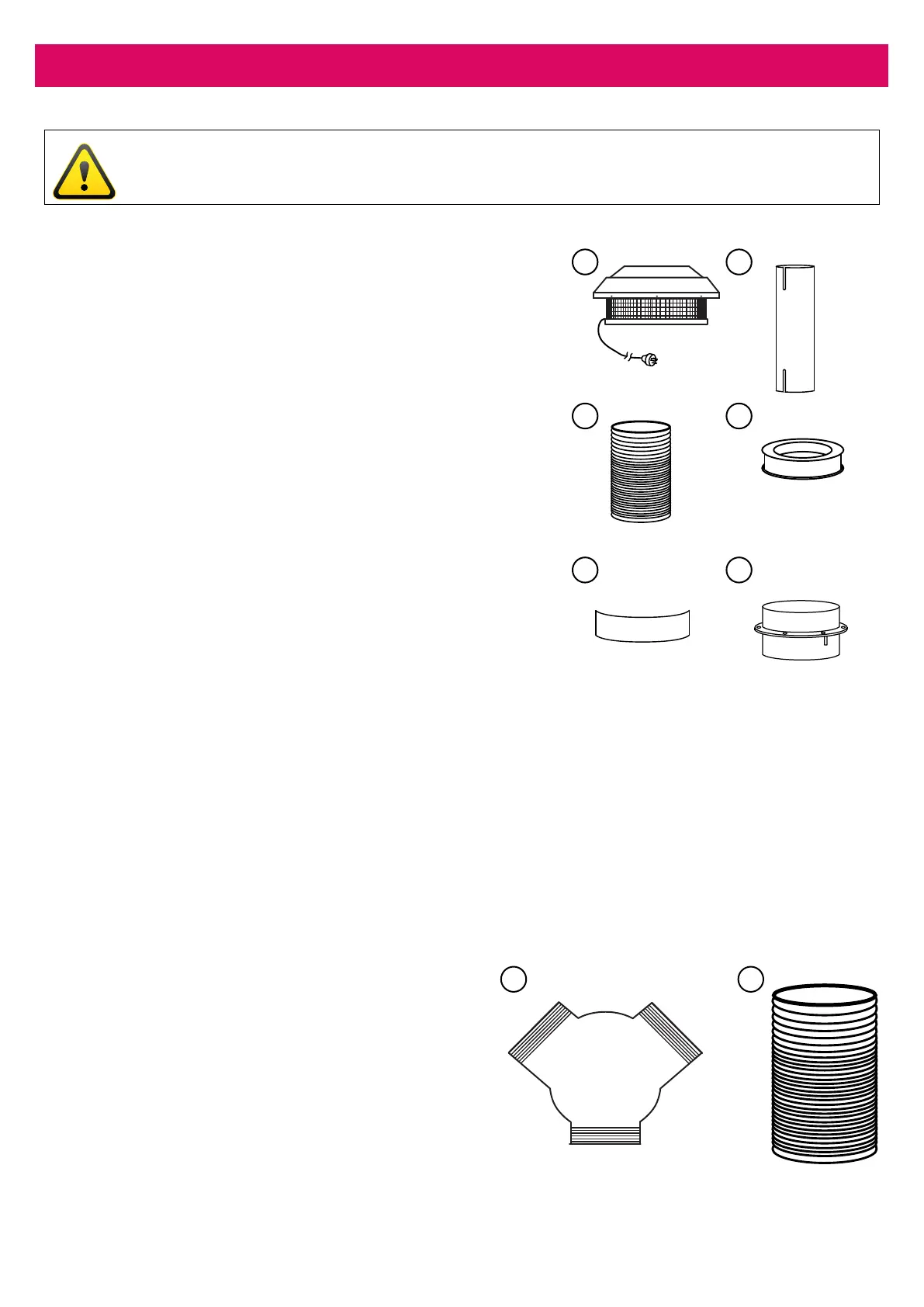

Included in the box:
1. Isodrive 1600 motor (405W x 220H mm approx.)
Approx. 3 metre, 10amp cable and standard male plug
2. Fire resistant 150mm (160mm OD
1
) PVC riser pipe
Note: Cable cut-out at the bottom end only
3. Flexible ducting
Approx. 6 metres, 200mm (210mm OD
1
) diameter
4. Bell-mouth adopter ring
200mm duct to 150mm riser
5. Weather Shield
Should be installed to prevent rain/water entering the unit
6. Back Draught Shutter
Not included in the box:
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Aluminium Foil tape
• Hanging Bracket require for wall mount
• Wall Cover Plate (wall mount only)
• Zip ties
1
5
2
3 4
6
NOTE
For more exible ducting instructions, refer page 19.
1
OD refers to outside dimension.
Additional products will be required for a for twin
200mm outlet rangehood using a single 1600
Isodrive motor:
i. One 200mm x 200mm x 200mm Y joint
ii. Flexible ducting
Approx. 3 metre, 200mm (210mm OD
1
) diameter
i
ii
