3. Description
Isodrive Motor

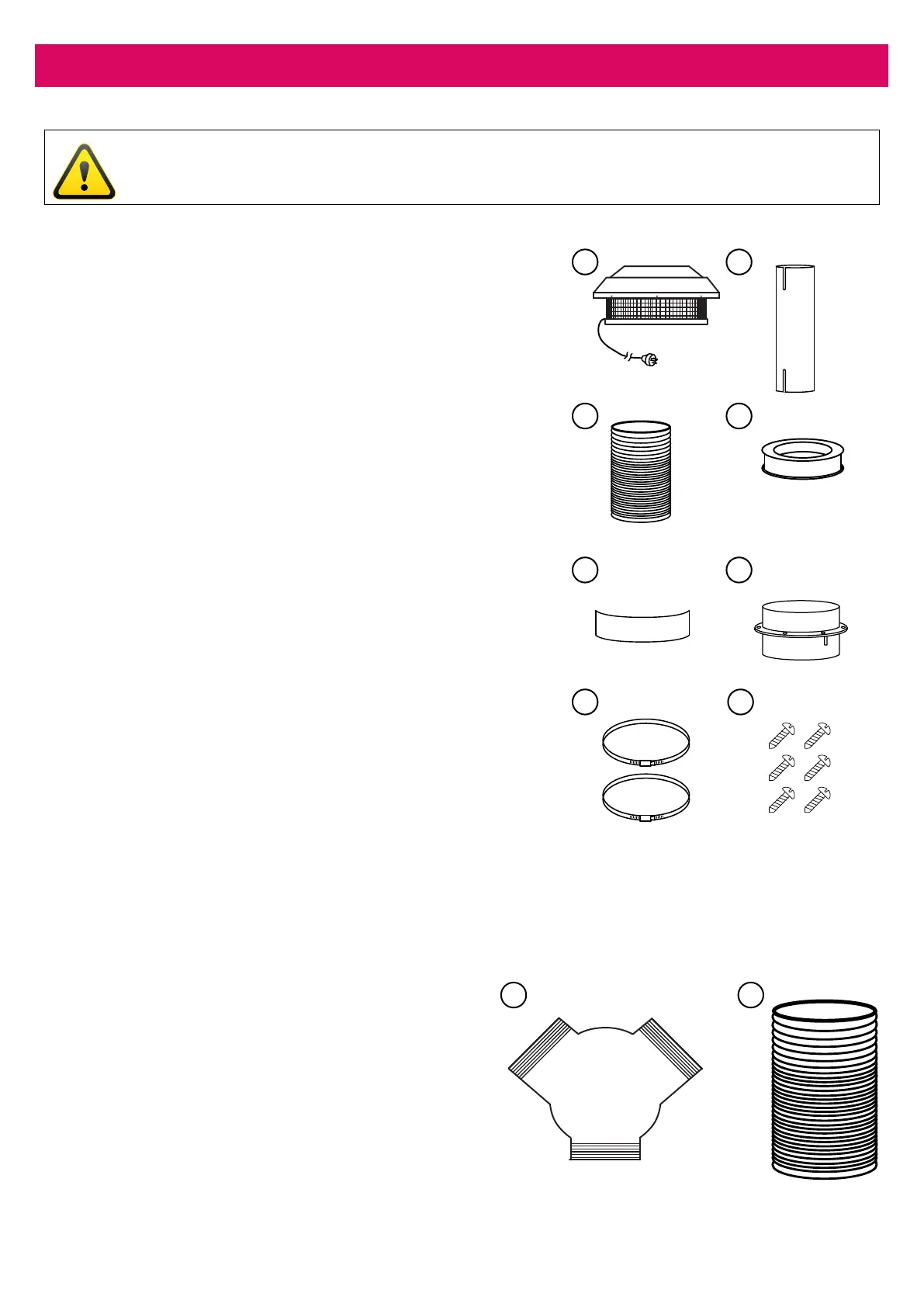

Included in each box:
1. Isodrive 1600 motor (405W x 220H mm approx.)
Approx. 3 metre, 10amp cable and standard male plug
2. Fire resistant 150mm (160mm OD
1
) PVC riser pipe
Note: Cable cut-out at the bottom end only
3. SteelFlex
™
safety ducting
Approx. 6 metres, 200mm (210mm OD
1
) diameter
4. Bell-mouth adapter ring
200mm duct to 150mm riser
5. Weather Shield
Should be installed to prevent rain/water entering the unit
6. Back Draught Shutter
7. 2 x Steel ring clamps
8. 6 x 20mm self-drilling button head screws
Not included in the boxes:
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Aluminium foil tape
• Hanging bracket required for wall mount
• Wall Cover Plate (wall mount only)
• Zip ties
1
5
7 8
2
3 4
6
NOTE
For more SteelFlex
™
ducting instructions, refer page 19.
1
OD refers to outside dimension.
Additional products will be required for a for
single 200mm outlet rangehood using 3000
Isodrive motors:
i. One 200mm x 200mm x 200mm Y joint
ii. SteelFlex
™
ducting
Approx. 3 metre, 200mm (210mm OD
1
) diameter
i
ii
