USER GUIDE
9
CONNECTION EXAMPLE (LEFT) CONNECTION EXAMPLE (RIGHT)
Power supply via the built-in DVB-T(2) receiver in
the TV set
Power supply via the supplied external power sup-
ply unit
1. Make sure that the television set is switched off. 1. Make sure that the television set is switched off.
2. Connect the coaxial cable of the indoor aerial to the
aerial connection of the external amplifier.
2. Connect the coaxial cable of the indoor aerial to the
aerial connection of the external amplifier.
3. Connect the coaxial cable of the external amplifier to
the aerial input of your TV set.
3. Now plug the external power supply unit cable into
the "5 V DC" socket of the external amplifier and the
external power supply unit to a 230 V AC socket.
4. You can now turn on the television set. 4. Connect the coaxial cable of the external amplifier to
the aerial input of your TV set
5. In the menu on your TV screen, switch on the 5 V
power supply to power the external amplifier through
the coaxial cable.
5. When making this connection, it doesn't matter whet-
her the 5 V power supply of the TV is activated or not.
6. You can now look for channels that you can receive.
If necessary, refer to the television's user manual for
guidance.
6. You can now turn on the television set and look for
channels that you can receive. If necessary, refer to
the television's user manual for guidance.

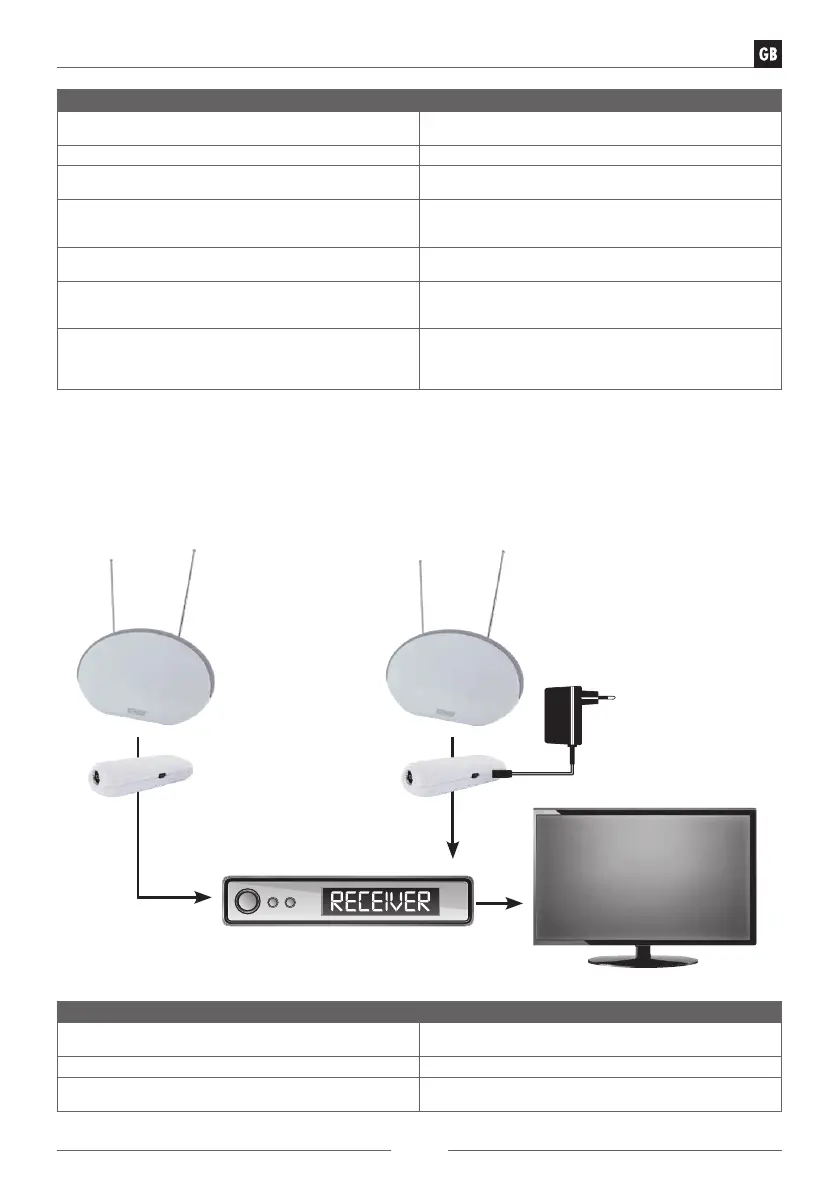

CONNECTING THE INDOOR AERIAL FOR TV SETS WITHOUT INTEGRATED
DVB-T(2) RECEIVER
Connection example (LEFT) Connection example (RIGHT)
TV
OR
External power
supply unit
External amplifier
CONNECTION EXAMPLE (LEFT) CONNECTION EXAMPLE (RIGHT)
Power supply via the DVB-T(2) receiver Power supply via the supplied external power sup-
ply unit
1. Make sure that the DVB-T(2) receiver is switched off. 1. Make sure that the DVB-T(2) receiver is switched off.
2. Connect the coaxial cable of the indoor aerial to the
aerial connection of the external amplifier.
2. Connect the coaxial cable of the indoor aerial to the
aerial connection of the external amplifier.
