- 12 -
www.SCEPTRE.com
SCEPTRE A55 Series User Manual

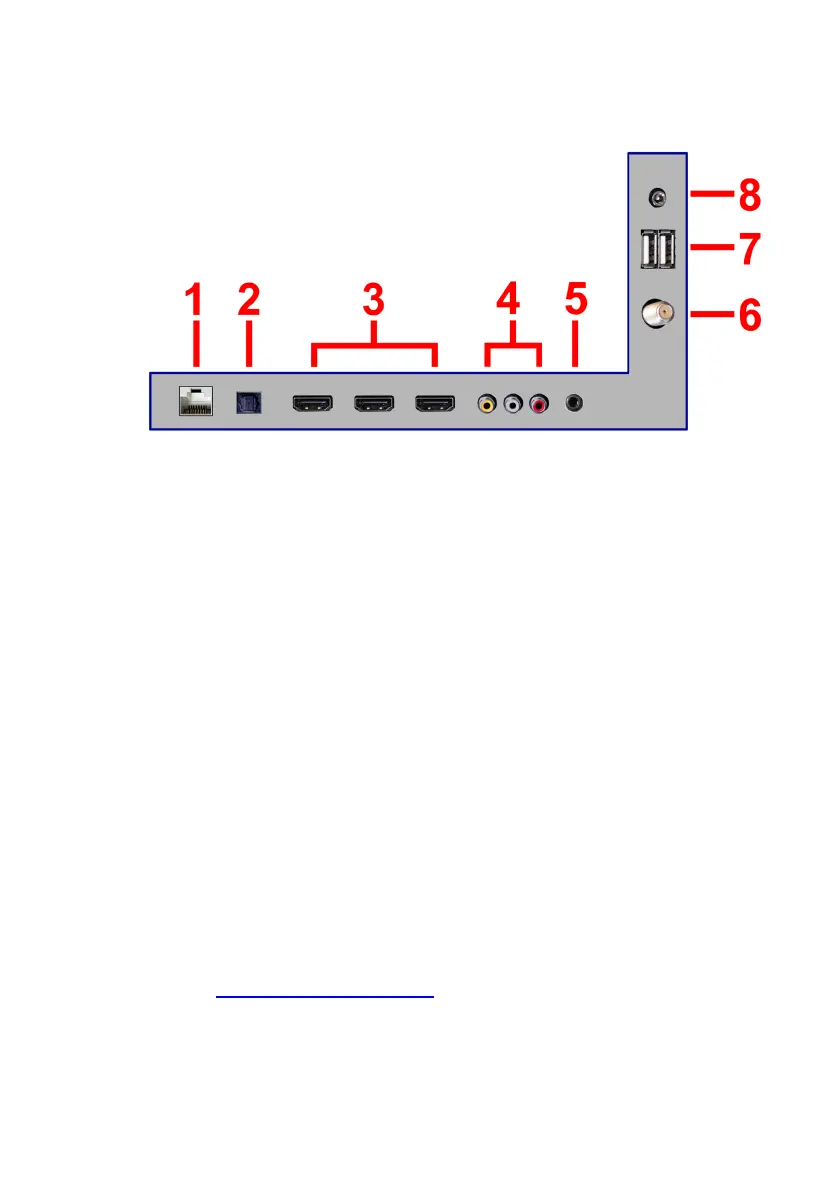

Rear View Connections
1. LAN (INTERNET) – This TV can connect to internet wirelessly.
The LAN connection port is used for wired internet using a
standard Ethernet network cable. This port is 10/100 BASE-T.
2. OPTICAL OUT (SPDIF) - This connection port is used for sending
out digital audio signals to digital surround sound receivers. The
black (Optical SPDIF OUT) connector sends out either bit-stream or
PCM digital sound signal to a home theater receiver with digital
optical input.
3. HDMI 1-3 – HDMI connects to devices that use HDMI cable, such as
Blu-ray or HD DVD player, or HD cable / satellite set-top box. These
connection ports receive pure digital audio and high definition signal
through one single cable. These ports also accept HDCP video
devices for videos. HDMI3 supports ARC.
4. AV – This connection port is for DVD players or satellite / cable set-
top boxes that use composite cables. Connect the yellow head cable
to the yellow port then connect red head to the red port and white
head to the white port for audio. The red / white audio ports are
shared with the source MINI-YPBPR.
5. HEADPHONE – This connection is for headphones to be attached to
the Display.
6. DT – This connection is for analog cable without the cable box or
over-the-airwave antennas. The tuner is a hybrid tuner that tunes to
both analog and digital channels. This connection uses coaxial RF
cable. For over-the airwave digital stations please check
http://www.antennaweb.org
.
7. USB 1&2 – USB connects to USB flash drives for playing music and
picture. The USB port is also used for USB accessories that are
compatible with ANDROID TV.
8. MINI-YPBPR – This connection port is for DVD players or satellite /
