30 Calculate the target superheat
14. Calculate the target superheat
The manifold allows to calculate the target superheat. This test can only be used for split air conditioning systems/
heat pumps with a xed expansion valve. The target superheat value appears on the display as a result of the outdoor
dry bulb temperature (DB) and return air wet bulb temperature (WB).
To calculate this value, outdoor dry bulb temperature (DB) and return air wet bulb temperature (WB) can be
manually entered or measured by temperature probes.
10:09 Menu
Measurements / Tests
Measurement settings
Wireless connection
General settings
Fault tree analysis
Data recording
Device information
>
>
>
>
>
>
>
10:09 Measurements / Tests
>
>
>
>
Target superheat
Delta T
Compressor test
Efciency (COP / CER)
10:09
Auto-Detection
LP
HP
T1
T2
WB Temperature
DB Temperature
Sensor auto-detection in progress...
Internal 1
Internal 2
Wired Port 1
...
...
...
10:09
TSH - R134a
LP
3.63
-1.00
10.00bar -1.00 28.00bar
HP
12.69
2
EV
T1
SH
TSH
13.2 °C
23.6 °C
3.0 K
-1.0 °C
CO
T2
[075]
SC
51.5 °C
24.9 °C
26.6 K
10:09 TSH Cong.
Auto >
Auto >
DB Temperature
WB Temperature
Next
10:09
Auto-Detection
LP
HP
T1
T2
WB Temperature
DB Temperature
Sensor auto-detection complete.
Internal 1
Internal 2
Wired Port 1
[075]
[120]
[123]
2
Before each test it is recommended to zero the pressure sensors in ambient pressure, before connecting
hoses.
It is only possible to zero pressure with less than 0.3 bar pressure measured, to avoid accidental zero.

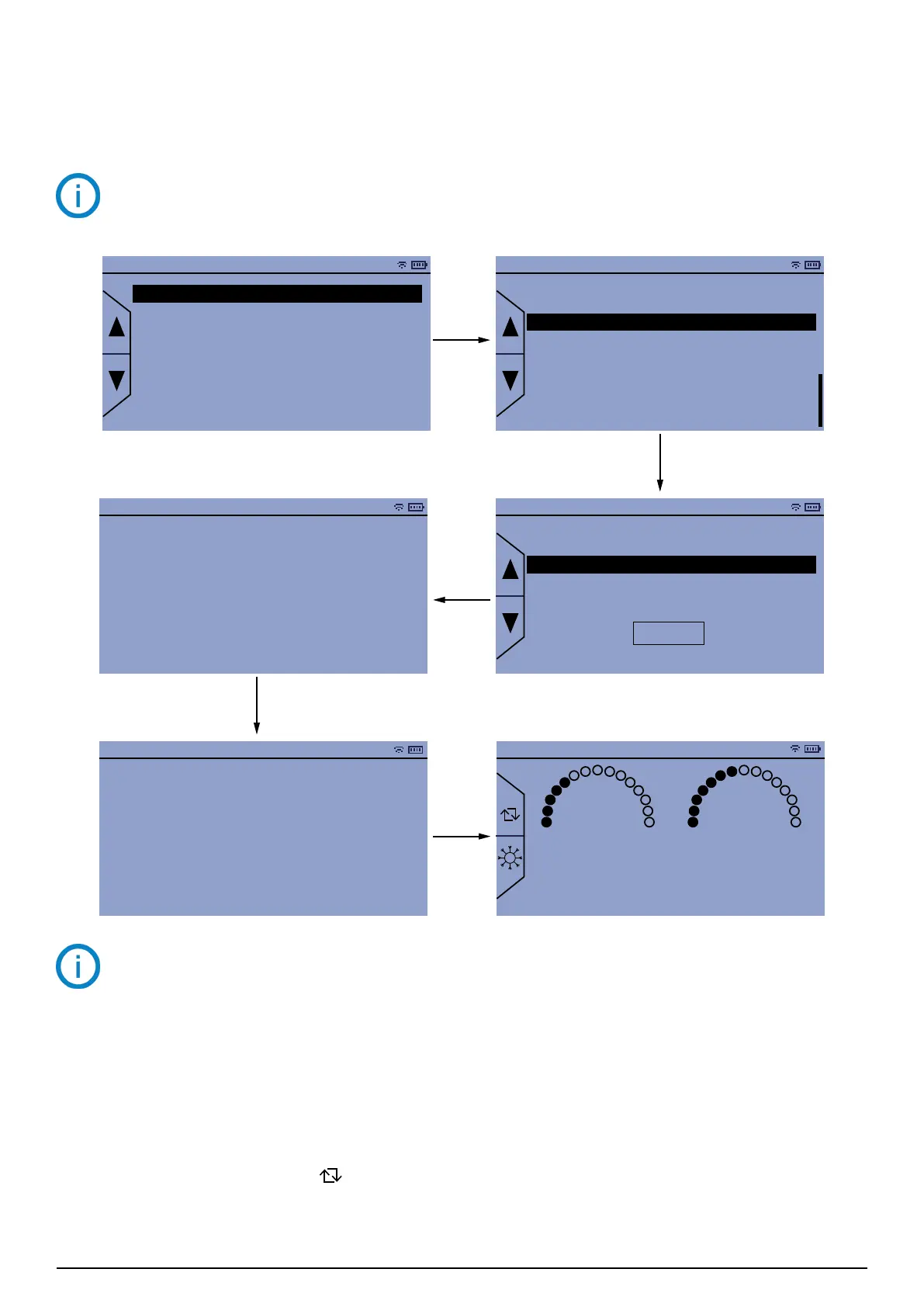

"Measurements / Tests" menu is displayed.
• Press OK on "Target superheat" line.
DB temperature and WB temperatures lines are displayed.
• Press OK to select "Auto" or to enter manually the value.
• Press OK on "NEXT".
• Press OK once the manifold has complete the auto-detection.
• Perform an autozero by pressing
for 3 seconds.
Results are displayed on the manifold screen.
