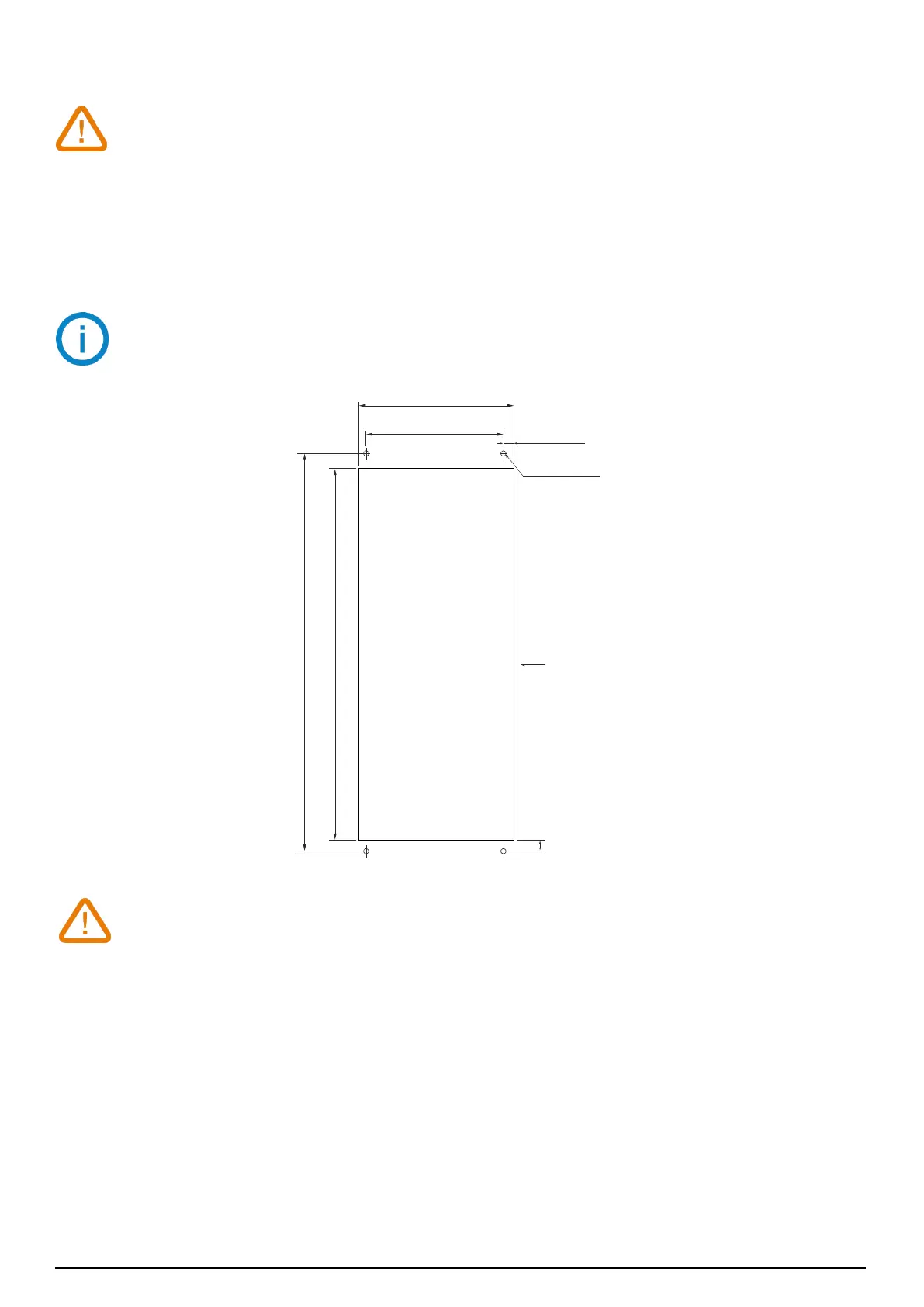

Mounting 9
4. Mounting
The transmitter must be mounted before any wire connections.
The transmitter must not be powered before mounting it.
To install the transmitter on a wall:
• Make a cutting of 200 x 82 mm in the wall.
• Drill 4 holes around the cutting as shown below.
• Insert the transmitter into the wall.
• Fix it with the 4 screws (supplied with the transmitter).
The xing screw is in a plastic bag into the box of the Si-CPE320. Type of screw: Cruciform screw
Ø 3.5 x 12 mm
Ø2.2 mm (0.08’’)
Cut-out depth = 45 mm
(1,77’’)
76 mm (2.99’’)
82 mm (3.23’’)
200 mm (7.87’’)
218 mm (8.58’’)
9 mm (0.35’’)
3 mm (0.12’’)
To ensure a proper isolation of the rear side of the instrument,, use sealant of silicone type between the wall
and the transmitter. If VHP (Vaporized hydrogen peroxide) is used, check that the seal is VHP resistant.
