Please avoid any aggressive solvents. Please protect the transmitter and its probes from any cleaning
product containing formalin, that may be used for cleaning rooms or ducts.

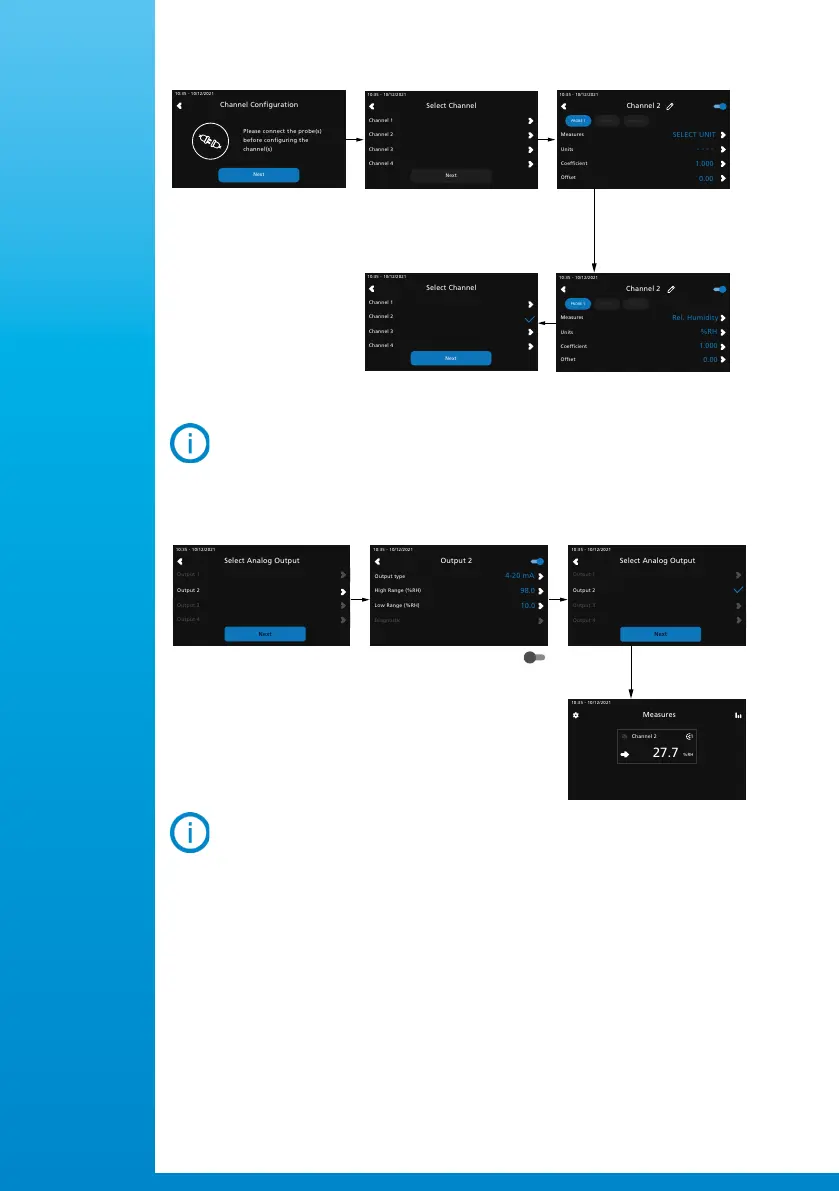

9. Set a channel
Please connect the probe(s)
before conguring the
channel(s)
Channel Conguration
10:35 - 10/12/2021
Next
Connect a probe to set a
channel and tap ‘’Next’’.
Channel 1
Channel 3
Channel 4
Channel 2
10:35 - 10/12/2021
Select Channel
Next
The list of available channel is
displayed.
Tap the required channel.
Select Channels
10:35 - 10/12/2021
Channel 1
Channel 3
Channel 4
Channel 2
Next
Tap ‘’PROBE 1’’, ‘’PROBE
2’’ or ‘’MODULE’’.
Parameters to set are now
available.
10:35 - 10/12/2021
Channel 2
Units
- - - -
Coefcient
Measures
SELECT UNIT
PROBE 1
PROBE 2
MODULE
Offset
Activate the channel taping .
‘’Measures’’, ‘’Units’’, ‘’Coefcient’’ and
‘’Offset’’ are now available.
Set the parameters according
to your needs then tap the
back arrow on the top left.
10:35 - 10/12/2021
Units
Coefcient
Measures
Rel. Humidity
PROBE 1
PROBE 2
MODULE
Channel 2
Offset
%RH
1.000
0.00
Channel 1
Channel 3
Channel 4
Channel 2
10:35 - 10/12/2021
Select Channel
Next
Next
Channel 2 is congured. Tap
next to congure outputs.
1.000
0.00
10. Set an output
Tap the output to set corres-
ponding to the previously
congured channel.
Tap ‘’Next’’ to
display measures.
Next
Output 2
10:35 - 10/12/2021
Select Analog Output
Output 3
Diagnostic
10:35 - 10/12/2021
Output 2
4-20 mA
Output type
High Range (%RH)
Low Range (%RH)
98.0
10.0
Activate the output taping .
Set the output type and high
and low range values then tap
the back arrow on the top left.
Output 1
Output 4
Next
Output 2
10:35 - 10/12/2021
Select Analog Output
Output 3
Output 1
Output 4
Next
10:35 - 10/12/2021
Measures
Channel 2
1
27.7
%RH
11. Maintenance
Please always use the device in accordance with its intended use and within parameters described in the
user manual in order not to compromise the protection ensured by the device.
12. Precautions for use
For models without display, please use the app to set your channel.
For models without display, please use the app to set your output.
