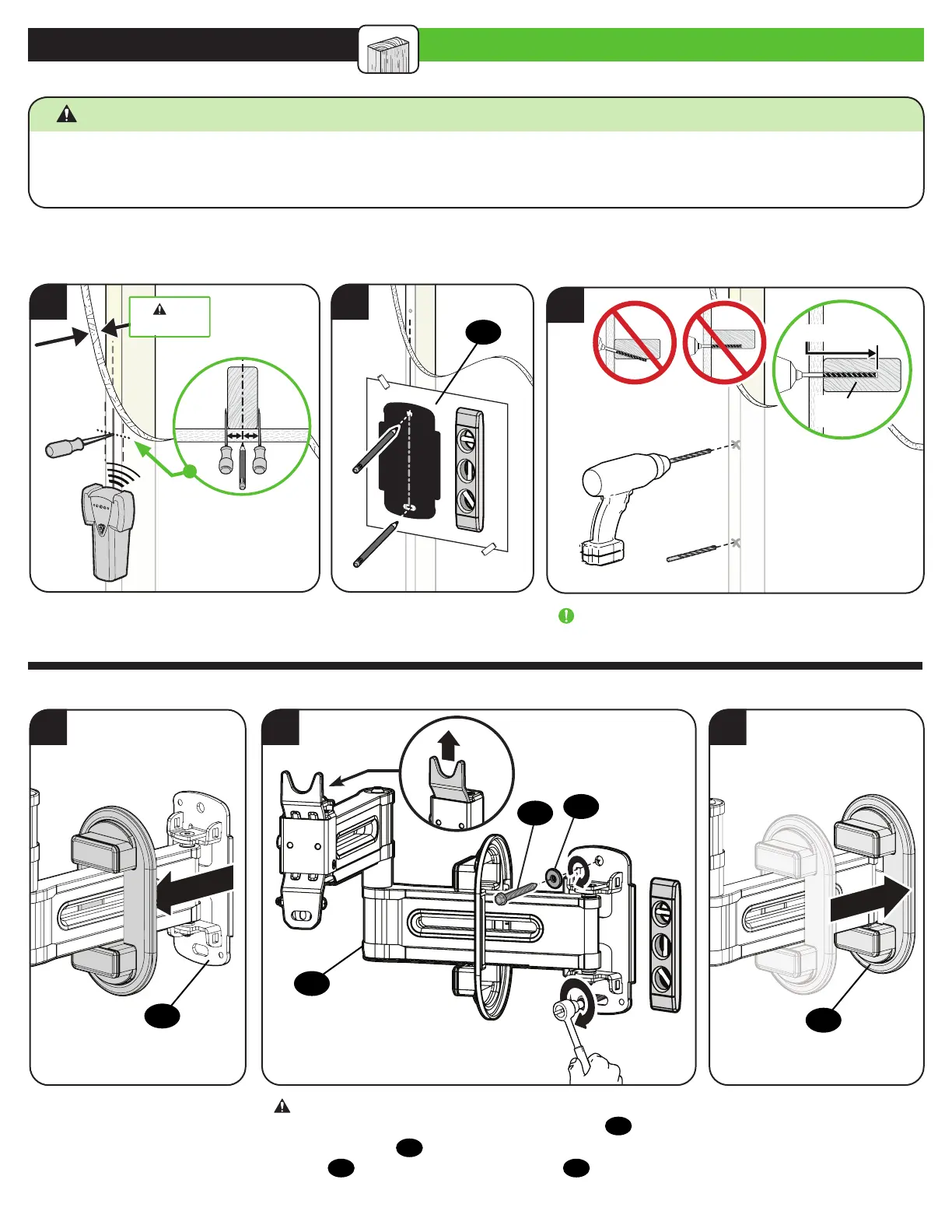

STEP 2A Attach Wall Plate
1
2
Max.
5/8 in. (16 mm)
05
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
● Stud center must be verified
Wood Stud Installation
06
06
06
3
54 6
2 ¾ in. (7 cm)
7/32 in.
(5.5 mm)
IMPORTANT: Be sure to drill into the center of the stud.
CAUTION: Avoid potential personal injury or property damage!
Improper use could reduce the holding power of the lag screw
07
.
Tighten the lag screws
07
only until they are pulled FIRMLY against the
wall plate
06
. DO NOT over-tighten the lag screws
07
.
08
07
Go to STEP 3 on PAGE 8.
