12

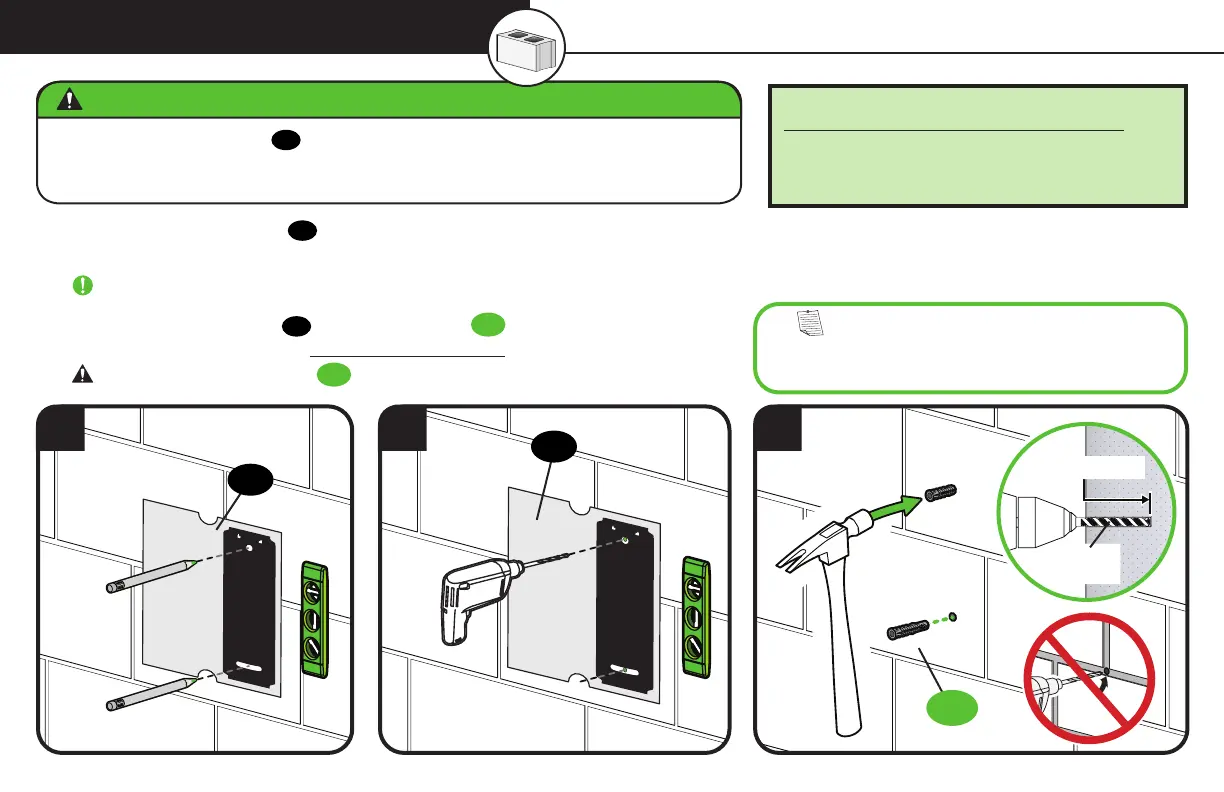

1. Position the wall plate template
07
on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill two pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
3. Remove the wall plate template
07
and insert two anchors
C2
(Fischer UX10 x 60R- included in the Concrete Installation Kit CMK1).
CAUTION: Be sure the anchors
C2
are seated flush with the concrete surface.
THIS
W
AY UP
THIS
WAY UP
STEP 2B Attach Wall Plate
Solid Concrete / Concrete Block Installation
THIS
W
AY UP
THIS
WA
Y UP
2
THIS
W
AY UP
THIS
WA
Y UP
31
NOTE: TV shifts 7/8 in. (21.9 mm) to the right or left
when in the home position. Consider this when selecting the
location of your wall mount.
Concrete Installation Kit CMK1 is not included
Contact Customer Service at 1-855-734-7805 to inquire about
the additional hardware.
CAUTION: Avoid potential personal injury or property damage!
● Mount wall plate assembly
08
directly onto concrete surface (no wall covering)
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
3/8 in.
(10 mm)
3 in. (75 mm)
C2
07
07
