34 _ Disassembly and Reassembly
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
Reassembly

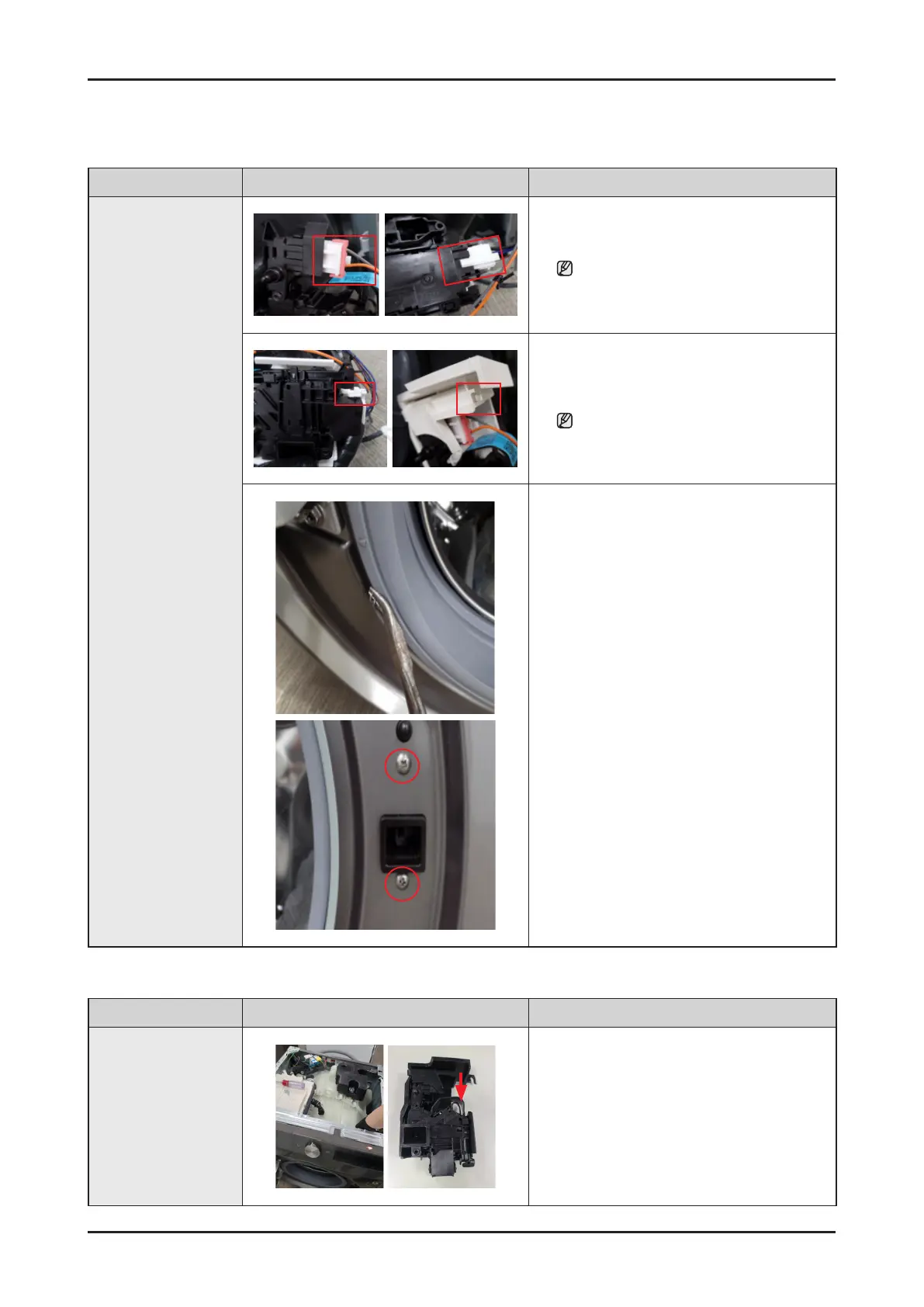

Part Figure Description
Door-Lock S/W
1. Assemble the terminals. (2ea)
Make sure the Wire harness are not getting
stuck in other parts.
2. Assemble the Cover Door Switch by gently
pushing the red box part with hand.
Make sure the Wire harness are not getting
stuck in other parts.
3. Assemble the screws with (+) screw driver. (2ea)
4. Assemble the wire diaphragm and Frame Front.
If the wire diaphragm is loose after assembly
or is not correctly assembled at the correct
position (5 o'clock or 7 o'clock), water leakage
may occur.
How to force open the locked Door
Part Figure Description
Door-Lock S/W
Before you start, disassemble Cover Top rst
1. Put your hand to press the Door-Lock Switch.
(The location you need to press is shown in the
picture with arrow)
