32 _ Disassembly and Reassembly
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
Reassembly
Part Figure Description

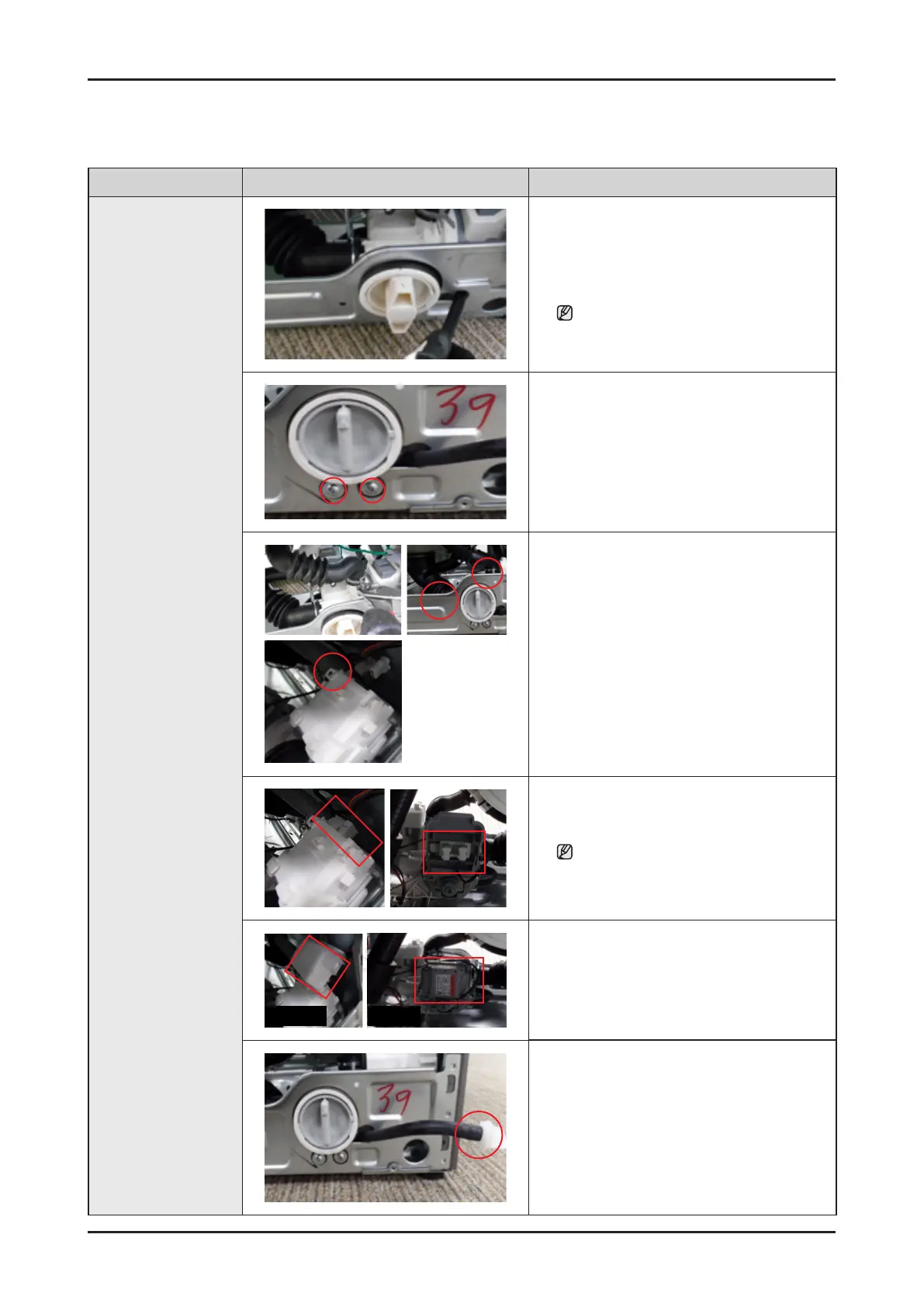

Drain Pump
1. Assemble the pump in the right position as
shown in the picture, pull the drainage hose
towards you.
Be careful not to rip the drainage hose.
2. Assemble 2 screws holding the drain pump
using (+) screw driver.
3. Assemble the Band Ring (3ea) and the hose
(3ea) using long nose pliers.
4. Connect the terminals (2ea) each.
Make sure the Wire harness are not getting
stuck in other parts.
FRONT BACK
5. Assemble the cover on the top and on the back.
6. Assemble the drainage hose.
