Disassembly and Reassembly _ 21
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

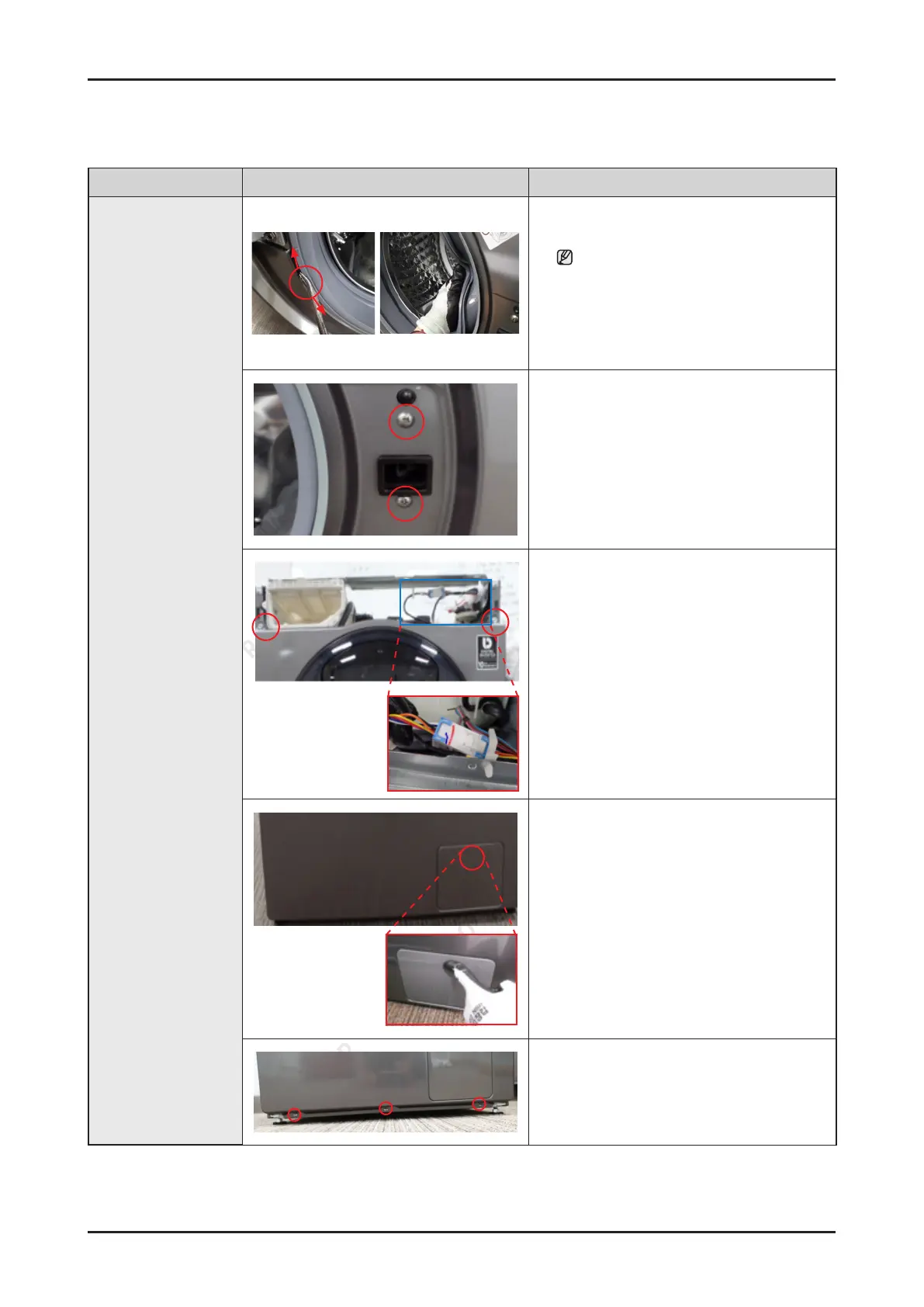

Disassembly
Part Figure Description
Frame Front
Before you start, disassemble Assy Cover Top, Assy
Panel Control.
Be careful not to tear up the diaphragm.
1. Using long nose pliers, pick up one of the
rings on Wire-Diaphragm which connect the
spring and the wire ends. Then, separate the
Wire-Diaphragm from the FRAME-FRONT and
Disconnect the Diaphragm.
2. Remove 2 screws holding the DOOR-LOCK
switch with (+) screw driver.
3. Disassemble the terminal (the blue box is
terminal location) by pressing the blue circle
part and remove 2 screws holding the Frame
Front with (+) screw driver.
4. Press the circled place to open up the cover
lter.
5. Remove 3 screws holding the bottom of the
FRAME-FRONT with (+) screw driver.
