Disassembly and Reassembly _ 11
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

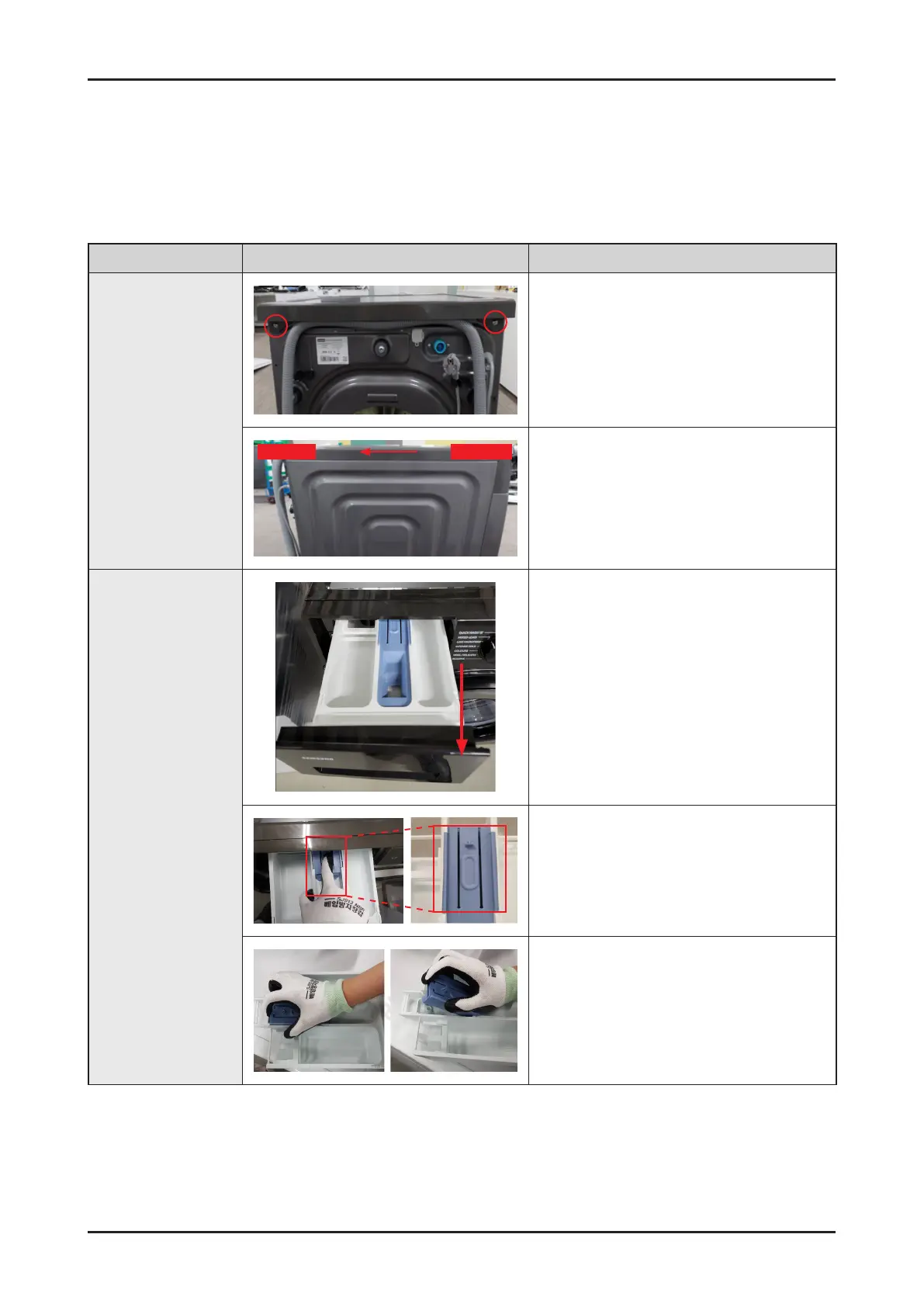

3-2. STANDARD DISASSEMBLY DRAWINGS
► This is a standard disassembly diagram and may differ from the actual product.
Use this material as a reference when disassembling and reassembling the product.
Disassembly
Part Figure Description
Assy Cover Top
1. Remove 2 screws holding the Cover Top at the
back of the unit using (+) screw driver.
BACK
FRONT
2. Remove the Cover Top by lifting it up after
pulling it back about 15mm.
Assy Drawer
1. Open the Drawer by hand
2. While holding down the release lever inside the
drawer (red box), slide open the drawer.
3. Pull up the Cap Rinse to remove it.
