Disassembly and Reassembly _ 23
This Document can not be used without Samsung’s authorization.
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOT COPY OR DISTRIBUTE WITHOUT PERMISSION

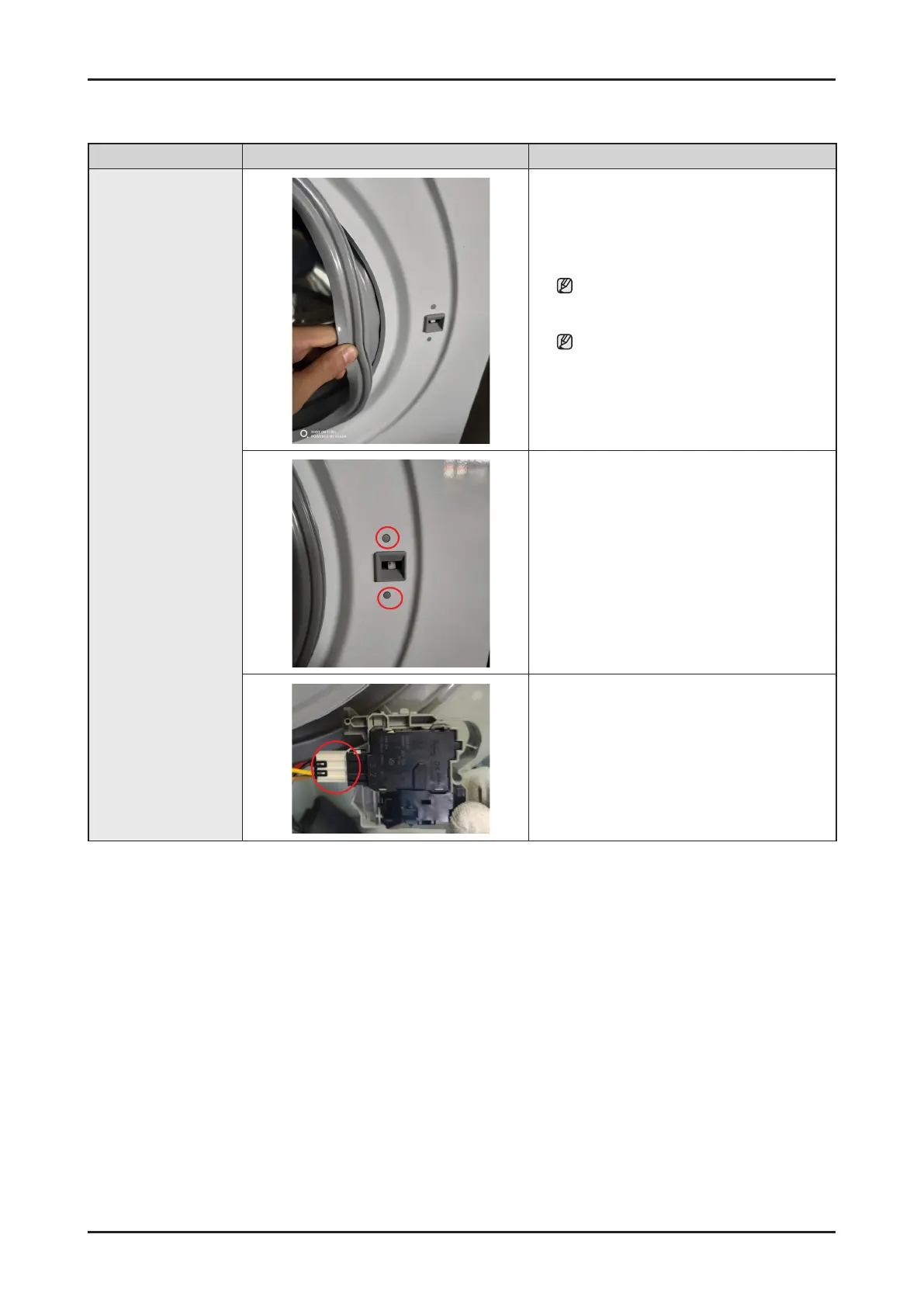

Part Figure Description
Door-Lock S/W
1. Open the Door. Remove the Wire Diaphragm
and remove it from The Front Frame.
For easier disassembly, remove the spring
from the lower part of the Diaphragm with a
(-) screwdriver
Since the Diaphragm can be damaged when
removing it. Use a Longnose plier and
remove it slowly in one direction.
2. You can separate by pressing the marked area.
3. Remove the screw holding the Door-Lock
S/W. Remove the Door-Lock S/W. Remove the
connection wire.
(Remove the connector after releasing it by
pressing the catch.)
