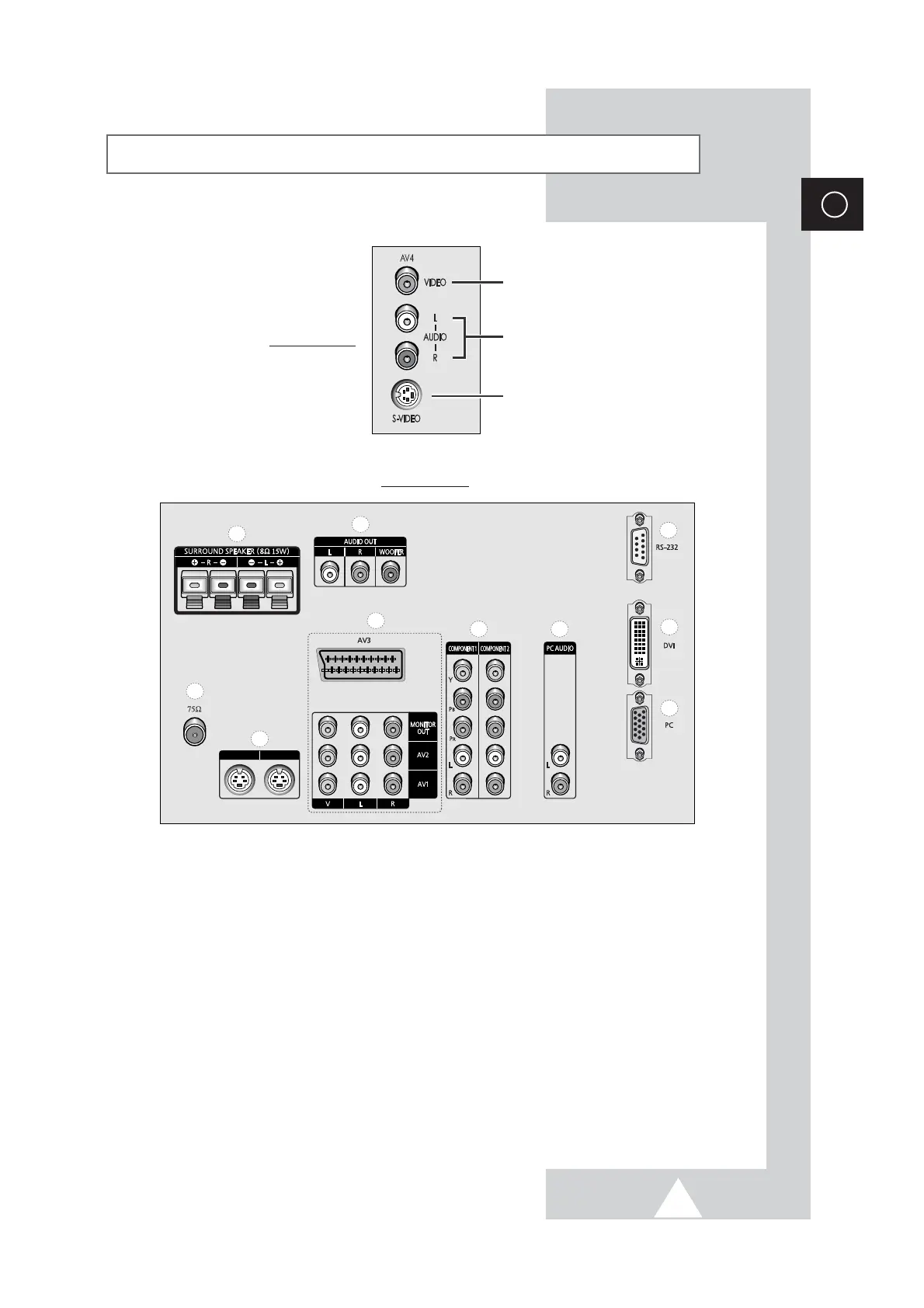

Connection Panel of Your Television
b
a
e
d
f
g
i
j
h
S-VIDEO 1S-VIDEO 1 S-VIDEO 2S-VIDEO 2
c
Video Input
Audio Inputs
S-Video Input
Rear of the TV
7
➣
For further details about connection, refer to pages 42~45.
➢
The actual configuration on your TV may be different, depending on
your model.
a) 75Ω
Coaxial connector for Aerial or Cable
Network.
b) MONITOR OUT / AV1 / AV2 / AV3
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
c) S-VIDEO 1 / S-VIDEO 2
Video input for external devices with an
S-Video output, such as a camcorder or VCR.
d) SURROUND SPEAKER (8Ω 15W)
Connectors for external rear speakers.
e) AUDIO OUT
Amplifier (L/R) or powered speaker (WOOFER)
connection to take full advantage of the
surround sound effect.
f) COMPONENT 1 / COMPONENT 2
Video (Y/PB/PR) and audio (L/R) inputs for
Component. (480i/480p, 576i/576p, 720p,
1080i)
g) PC AUDIO (L/R)
PC or DVI Audio inputs.
h) PC (15 Pin)
PC Video input.
i) DVI (24 Pin)
Video input for device with DVI input.
j) RS-232 (only for service)
S-VIDEO 1 S-VIDEO 2
Side of the TV
