DP Out (S24D60*U / S27D60*U / S32D60*U
models only.)
Select the input signal to output to the next monitor and the output mode to simplify the connection
and control of displaying devices.
―
Before selecting the MST mode for DP Out, make sure that the device supports MST (Daisy Chain)/HBR3
(High Bit Rate). Incorrect settings may lead to black screen or inconsistency between the actual output
mode and the selected output mode. If a black screen occurs, change the DP Out output mode.
―
MST connection guarantees normal operation of up to two monitors, whereas SST connection guarantees
normal operation of up to four monitors.
―
DP Out (MST/SST) connection supports the following models only: S24D60* / S27D60* / S32D60* /
S24D60*U / S27D60*U / S32D60*U. If other monitor models are connected using DP Out (MST/SST), those
monitors may not operate normally.
• MST/SST: A technology used for connection and driving of multi-stream display signals.
‒ MST: Stands for Multi-Stream Transport. Can transport multiple video and audio streams, but
needs the support of both the drive capacity of the graphics card and the resolution of the
monitor.
‒ SST: Stands for Single Stream Transport. Can transport only a combination of a single video
stream and a single audio stream.
• DP Out mode: 4 modes
USB Type-C:MST
USB Type-C:SST
DisplayPort:MST
DisplayPort:SST

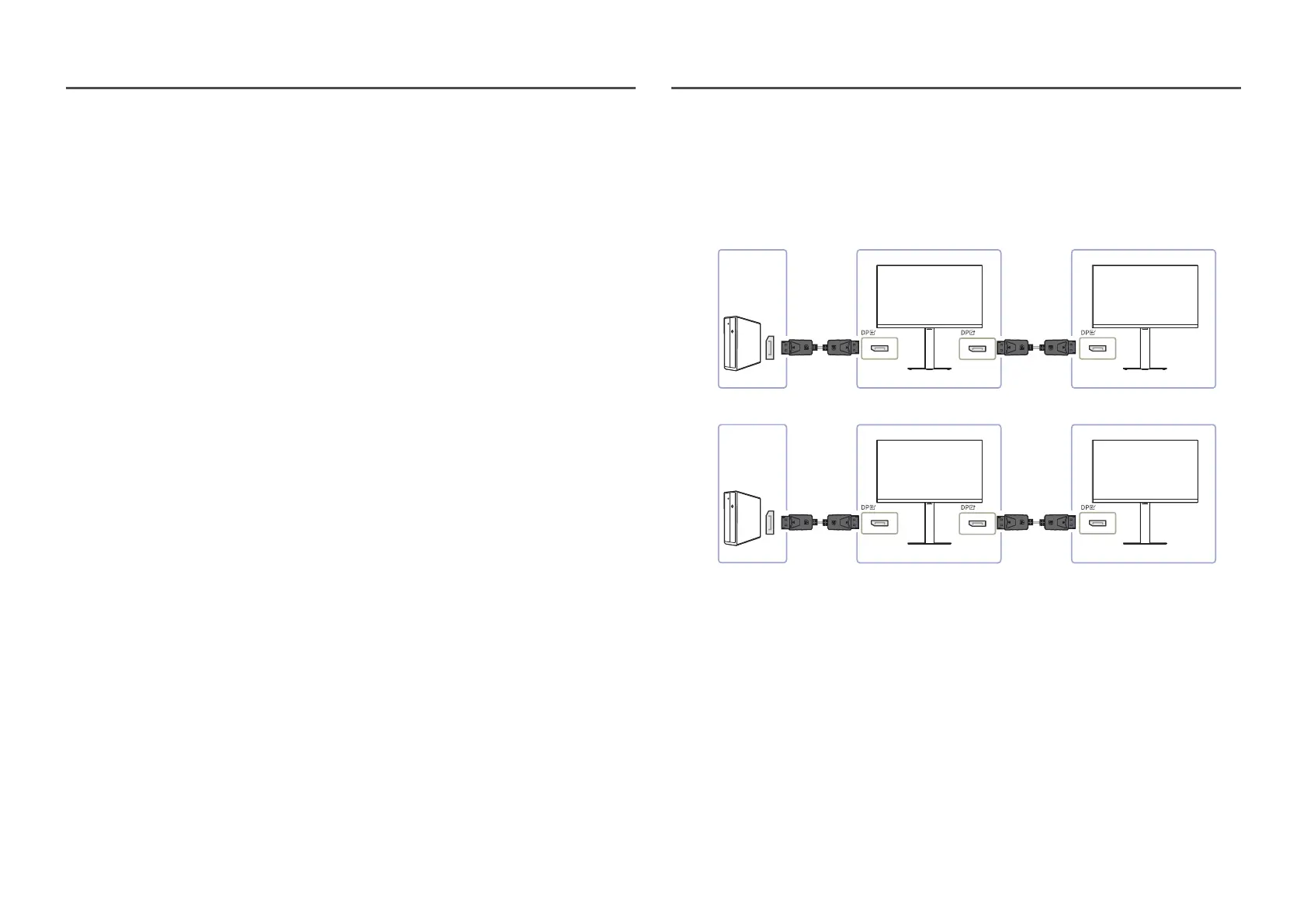

DP Out (MST/SST) Function Implementation
Connecting a PC via DisplayPort
MST
DP Cable DP Cable
PC Monitor 1 Monitor 2
OSD → DisplayPort:MST OSD → DisplayPort:MST
Screen A Screen B
SST
DP Cable DP Cable
PC Monitor 1 Monitor 2
OSD → DisplayPort:SST OSD → DisplayPort:SST
Screen A Screen A
• Make sure that the graphics card supports the MST (Daisy Chain) function. To check this, visit the
website of the graphics card manufacturer.
• The output mode of DP Out varies with the settings of DisplayPort Ver. When DisplayPort Ver. is set
to 1.1, DP Out only supports SST.
• When connecting a PC using DP cable, you must set DP Out mode to "DisplayPort: MST (SST)" on
the OSD menu. (OSD – System – DP Out - DisplayPort:MST/DisplayPort:SST)
• Because of the bandwidth limit of DisplayPort Ver. 1.4, up to two 2560 x 1440 @ 100 Hz monitors
can be connected and used. But this specification may vary depending on the cable used and the
performance of the graphics card.
