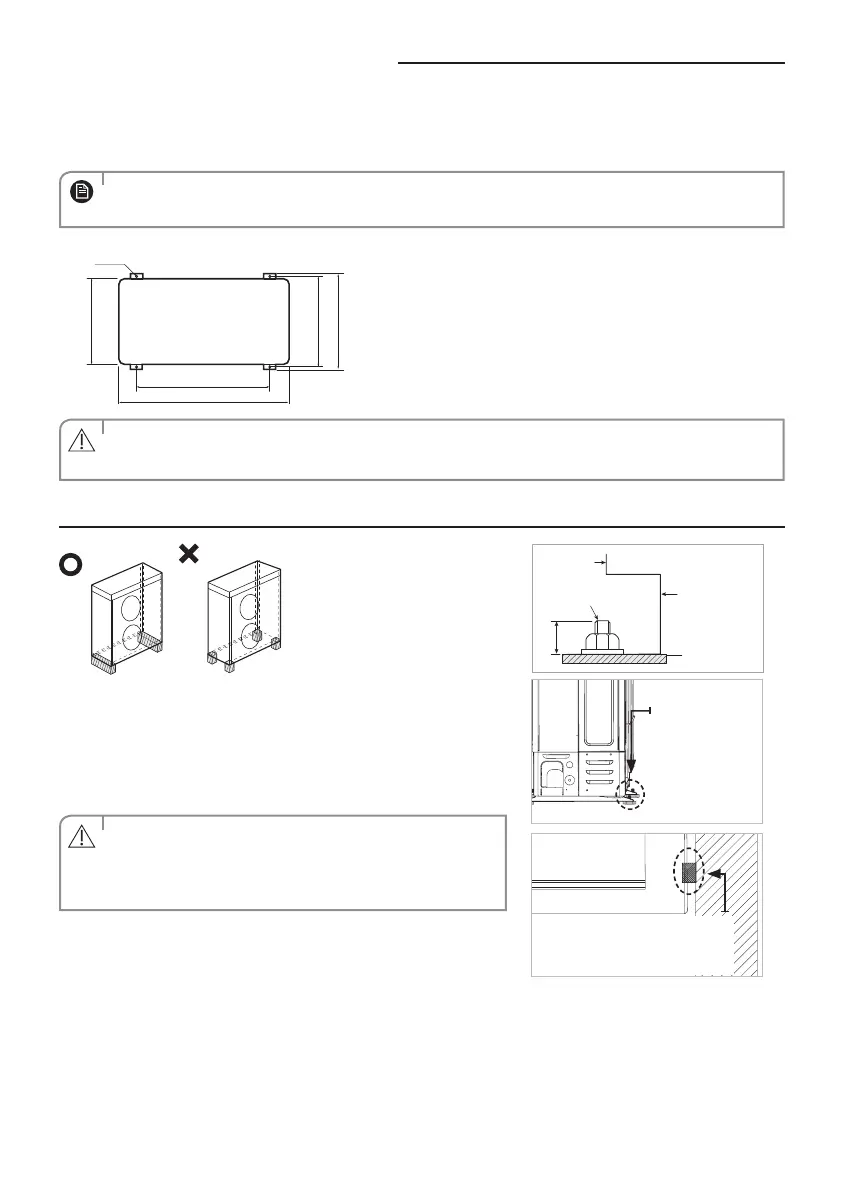

Outdoor unit installation

The outdoor unit must be installed on a rigid and stable base to avoid any increase in the noise level and vibration, particularly if the outdoor unit is

to be installed in a location exposed to strong winds or at a height, the unit must be xed to an appropriate support(wall or ground).

Fix the outdoor unit with anchor bolts.

• The anchor bolt must be 20mm or higher from the base surface.

NOTE

(Unit : mm)

620

940

330

360

384

Anchor bolt hole

• Make a drain outlet around the base for outdoor unit drainage.

• If the outdoor unit is installed on the roof, you have to check the ceiling strength and waterproof the unit.

CAUTION

Outdoor Unit Support

20mm

Anchor bolt

Outdoor

Unit

Base Surface

Outdoor

Unit

Support

Designed to

cut o residual

vibration from

outdoor unit to

rack.

(not supplied with

product)

OUTDOOR UNIT INSTALLED ON THE WALL BY RACK

 Ensure the wall will be able to suspend the weight of rack and outdoor

unit ;

 Install the rack close to the column as much as possible ;

 Install proper grommet in order to reduce noise and residual vibration

transferred by outdoor unit towards wall.

When installing air guide duct

• Check and make sure that screws do not damage the copper

pipe.

• Secure air guide duct on guard fan.

CAUTION

Soft rubber designed to cut o

vibration from rack to wall.

(not supplied with product)

CAC GD-EU_IM_32793A-23_EN.indd 10 2016-05-25 오후 7:08:25
