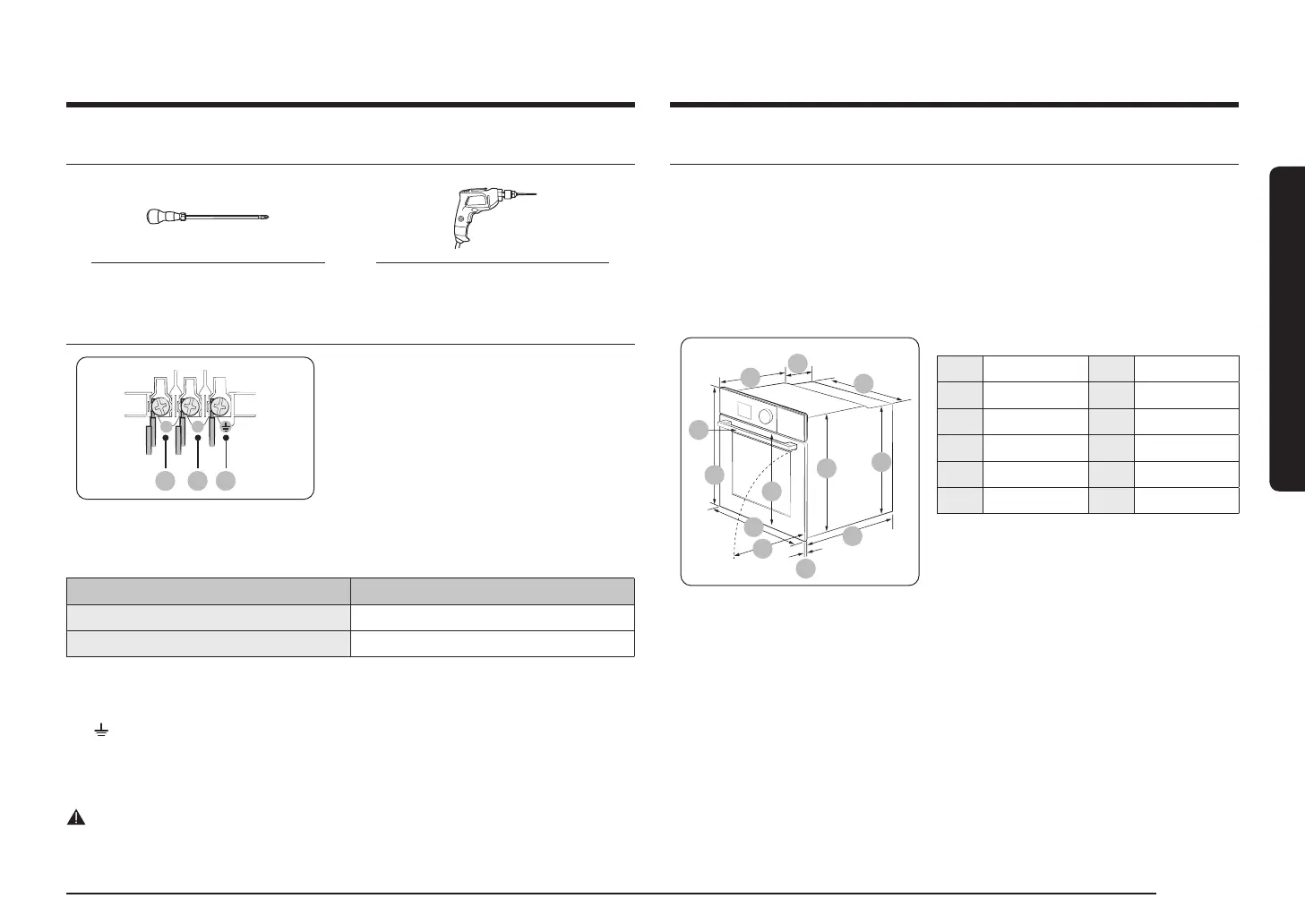

English 7
Installation
Cabinet mount
If installing the oven in a built-in cabinet, the cabinet must have its plastic surfaces and
adhesive parts resistant up to 90 °C. Samsung is not responsible for damage to furniture from
the oven’s heat emission.
The oven must be properly ventilated. For ventilation, leave a gap of about 50 mm between
the lower shelf of the cabinet and the supporting wall. If you install the oven under a cooktop,
follow the cooktop’s installation instructions.
Required dimensions for installation
D
E
C
B
A
L
K
J
I
F
H
G
Oven (mm)
A 560 G 503
B 166 H 481
C 383 I 21
D 45 J 549
E 596 K 579
F 595 L 559
Prepare to install the oven
Phillips Screwdriver Drill
Power connection
01 02 03
L N
01 BROWN or BLACK
02 BLUE or WHITE
03 YELLOW and GREEN
Plug the oven into an electrical socket. If a plug-
type socket is not available due to allowable
current limitations, use a multi-pole isolator
switch (with at least 3 mm spacing in-between)
to meet safety regulations. Use a power cord of
sufficient length that supports the specification
H05 RR-F or H05 VV-F, min. 1.5 ~ 2.5 mm
2
.
Rated current (A) Minimum cross-sectional area
10 < A ≤ 16 1.5 mm
2
16 < A ≤ 25 2.5 mm
2
Check the output specifications on the label attached to the oven.
Open the rear cover of the oven using a screwdriver, and remove the screws on the cord clamp.
Then, connect the power lines to the relevant connection terminals.
The (
)-terminal is designed for earth grounding. First connect the yellow and green lines (earth
grounding), which must be longer than the others. If you use a plug-type socket, the plug must
remain accessible after the oven is installed. Samsung is not responsible for accidents caused by
missing or faulty earth grounding.
WARNING
Do not step on or twist the wires during installation, and keep them away from heat-emitting
parts of the oven.
