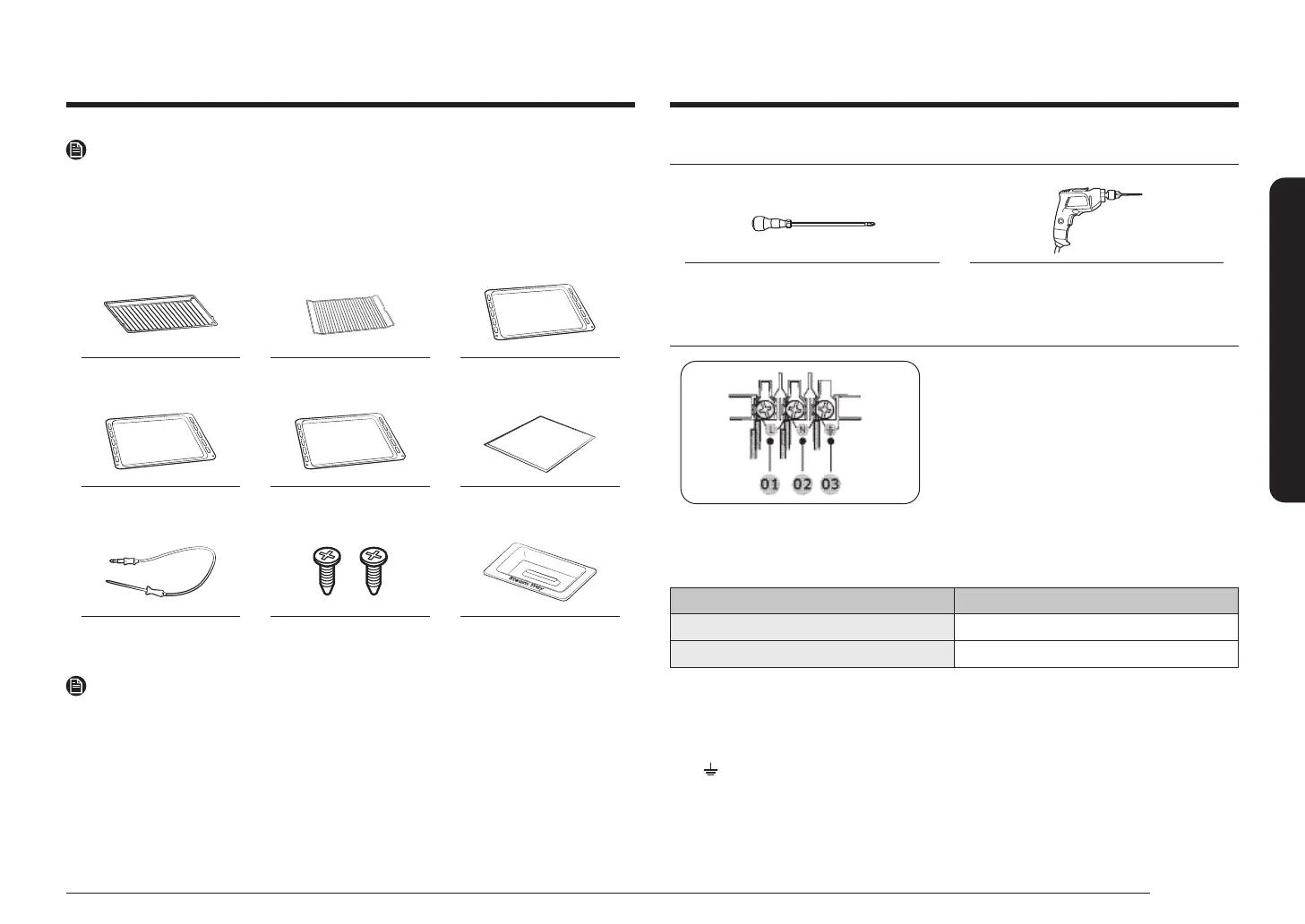

English 7
Installation
NOTE
Depending on the model, this oven comes in two types: single door and dual door.
Accessories
The oven comes with different accessories that help you prepare different types of
food.
Wire rack Wire rack insert * Baking tray *
Universal tray * Extra-deep tray * Divider
Meat probe * 2 Screws (M4 L25) Steam tray *
NOTE
Availability of accessories with an asterisk (*) depends on the oven model.
Prepare to install the oven
Phillips Screwdriver Drill
Power connection
01 BROWN or BLACK
02 BLUE or WHITE
03 YELLOW and GREEN
Plug the oven into an electrical socket. If
a plug-type socket is not available due to
allowable current limitations, use a multi-
pole isolator switch (with at least 3 mm
spacing in-between) in order to meet safety
regulations. Use a power cord of sufcient
length that supports the specication H05
RR-F or H05 VV-F, min. 1.5-2.5 mm².
Rated current(A) Minimum cross-sectional area
10 < A ≤ 16 1.5 mm
2
16 < A ≤ 25 2.5 mm
2
Check the output specications on the label attached to the oven.
Open the rear cover of the oven using a screwdriver, and remove the screws on
the cord clamp. Then, connect the power lines to the relevant connection terminals.
The (
)-terminal is designed for earthgrounding. First connect the yellow
and green lines (earthgrounding), which must be longer than the others. If
you use a plug-type socket, the plug must remain accessible after the oven is
installed. Samsung is not responsible for accidents caused by missing or faulty
earthgrounding.
