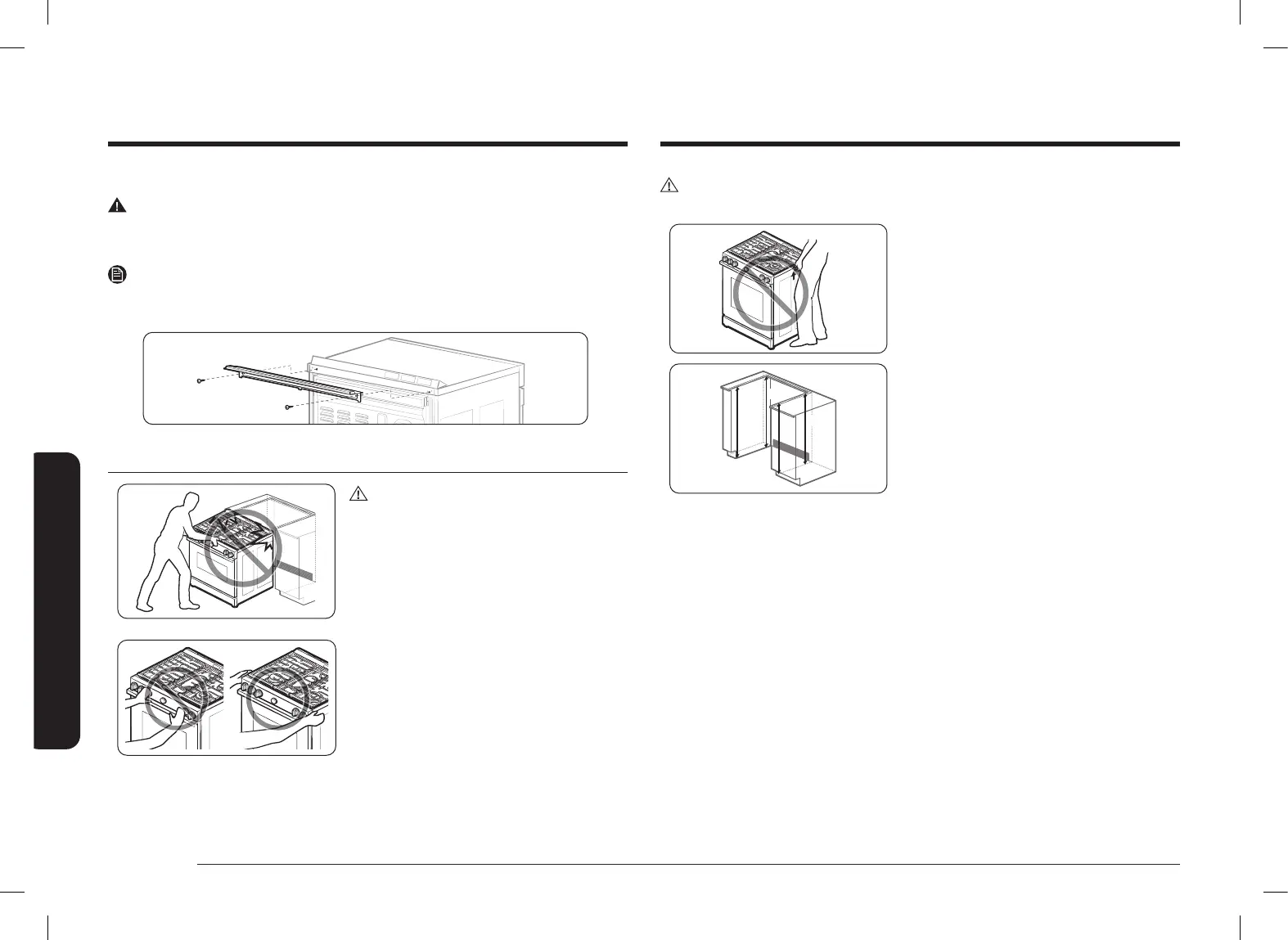

16 English
Installation requirements
Installation requirements
Optional rear
ller
kit
WARNING
Used to ll gap between the range back and wall. Adds a ller strip to the rear of
the range. This kit can only be used when the opening in the countertop is 25" deep.
NOTE
If the countertop depth is greater than 25", there will be a gap between the ller
kit and the back wall.
To avoid breakage
CAUTION
• Please DO NOT push the unit strongly
when you install. These actions can cause
the damage to the unit.
• Please DO NOT push the burner knobs
when installing the range.
(Grasp the L/R door area to push the unit.)
CAUTION
Do NOT lift or handle the unit by the cooktop frame.
Fig. 1
C1
C2
C3
C4
1. The counter top around the cut-out
should be at and leveled (See hatched
area on Fig. 1).
2. Before installing the unit, measure the
heights of the two cabinet sides (C1
~
C4),
front and back (See Fig. 1) from the oor
to the top of the counter.
3. Level the range using the four leveling
legs so that the height from the oor
to the underside of the cooktop frame
is greater than the tallest cabinet
measurement by at least
1
/
16
".
4. Slide the unit into the cabinet (DO NOT
PUSH THE UNIT HARD). Make sure the
center of the unit aligns with the center
of the cabinet cut-out.
