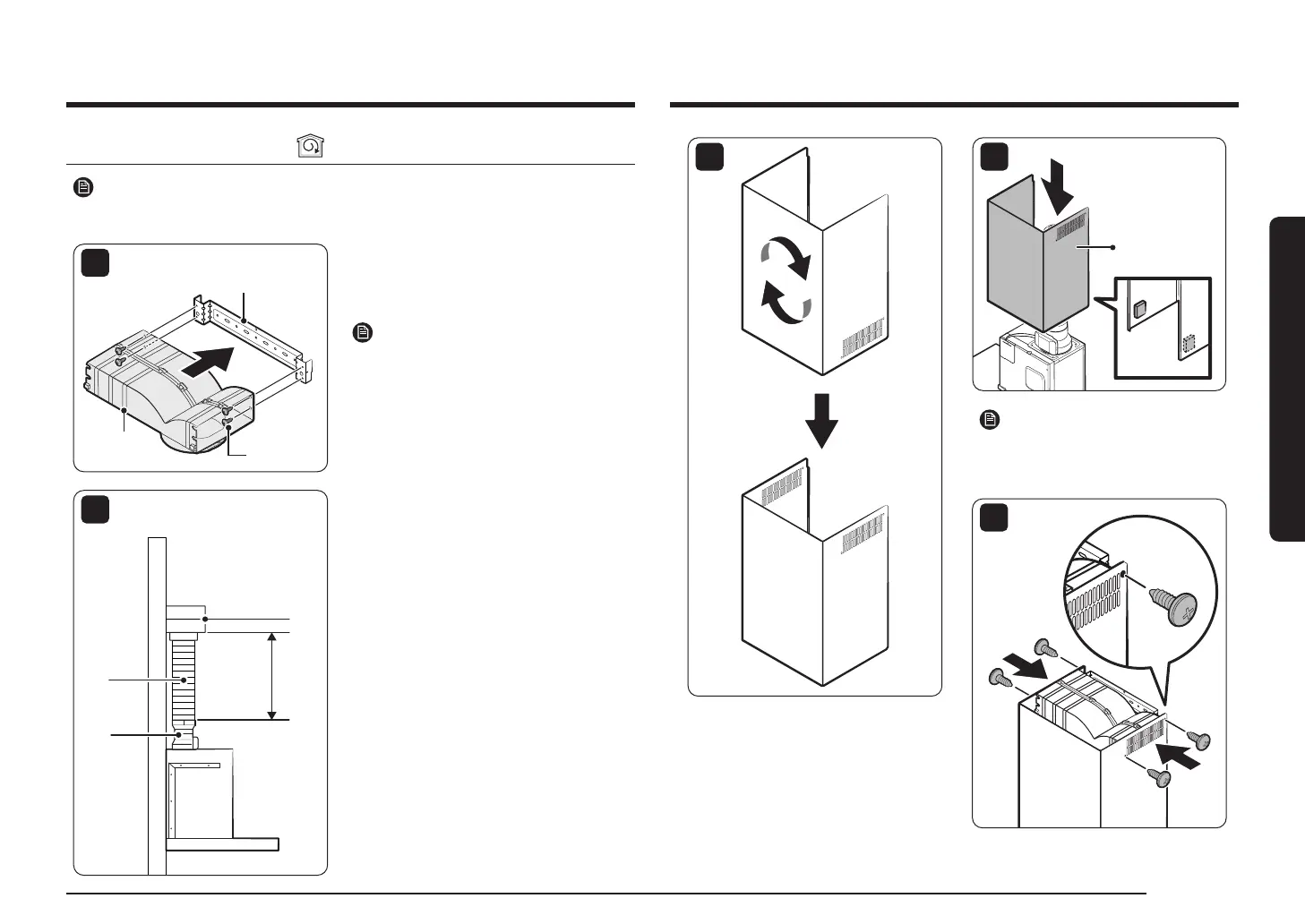

English 15English 15
Installation
3
4
Upper Duct
NOTE
Magnets are included in the accessory
box.
5
10 mm
Hood Fixing
Screw (4 pcs.)
Installing the Recirculation Kit
NOTE
Same process until No. 10
1
Duct Cover Mounting
Bracket
Defletor
Assembly
Screws
• Assemble the air deflector with the duct cover
mounting bracket with the four assembly
screws provided with the Recirculation Kit.
NOTE
• Use of recirculation type hoods in closed
spaces may cause poor ventilation
performance.
• Please ventilate the room by opening the
windows while operating the device.
B
A
D
C
2
• Measure from the bottom of the deflector to
the bottom of the hood outlet.
• Cut the duct to the measured size “X."
• Remove the deflector.
• Slide the duct onto the bottom of the
deflector.
• Place the assembled deflector and duct over
the exhaust outlet from the hood.
• Reassemble the air deflector to the duct cover
mounting bracket with the four assembly
screws.
• Seal the connections with tape.
