English 11English 11
Installation Requirements
Making a hole in the furniture

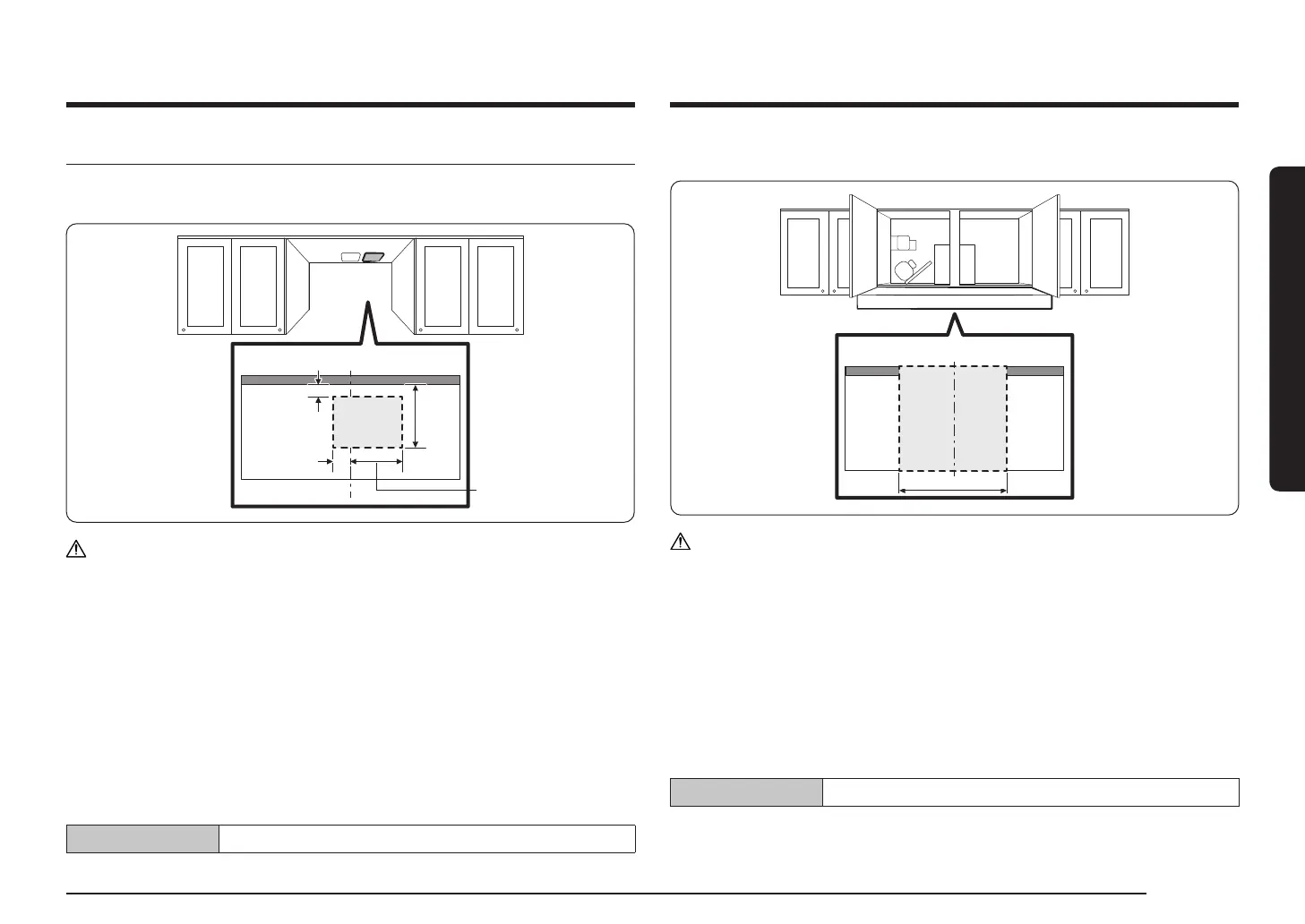

Duct hole guide_Op.1
Cabinet floor drilling work: hood exhaust outlet (damper) cutting work
Rear (Wall)
Front
Duct
Hole
Furniture's Center Line
Max 0.5 cm
Min
22.0 cm
Min 16.0 cm
Max 17.0 cm
Min 2.0 cm
CAUTION
• Cut the cabinet in a way that does not interfere with the damper outlet.
• After assembling the duct cover, make sure that the cut surface of the cabinet is not exposed.
(The hole size must be smaller than the duct cover.)
• Vacuum the sawdust to prevent it from blowing away.
• Make sure the cabinets are not damaged.
• Before cutting the cabinet, explain to the customer that the cabinet needs to be cut, and then
obtain consent before proceeding.
Method and sequence of cutting the upper cabinets
1.
Refer to the cutting dimensions above and mark the lines to be cut on the cabinet.
2.
Use a jigsaw to cut the upper cabinets. When cutting, use a vacuum cleaner to minimize the
amount of dust.
Installation Tool Jigsaw
Duct hole guide_Op.2
Cabinet floor drilling work: hood exhaust outlet (damper) cutting work
Rear (Wall)
Front
Furniture's Center Line
Cutting Area
34.0 cm
CAUTION
• Cut the cabinet in a way that does not interfere with the damper outlet.
• Vacuum the sawdust to prevent it from blowing away.
• Make sure the cabinets are not damaged.
• Before cutting the cabinet, explain to the customer that the cabinet needs to be cut, and then
obtain consent before proceeding.
Method and sequence of cutting the upper cabinets
1.
Refer to the cutting dimensions above and mark the lines to be cut on the cabinet.
2.
Use a jigsaw to cut the upper cabinets. When cutting, use a vacuum cleaner to minimize the
amount of dust.
Installation Tool Jigsaw, Grinder
