8
English

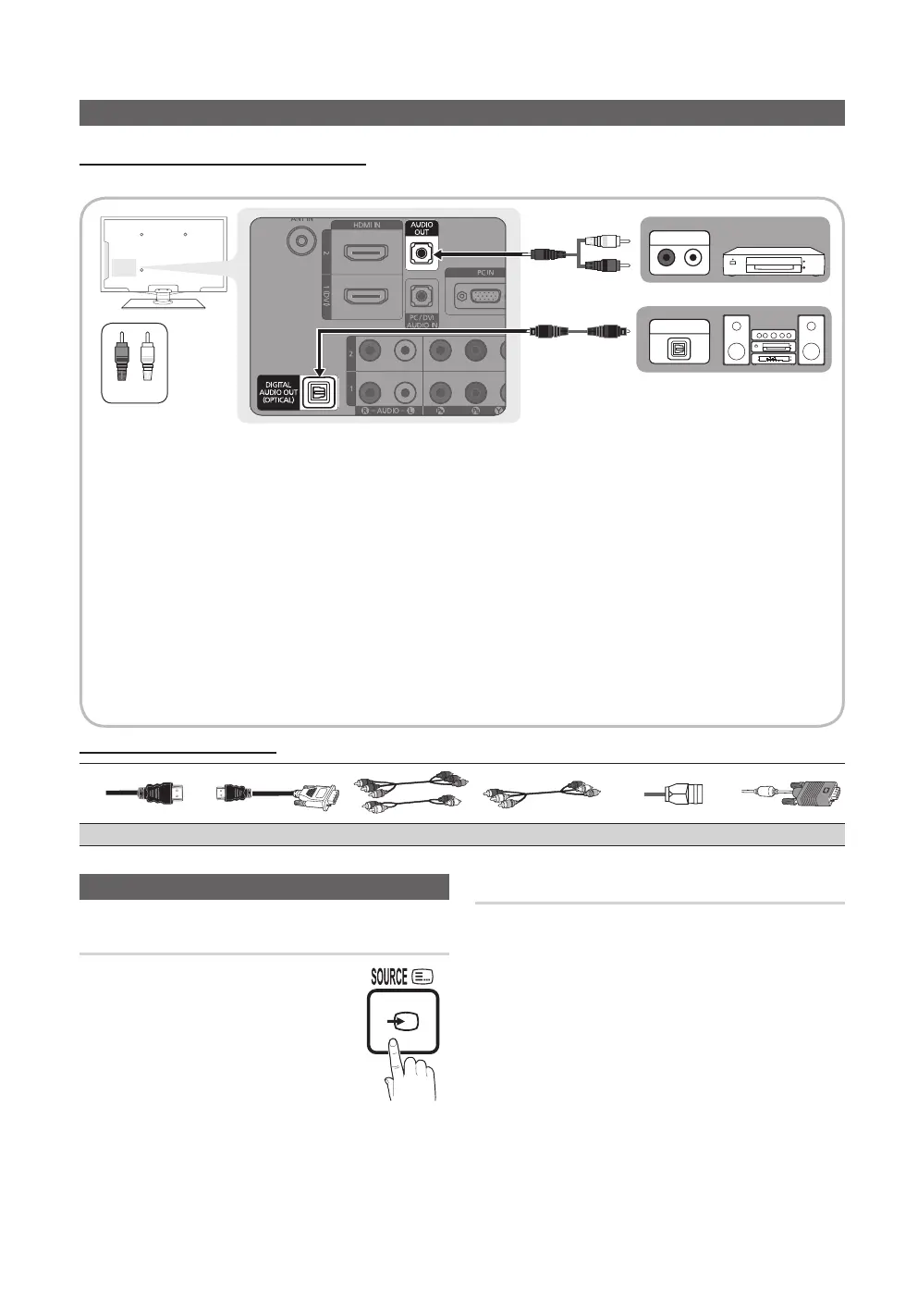

Connections
Connecting to an Audio Device
Using an Optical or Audio Cable Connection
Available devices: digital audio system, amplifier, DVD home theatre
DIGITAL AUDIO OUT (OPTICAL)
✎
When a digital audio system is connected to the
x
DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (home theatre) is set to on, you can hear sound output from the TV’s
x
optical jack. When the
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to
hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theatre.
AUDIO OUT
✎
: Connects to the audio input jacks on your amplifier/home theatre.
When connecting, use the appropriate connector (sold separately).
x
When an audio amplifier is connected to the
x
AUDIO OUT jacks: Decrease the volume of the TV and adjust the
volume level with the amplifier’s volume control.
Input Cables (Sold Separately)
HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA
Changing the Input Source
Source List
Use to select TV or other external input
sources such as DVD / Blu-ray players /
cable box / STB satellite receiver connected
to the TV.
TV / AV1 / AV2 / Component1 / ■
Component2 / PC / HDMI1/DVI /
HDMI2 / HDMI3 / USB
In the
✎
Source List, connected
inputs will be highlighted.
PC
✎
always stay activated.
Edit Name
VCR / DVD / Cable STB / Satellite STB / PVR STB / ■
AV Receiver / Game / Camcorder / PC / DVI PC /
DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:
Name the device connected to the input jacks to make
your input source selection easier.
When a PC with a resolution of 1920 x 1080 @
✎
60Hz is connected to the HDMI IN 1(DVI) port,
you should set to DVI PC mode under Edit Name.
When connecting an HDMI/DVI cable to the
✎
HDMI IN 1(DVI) port, you should set to DVI PC or
DVI Devices mode under Edit Name.
W R
DVD
R-AUDIO-L
P
R PB G
AUDIO IN
R-AUDIO-L
P
R PB G
OPTICAL
Red White
W W
B
G
RR
W
Y
P
POWER
MEDIA.P
SLEEP
DUAL
I-II
TOOLS
E.SAVING
CHLIST
BN68-02594A_NEW.indb 8 2010-02-24 �� 10:57:05
