0 DATA
– Used to support data communication between the TV and the SBB.
– The TV jack type is RJ-12.
! LAN: Connect to a wired LAN using CAT 5 cable.
@ VARIABLE AUDIO OUT: Used for the audio output to the Bathroom speaker. Connect the Bathroom Wall Box and the
Variable port.
# VOL-CTRL: Used to control the volume of the Bathroom speaker. Connect the Bathroom Wall Box and the VOL-CTRL
port.
$ USB (HDD/1.0A) / CLONING , USB (HDD 5V 1A)
– Connector for software upgrades and My Downloads, etc.
– Service connection.
% HDMI IN 1(ARC), 2(DVI), 3: Connects to the HDMI jack of a device with an HDMI output.
✎
No sound connection is needed for an HDMI to HDMI connection.
✎
Use the HDMI IN 2(DVI) jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI
adapter (DVI to HDMI) for video connection and the PC/DVI AUDIO IN jacks for audio.
^ ANT IN(AIR/CABLE): To view television channels correctly, a signal must be received by the set from one of the following
sources: An outdoor antenna; A cable television network;
Caution of the cover-jack
[ CAUTION
The cover-jack is for use by qualified service personnel only.
To reduce the risk of electric shock or fire hazard, do not use the cover jack, unless you are qualified to do so.

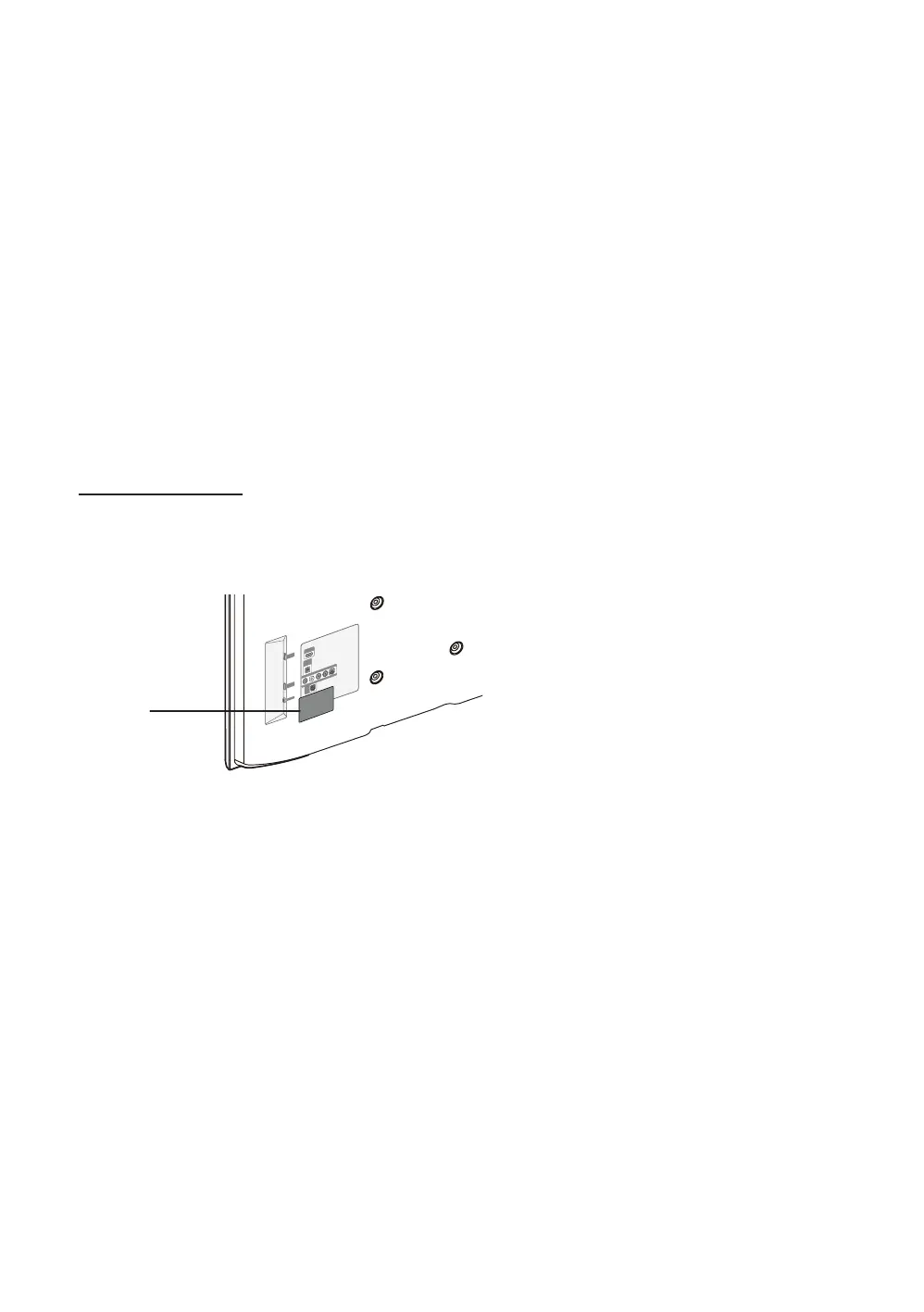

TV Rear Panel
Cover-jack
✎
The rear panel may differ depending on the model.
