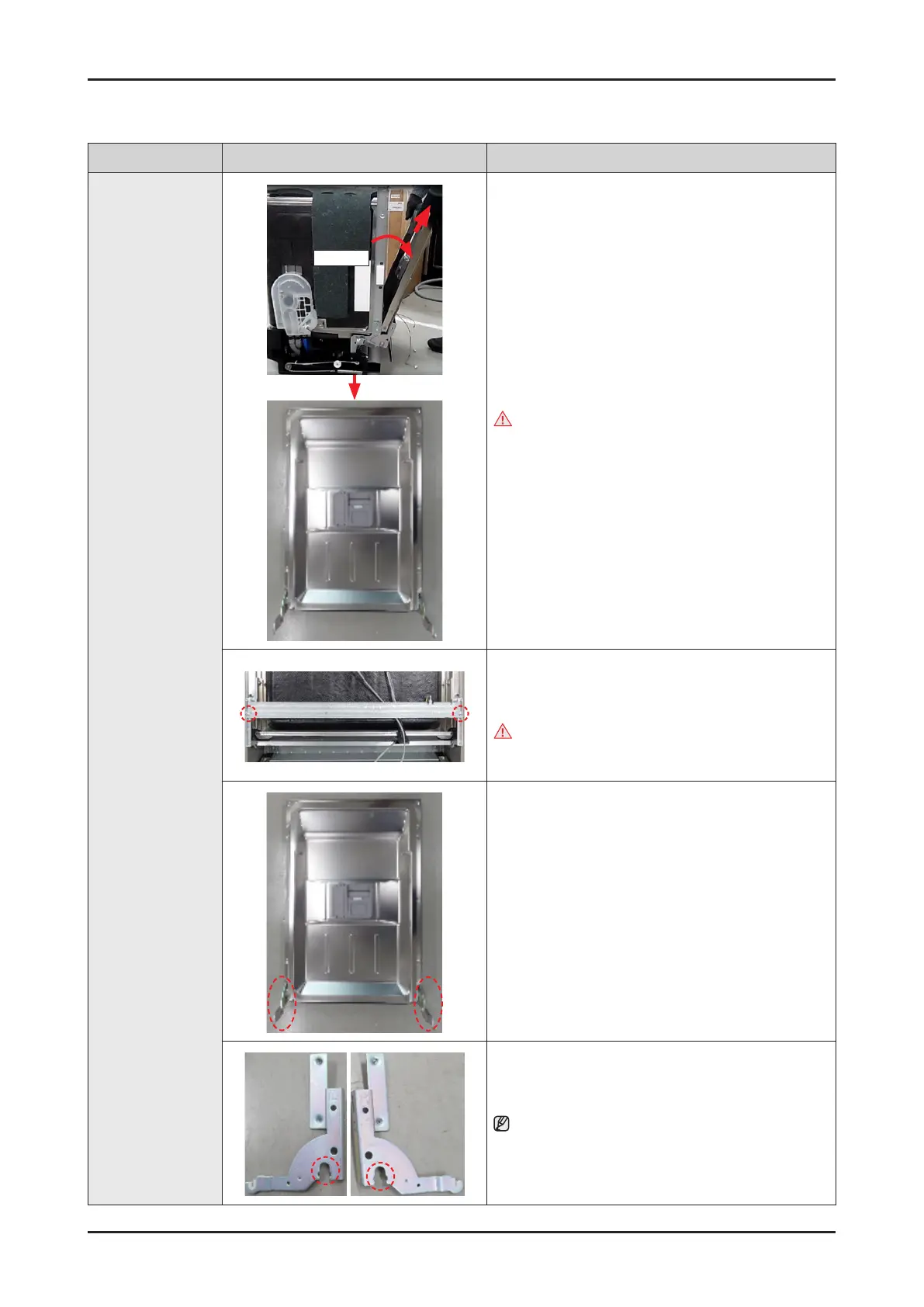

Standard Disassembly Drawings _ 9
Part Figure Description
DOOR HINGE
About 15˚
7. Do same work at the opposite side, and pull out the DOOR
INNER assembly to the direction of about 15˚.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
8. Remove 2 screws to take off BRACKET DOOR FRAME
from the DOOR INNER.
- Screws: DD81-02728A / 2 pcs
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
9. Remove 2 screw at each side to take off DOOR HINGE
from the DOOR INNER.
- Screws: DD81-02764A / 4 pcs
10. Take off the GUIDE HINGE from the DOOR HINGE.
NOTE :
DOOR HINGE and GUIDE HINGE will serviced to
assembly only.
