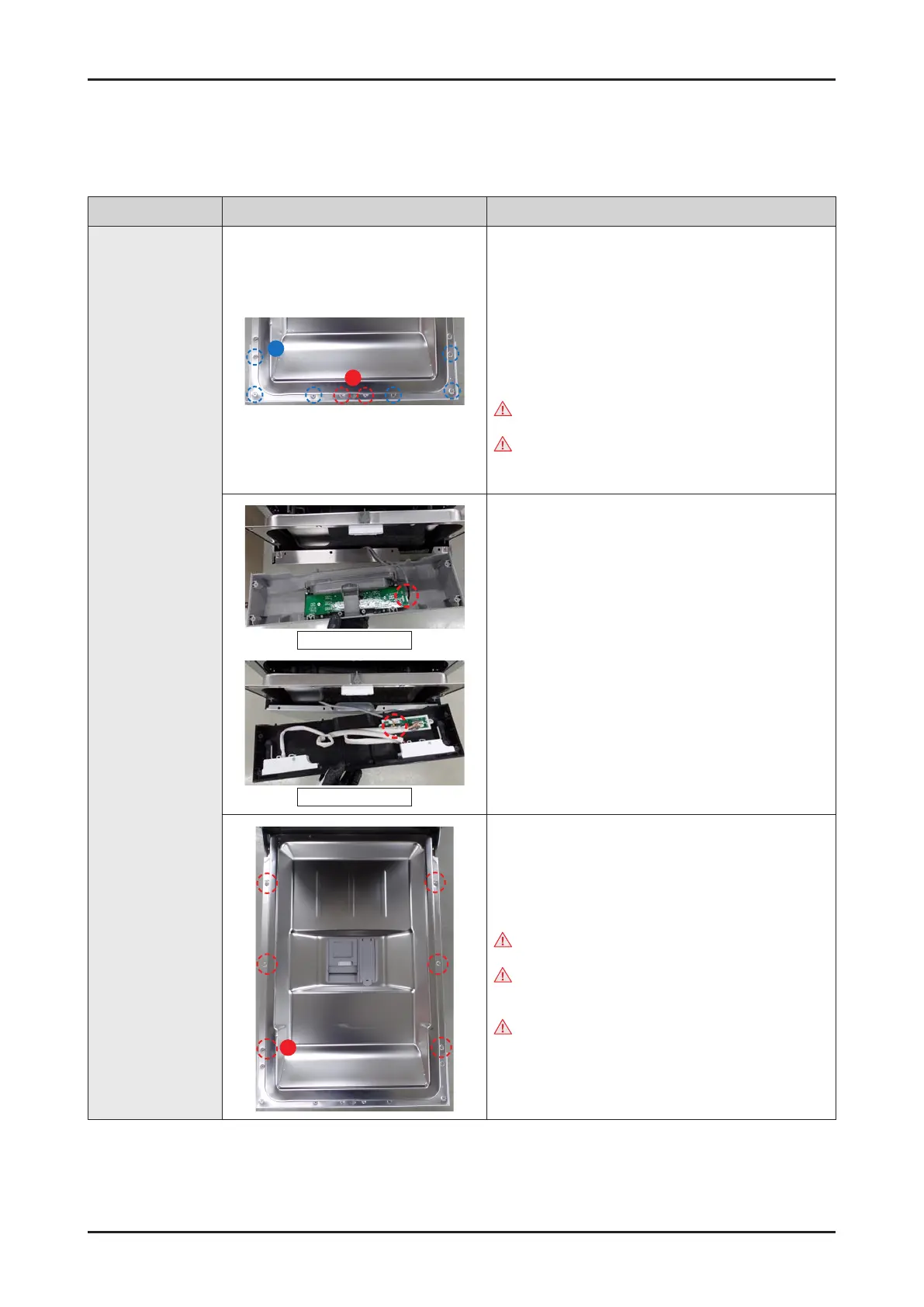

Standard Disassembly Drawings _ 7
2-3. DOOR HINGE
- Door Hinge : DD82-01675A, DD82-01676A / SVC ASSY-HINGE-RIGHT, SVC ASSY-HINGE-LEFT
Part Figure Description
DOOR HINGE
B
A
[DISASSEMBLY]
PREPARATION: Remove SIDE PANEL Left & Right refer to
the section of ‘CAP CASE BRAKE / GASKET
BRAKE’.
1. Remove 8 screws xing the ASSY CONTROL PANEL with
Torx® T15 screwdriver.
- Type A: DD81-02756A / 2 pcs
- Type B: DD81-02758A / 6 pcs
Warning
Be sure to remove the power plug before servicing.
Caution
The screws can fall into the SUMP after disassembly. Keep
the screws to other place to reassemble the DOOR.
DW50DG4**F*
DW50DG4**B*
2. Remove wire connector that connect Main PBA to Sub
PBA.
C
3. Remove 6 screws to take off DOOR OUTER with Torx® T15
screwdriver.
- Type C: DD81-02757A / 6 pcs
Warning
Be sure to remove the power plug before servicing.
Caution
Be careful to avoid injury when the DOOR is closed after
remove DOOR OUTER.
Caution
The screws can fall into the SUMP after disassembly. Keep
the screws to other place to reassemble the DOOR.
