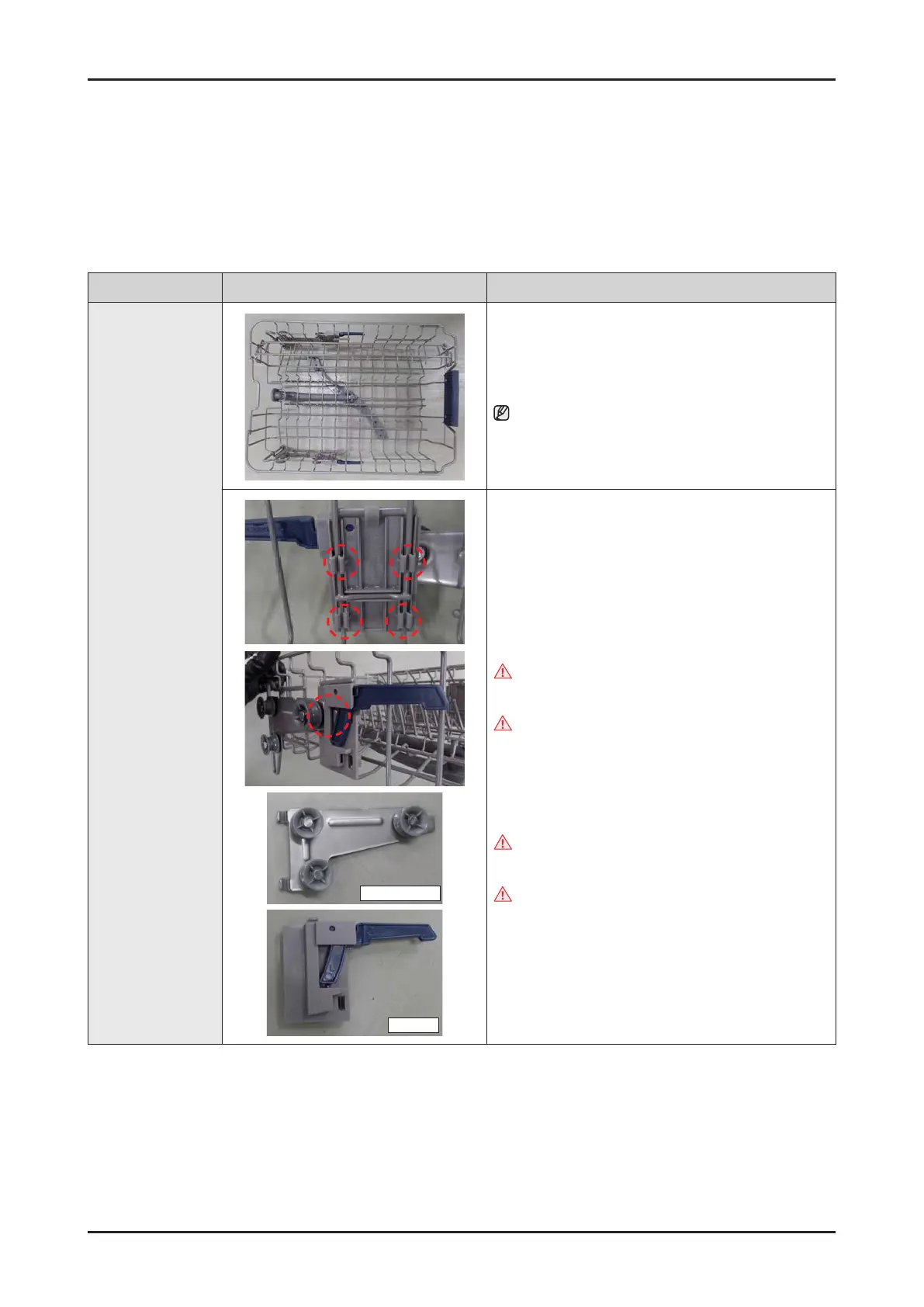

22 _ Standard Disassembly Drawings
2-9. BASKET MIDDLE / ASSY ADJUSTER / BRACKET ADJUSTER
- Basket Middle : DD82-02244* / SVC ASSY-BASKET MIDDLE (DW50DG4**F*/DW50DG45*B*)
DD82-02256* / SVC ASSY-BASKET MIDDLE (DW50DG43*B*)
- Assy Adjuster : DD82-01719A, DD82-01720A / SVC ASSY-ADJUSTER-L, R (DW50DG4**B*, DW50DG4**F*)
- Bracket Adjuster : DD82-01717A, DD82-01718A / SVC ASSY-BRACKET ADJUSTER-LEFT, RIGHT
(DW50DG4**B*, DW50DG4**F*)
Part Figure Description
BASKET MIDDLE /
ASSY ADJUSTER /
BRACKET ADJUSTER
[DISASSEMBLY]
1. Open the dishwasher’s DOOR, and take off the BASKET
MIDDLE.
NOTE :
Please refer to the section of ‘ASSY ROTOR MIDDLE’ for
disassembly of rotor middle.
Bracket Adjuster
Adjuster
2. Release 4 hooks of ASSY ADJUSTER (at each side) to
release them from the BASKET MIDDLE.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
Caution
Be careful not to break the hooks.
[ASSEMBLY]
1. Assemble the BASKET MIDDLE with ADJUSTER and
BRACKET ADJUSTER together.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
Caution
Be careful not to break the hooks.
