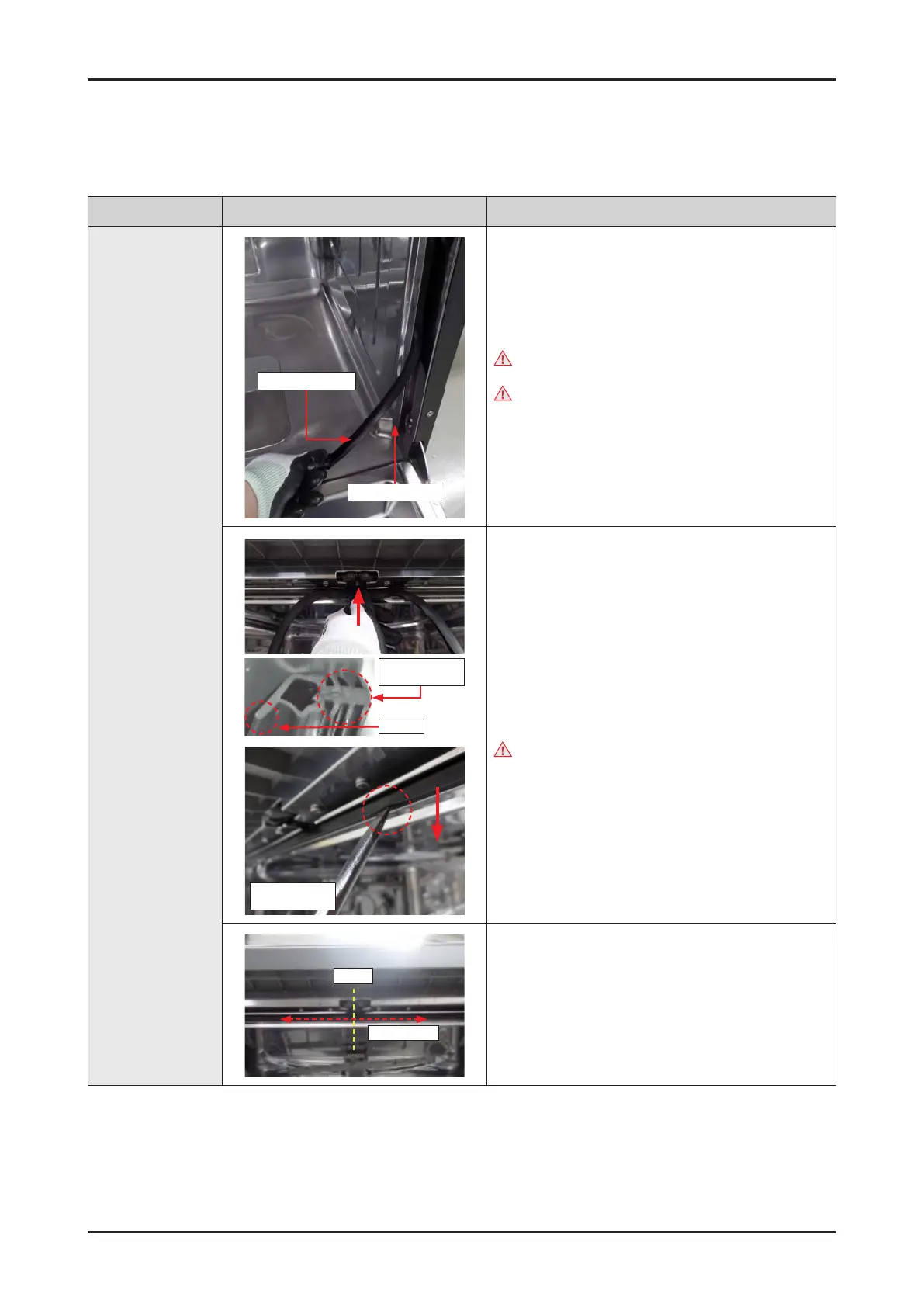

14 _ Standard Disassembly Drawings
2-5. SEAL TUB PACKING
- Seal Tub Packing : DD81-02898A / SVC-SEAL TUB PACKING
Part Figure Description
SEAL TUB PACKING
Seal tub packing
Bracket seal tub
[DISASSEMBLY]
1. Pull out the old seal from the BRACKET SEAL TUB.
Warning
Be sure to remove the power plug before servicing.
Warning
Be careful to touch the BRACKET SEAL TUB after
removed the seal.
It can cause injury from sharp edge.
Insert to Bracket
seal Tub
Seal tip
Seal tip faces to
inside
[ASSEMBLY]
1. Put some water on new SEAL TUB PACKING to assemble
it easily. Fold the SEAL TUB PACKING in half with the tip
of the seal facing inward.
Caution
Pay attention to the direction of seal. If it is assembled in
reverse, it may cause leakage of steam or water.
Center
About 20 cm
2. Assemble the SEAL TUB PACKING to center of the
BRACKET SEAL TUB. Press seal about 20 cm (red dotted
line) on both sides based on the center line.
