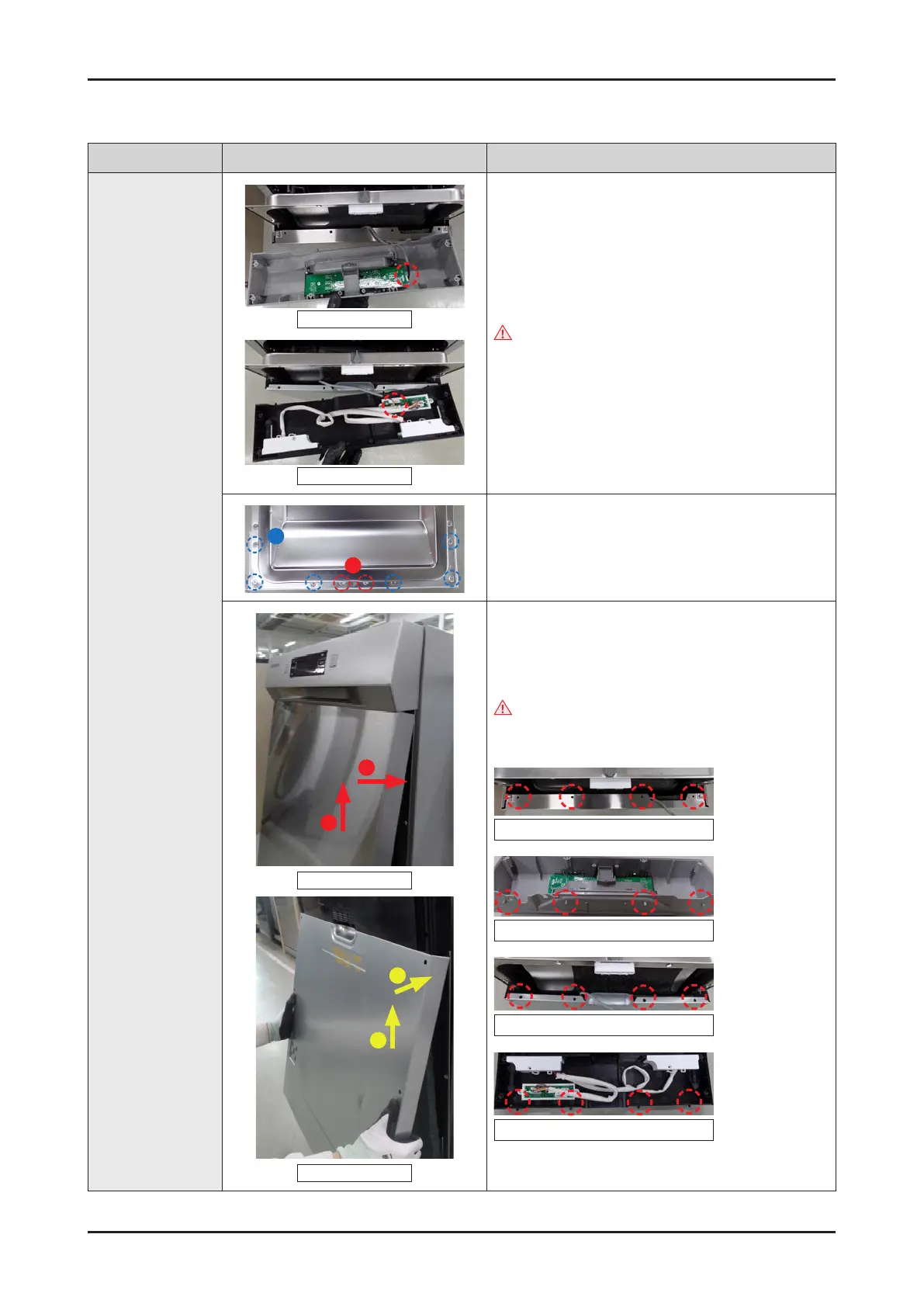

Standard Disassembly Drawings _ 11
Part Figure Description
DOOR HINGE
DW50DG4**F*
DW50DG4**B*
5. Connect the wire harness to Sub PBA.
Caution
Make sure the Wire harness are not getting stuck in other
parts.
B
A
6. Fix 8 screws to assemble the ASSY CONTROL PANEL with
Torx® T15 screwdriver.
- Type A: DD81-02756A / 2 pcs
- Type B: DD81-02758A / 6 pcs
DW50DG4**F*
1
2
DW50DG4**B*
1
2
7. Assemble the holes of DOOR OUTER to hooks of CONTROL
PANEL.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
Holes of door outer (DW50DG4**F*)
Ribs of control panel (DW50DG4**F*)
Holes of door outer (DW50DG4**B*)
Ribs of control panel (DW50DG4**B*)
