25

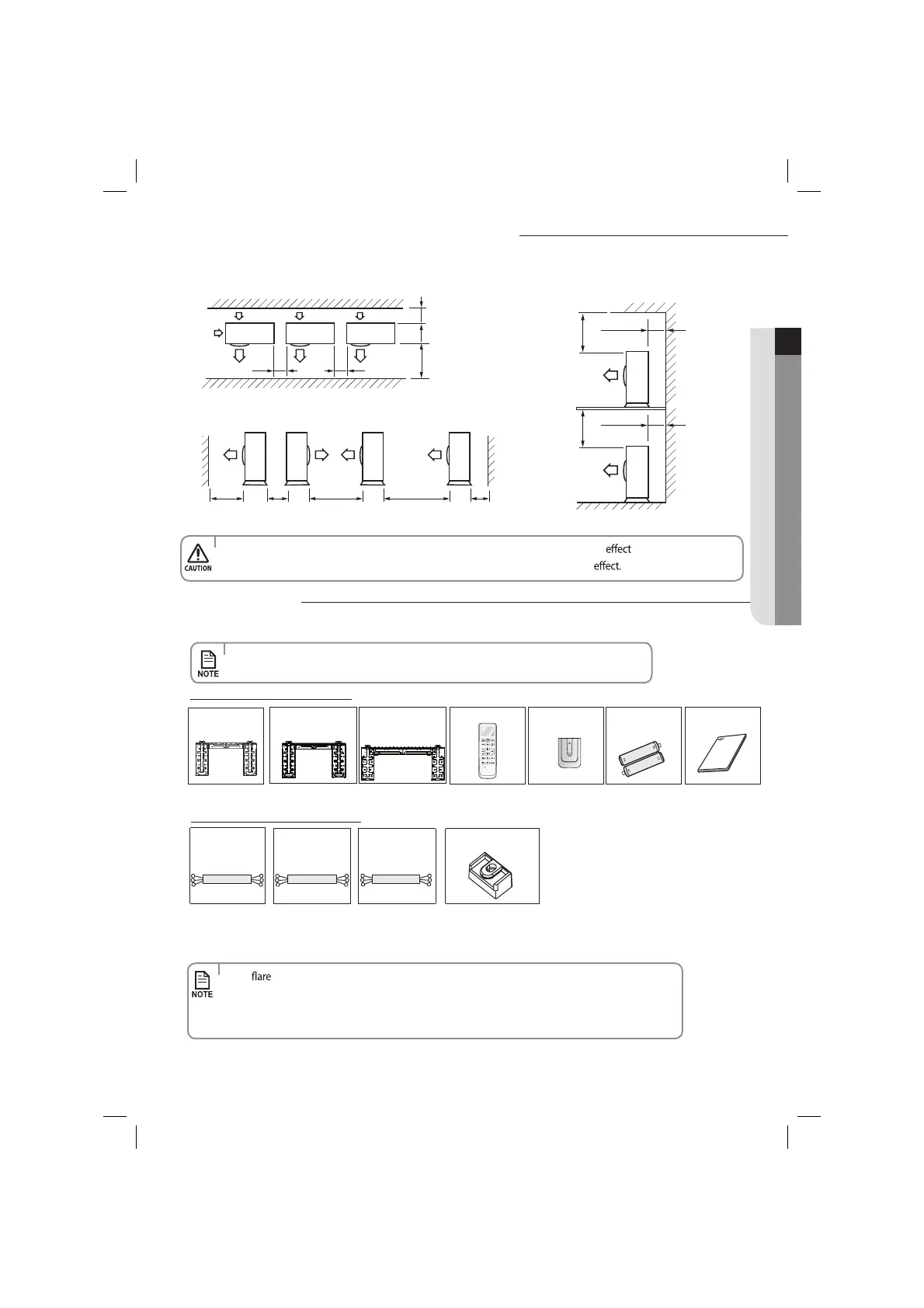

Choosing the installation location
(Unit : mm)
When the upper part of the outdoor unit and
the air outlet is opposite the wall
When the walls are blocking front and the rear side of the outdoor
units
When front and rear side of the outdoor unit is towards the wall
500 or more
300 or more
500 or more
300 or more
300 or
more
1500 or
more
600 or more 600 or more
1500 or
more
600 or
more
3000 or
more
200 or
more
3000 or
more
t If installation is done in inappropriate space, unit may generate sound and cause bad on the product.
t Installation must be done in level and in a place where vibration will not cause any
Accessories
The following accessories are supplied with the air conditioner:
Accessories in the Outdoor Unit Case
Installation Plate (1)
✴✴
05/07
✴✴
✴✴
09U Q
✴
✴✴
09U P
✴
Batteries for
Remote Control (2)
Assy-Instruction
Manual
Remote Control (1)
Accessories in the Indoor Unit Case
t The number of each accessory is indicated in parentheses.
Remote Control
Holder (1)
Rubber Leg (4)
t The nuts are attached to the end of each pipe of an evaporator or a service port.
Use the nuts when connecting the pipes.
t ehT wire assembly cable is optional. If it is not supplied, use the standard cable.
t The drain plug and rubber leg are only included when the air conditioner is supplied without
the assembly pipe as seen in the picture below.
✻ ✻
✻
ENGLISH
✴✴ ✴✴
✴✴
3-wire
Assembly Cable (1)
3-wire
Power Cable (1)
AS05/07/09/12 AS18
AS24
3-wire
Power Cable (1)
Installation Plate (1) Installation Plate (1)
✴✴
12/18
✴✴
✴✴
24
✴✴
