37
English
Installation
Indoor Unit Installation

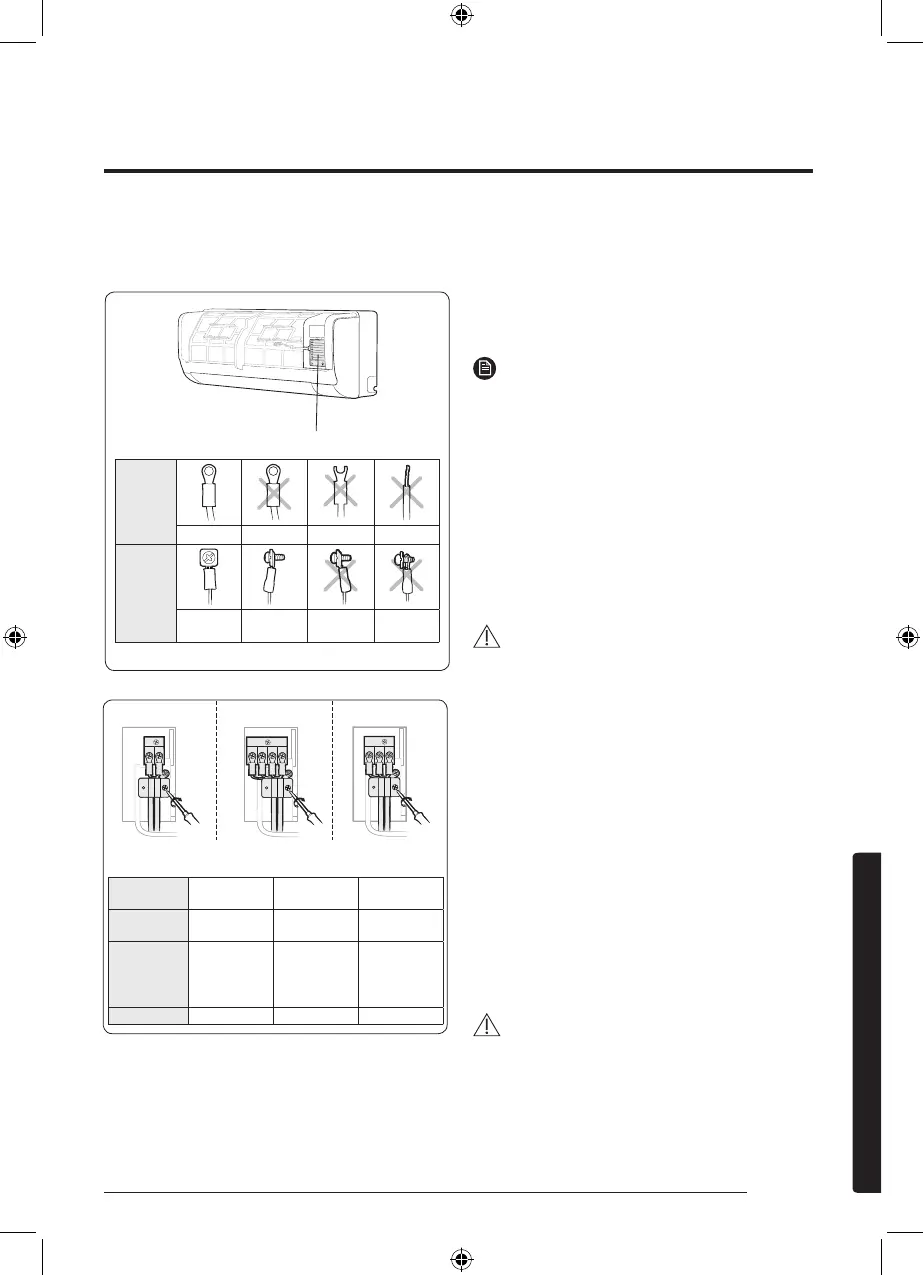

Step 2.1 Connecting the cables
(assembly cable)
Control box
N(1) 1 2 3
Fasten the screws for the wire holders.
N(1) 1 2
N(1) 1
• When performing electrical and earthing works,
be sure to comply with the 'technical standards of
electrical installations' and the 'wiring regulations'
in the local regulations.
• Tighten the terminal block screw to 1.2-1.8 N•m
(1.2-1.8 kgf•cm).
NOTE
• Each wire is labelled with the corresponding
terminal number.
• Use shield cable (Category 5; less than 50pF/m) for
noisy environmental site.
• Power supply cords of parts of appliances
for outdoor use shall not be lighter than
polychloroprene sheathed flexible cord. (Code
designation
IEC:60227 IEC53/CENELEC: H05VV-F,
IEC: 60245 IEC 66/CENELEC: H07RN-F, IEC: 60245
IEC 57/CENELEC: H05RN-F)
• Power & Communication cable shall not exceed
30m.
CAUTION
• For the terminal block wiring, use a wire with a
ring terminal socket only. Regular wires without
a ring terminal socket may become a hazard due
to overheating of the electrical contact during
installation.
• If you need to extend the pipe, be sure to extend
the cable, too. The maximum length of each of the
cable and pipe used should not exceed 15 metres
(TT18TT) and 20 metres (TT24TT).
• Do not connect two or more different cables to
extend the length. This connection may cause fire.
• Each circular terminal must match the size of its
corresponding screw in the terminal block.
• After connecting the cables, make sure that
terminal numbers on the indoor and outdoor units
match.
• Ensure that power and communication cables are
separated, they must not be in the same cable.
WARNING
• Connect the wires firmly so that wires cannot be
pulled out easily. (If they are loose, it could cause
burn-out of the wires.)
Before
connecting
Correct Upside down Damaged Non-circular
After
connecting
Correct Correct
Upside down Non-fitted
(Front view) (Side view)
<Circular terminal>
Model
TT18/24KR/MRTT
TT18KQ/MQTT TT24KQ/MQTT
Power cable
(Indoor unit)
3G X 2.5 mm²,
H05VV-F
3G X 2.5 mm²,
H05VV-F
3G X 2.5 mm²,
H05VV-F
Indoor-to-
Outdoor
power cable
3G X 2.5 mm²,
H07RN-F
3G X 2.5 mm²,
H07RN-F,
2G X 0.75 mm²,
H05RN-F
4G X 2.5 mm²,
H07RN-F
Type GL 25A 25A 25A
TT18/24KR/MRTT TT18KQ/MQTT TT24KQ/MQTT
EN_DB68-06045A-01.indd 37 2/23/2017 1:07:53 PM
