English-47

INSTALLATION07

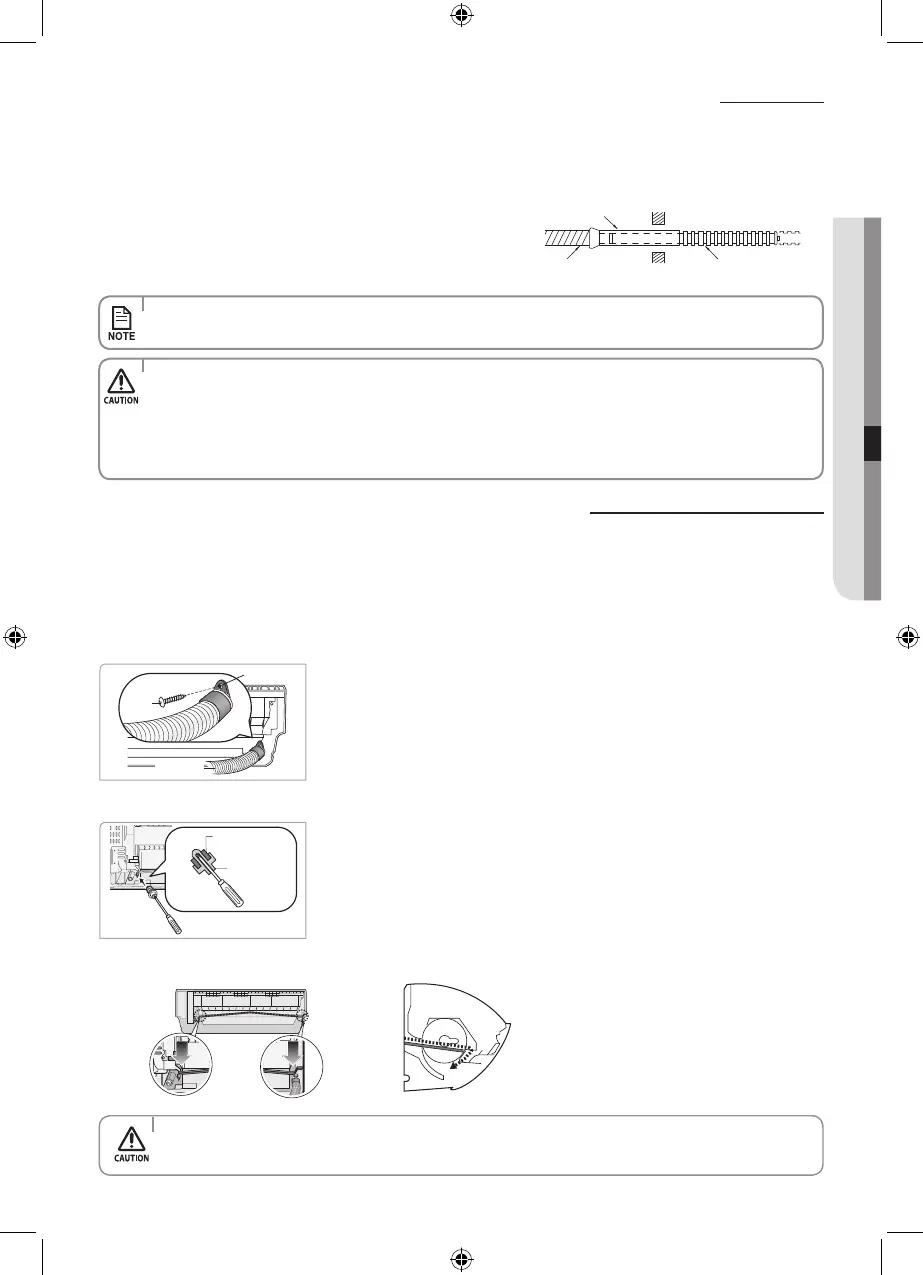

Installing and connecting the drain hose of the indoor unit

• Thehosewillbexedpermanentlyintopositionafternishingtheinstallationandthegasleaktest;

refer to page 52 for further details.

• Makesuretheinstalleddirectionofthedrainhoseiscorrect.

Inadequate installation may cause condensate water leakage.

• Ifthedrainhoseisroutedinsidetheroom,insulatethehosesothatdrippingcondensationdoesnotdamagethe

furniture or oors.

• DONOTWALLUPTHEDRAINHOSECONNECTION!

Drain hose connection must be easy accessible and serviceable.

6. Pass the drain hose under the refrigerant pipe, keeping the drain hose tight.

7. Pass the drain hose through the hole in the wall. Check if it slants

downwards as seen in the picture.

8. Using natural drainage method, check the drainage is normal.

Shield

Drain hose Extension drain hose

Changing direction of the drain hose

Change the direction only when it is necessary.

1. Detach the rubber cap with the pliers.

2. Detach the drain hose by pulling it and turning to the right.

3. Insert the drain hose by xing it with the screw into the groove of the drain hose and the outlet of the drain pan.

4. Attach the rubber cap with a screwdriver by turning it to the left until it xes to the end of the groove.

5. Check for leakage on both side of the drain outlet.

Pour the water in direction of arrow.

 Direction of the drained water

Rubber cap

Drain pan outlet

Drain hose

Screw

Screw hole

• Makesuretheindoorunitisinuprightpositionwhenyoupourwatertocheckforleakage.

Make sure that the water does not overow onto the electrical part.

MG_GOOD_R-410A_A3050_IB&IM_EN_DB68-05188A-00_UX.indd 47 2/17/2015 2:14:20 PM
