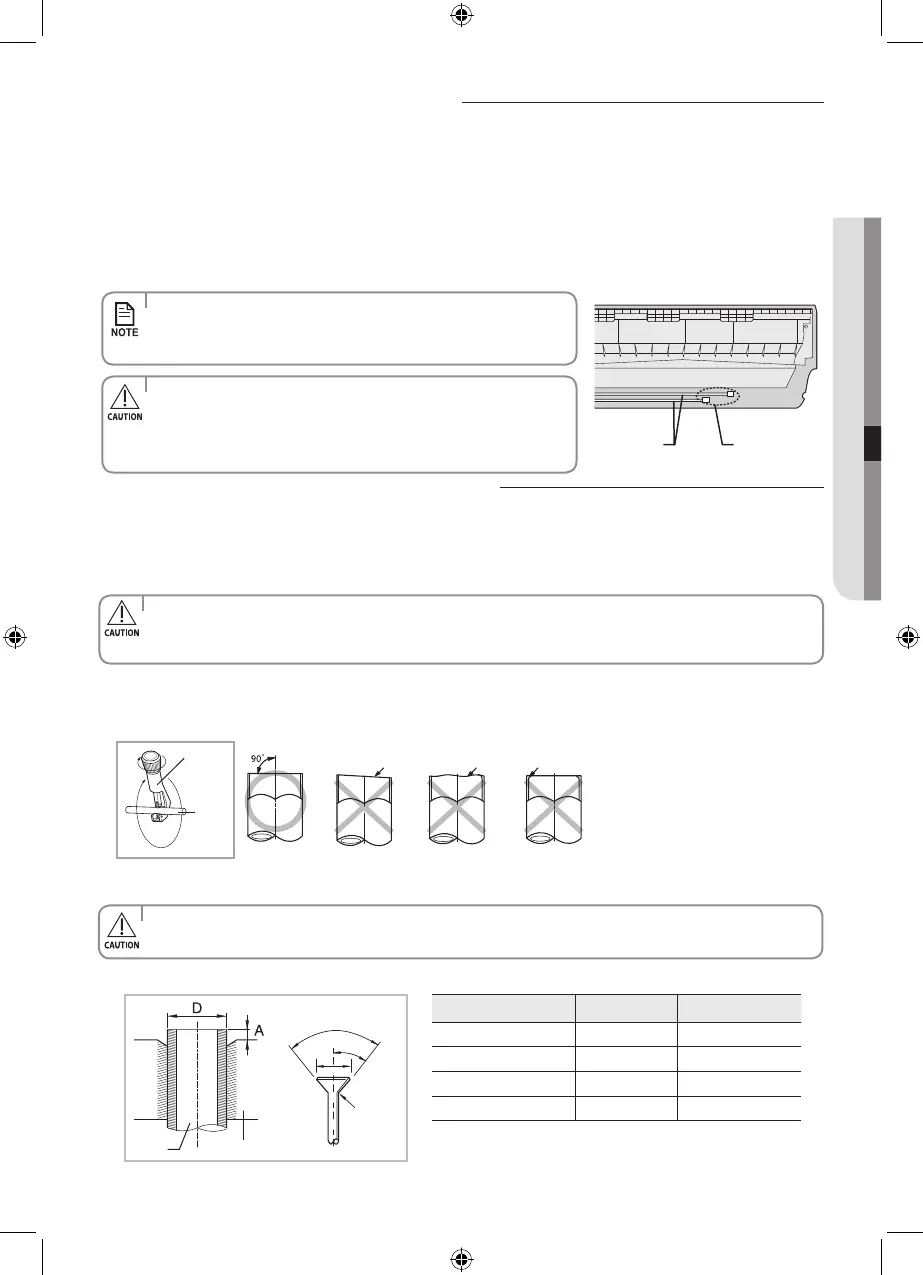

English-43

INSTALLATION07

Evacuating the indoor unit

• TheremainingairintheRefrigerationcycle,whichcontainsmoisture,

may cause malfunction on the compressor.

• Alwayscontacttheservicecenteroraprofessionalinstallationagency

for product installation.

• Topreventdirtorforeignsubstancesfromgettingintothepipesduring

installation, do NOT remove the caps completely until you are ready to

connect the pipes.

Thelengthofthepipecanbe:

 •Extendedupto:seetablepage33

 •Shortenupto:seepage33

Ifyouneedapipelongerthan5meters:

• Youmustaddrefrigeranttothepipes;otherwise,theindoorunitmayfreeze.

Cutting or extending the pipe

1. Unscrew the caps at the end of each pipe.



All inert gas exhausts from the indoor unit.

The indoor unit is supplied with inert gas (nitrogen).

Before installing the unit, check if nitrogen gas ows out of indoor unit.

If this one isn’t true, DO NOT INSTALL THE UNIT since leakage could be inside the indoor unit.

Unscrew the

caps

Pipes

1. Make sure that you have all the required tools (pipe cutter, reamer, aring tool and pipe holder).

2. If you want to shorten the pipe, cut it using a pipe cutter, ensuring that the cut edge remains at 90° with the side of the

pipe (see below examples of correct and incorrect cut edges).

3. To prevent a gas leak, remove all burrs at the cut edge of the pipe using a reamer.

Oblique Rough Burr

Pipe

cutter

Pipe

• Facethepipedownwhileremovingtheburrstomakesurethatburrsdonotgetintothepipe.

4. Put a are nut slightly into the pipe and modify the are.

Outer Diameter (D) Depth (A) Flaring Size (B)

ø6.35 mm 1.3 mm 8.7 - 9.1 mm

ø9.52 mm 1.8 mm 12.8 - 13.2 mm

ø12.70 mm 2.0 mm 16.2 - 16.6 mm

ø15.88 mm 2.2 mm 19.3 - 19.7 mm

Pipe Flare

90°± 2°

°

2

±°

5

4

R 0.4~0.8

B

SG_GOOD_A3050_IB&IM_EN_DB68-05200A-03.indd 43 2/2/2016 8:26:25 AM
