Connecting the assembly cable
2 . Open the cover panel.
3 . Remove the screw securing the connector cover.
4 . Pass the assembly cable through the rear of the indoor unit and connect the assembly cable to terminals.
(Refer to the picture below)
5 . Pass the other end of the cable through the 65 mm hole in the wall.
6 . Close the connector cover by tightening the screw carefully.
7 . Close the cover panel.
8 . Remove the terminal board cover on the side of the outdoor unit.

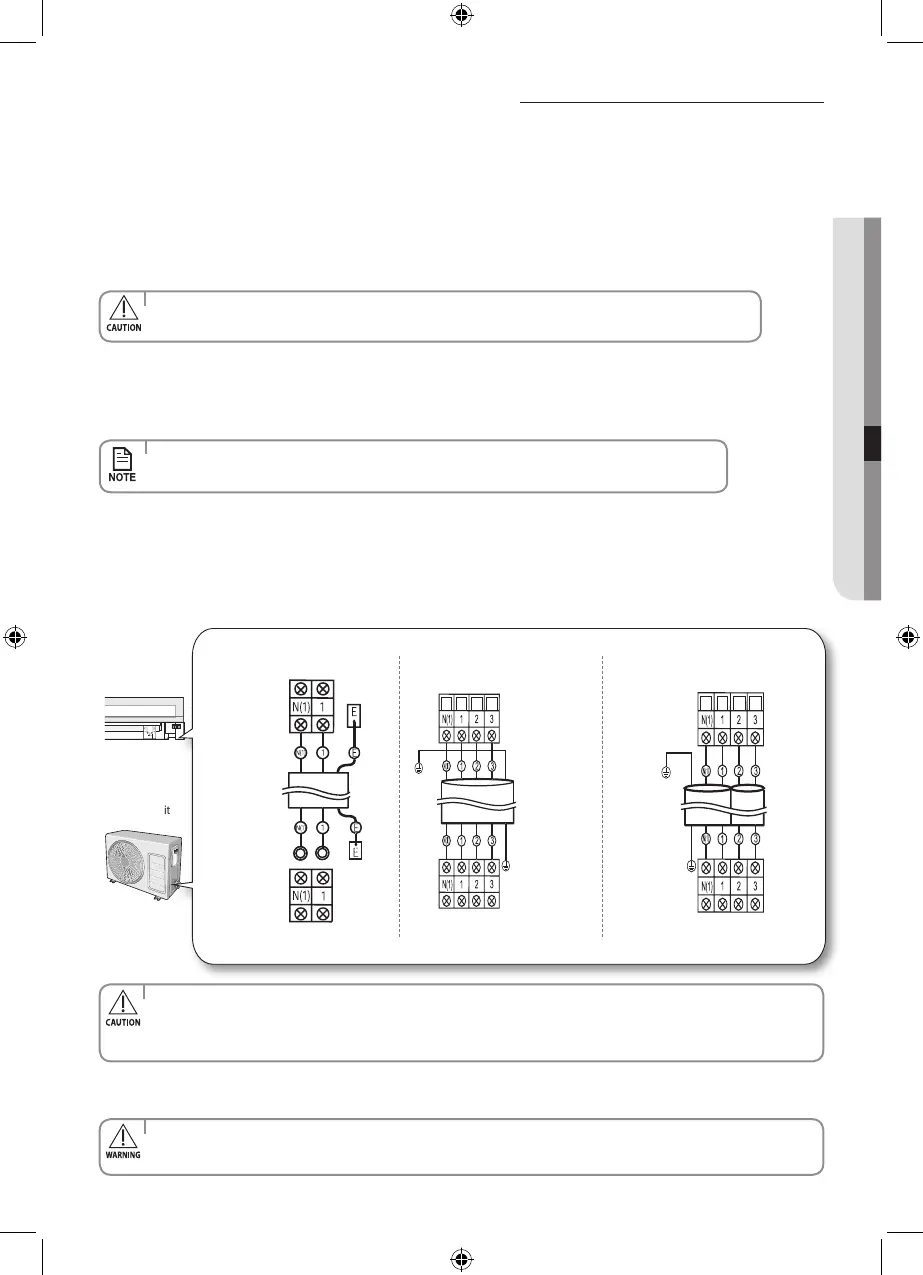

9. Connect the cables to the terminals as seen in the picture.
Indoor unit
Outdoor unit
• Alsocircularterminalmustbematchedwithscrewsizeinterminalblock.
• Afterconnectingthecables,makesureterminalnumbersontheindoor/outdoorunitmatches.
• PleaseensurethatPower&Communicationcablesareseparated,theymustnotbeinthesamecable.
1. Extend the assembly cable if necessary.
• Donotconnecttwoormoredierentcablestoextendthelength.
It may cause re.
When you install the unit, make rst refrigerant connections and then electrical connections.
Connect the air conditioner to grounding system before performing the electrical connection.
If unit is uninstalled, rst disconnect electrical cables, then refrigerant connections.
If the outdoor unit is more than 5 meters away from the indoor unit, you must extend the cable. The maximum length of the
cable is 15(09/12/18) / 20(24) meters.
Indoor unit
Outdoor unit
10. Connect the grounding conductor to the grounding terminals.
11. Close the terminal board cover by tightening the screw carefully.
• Connectthewiresaccordingtocolorcodes,referringtothewiringdiagram.
• Thepowercableandtheinterconnectioncableshouldbeselectedaccordingtothespecicationinpage40.
• Eachwireislabeledwiththecorrespondingterminalnumber.
09/12P
18KPRC
HC/JC
18/24PSG
24KPRC
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
Ground Wire
(Green/Yellow)
Ground Wire
(Green/Yellow)
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
Ground wire
(Green/Yellow)
