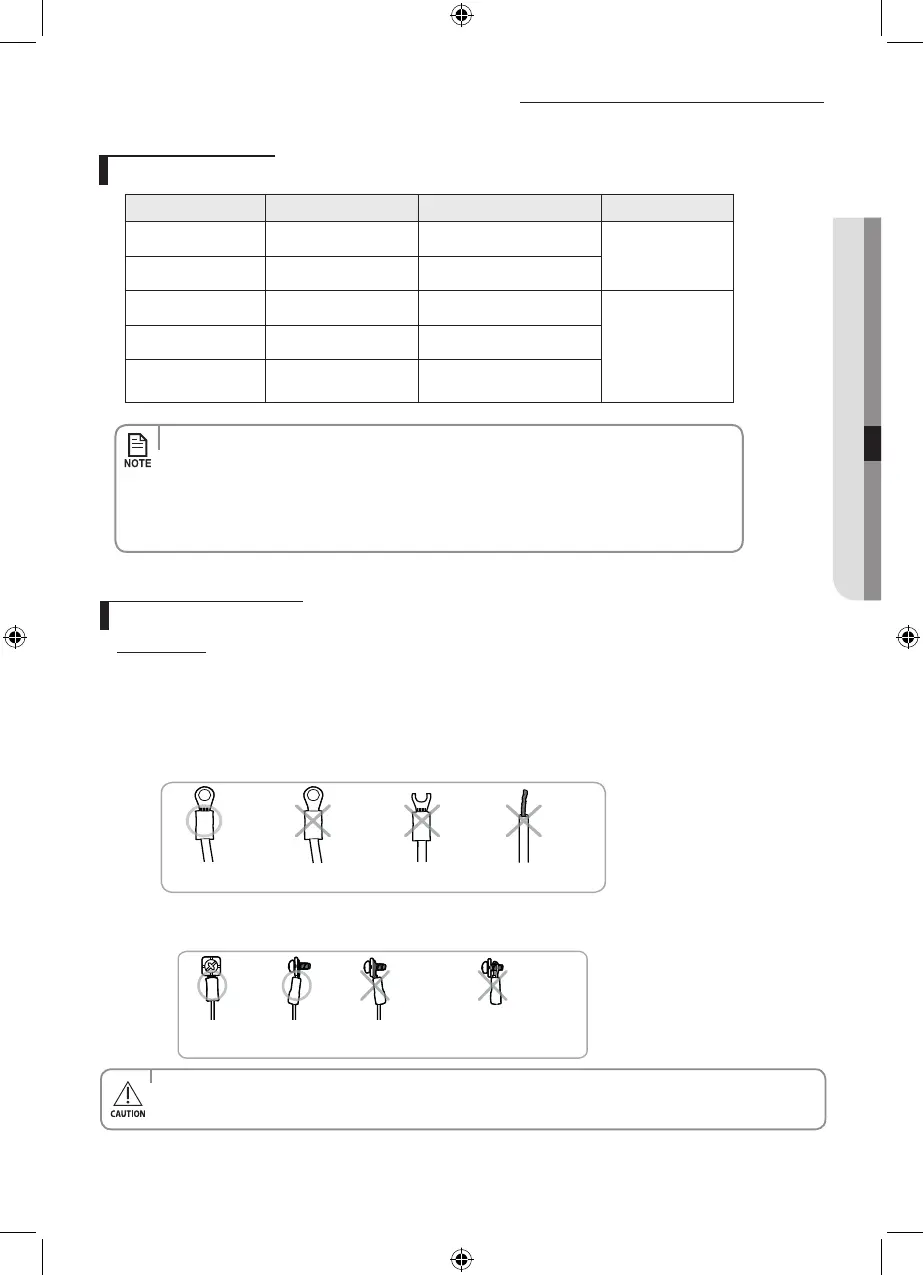

Connecting the assembly cable
Cable specication
• Connectthepowercabletotheauxiliarycircuitbreaker.Ifeverypolefailstoconnecttothe
power supply, it must be incorporated in a wire with a contact opening of ≥3 mm.
• Useshieldcable(Category5;lessthan50pF/m)fornoisyenvironmentalsite.
• Powersupplycordsofpartsofappliancesforoutdooruseshallnotbelighterthan
polychloroprenesheathedexiblecord.(CodedesignationIEC:60245IEC66/CENELEC:H07RN-F,
60245IEC57CENELEC:H05RN-F,IEC:60227IEC53/CENELEC:H05VV-F)
Connecting the cable
Electrical work
(1) For electrical and earth works, comply with the ‘technical standards of electrical installations’ and the the ‘wiring
regulations’ of the Local wiring regulations.
(2)Tightentheterminalblockscrewto1.2~1.8N•m(12~18kgf•cm).
(3) Precautions when connecting terminal blocks of the indoor unit
Before connecting, make sure the connecting part of the terminal socket is facing upwards.
Upside down
The terminal
socketis damaged.
There is no ring
terminalto cover the wire.
There must be no space between the terminal and the screw when connected.
- Any remaining space may become a re hazard due to overheating of the electrical contact.
The terminal socket
is upside down.
Either the screw is not fitted
properly or there is a space between
the screw and the ring terminal.
• Fortheterminalblockwiring,useawirewitharingterminalsocketonly.
Regular wires without a ring terminal socket may become a re hazard due to overheating of the electrical contact during
a wiring work.
Model Power cable
Interconnection cable Type GL
13JC/KC
3G x 1.0mm², H05VV-F 3G x 1.0mm², H07RN-F
20 A
13JP/KP
3G x 1.0mm², H05VV-F 5G x 1.0mm², H07RN-F
19/25JC/KC
3G x 2.5mm², H05VV-F 3G x 2.5mm², H07RN-F
25 A
19JP/KP
3G x 1.5mm², H05VV-F 5G x 1.5mm², H07RN-F
25JP/KP
3G x 2.5mm², H05VV-F
3G x 2.5mm², H07RN-F
2 x 0.75mm², H05RN-F
HC_BETTER_A3050_IB&IM_EN_DB68-04953A_UX.indd 41 10/20/2015 11:00:10 AM
