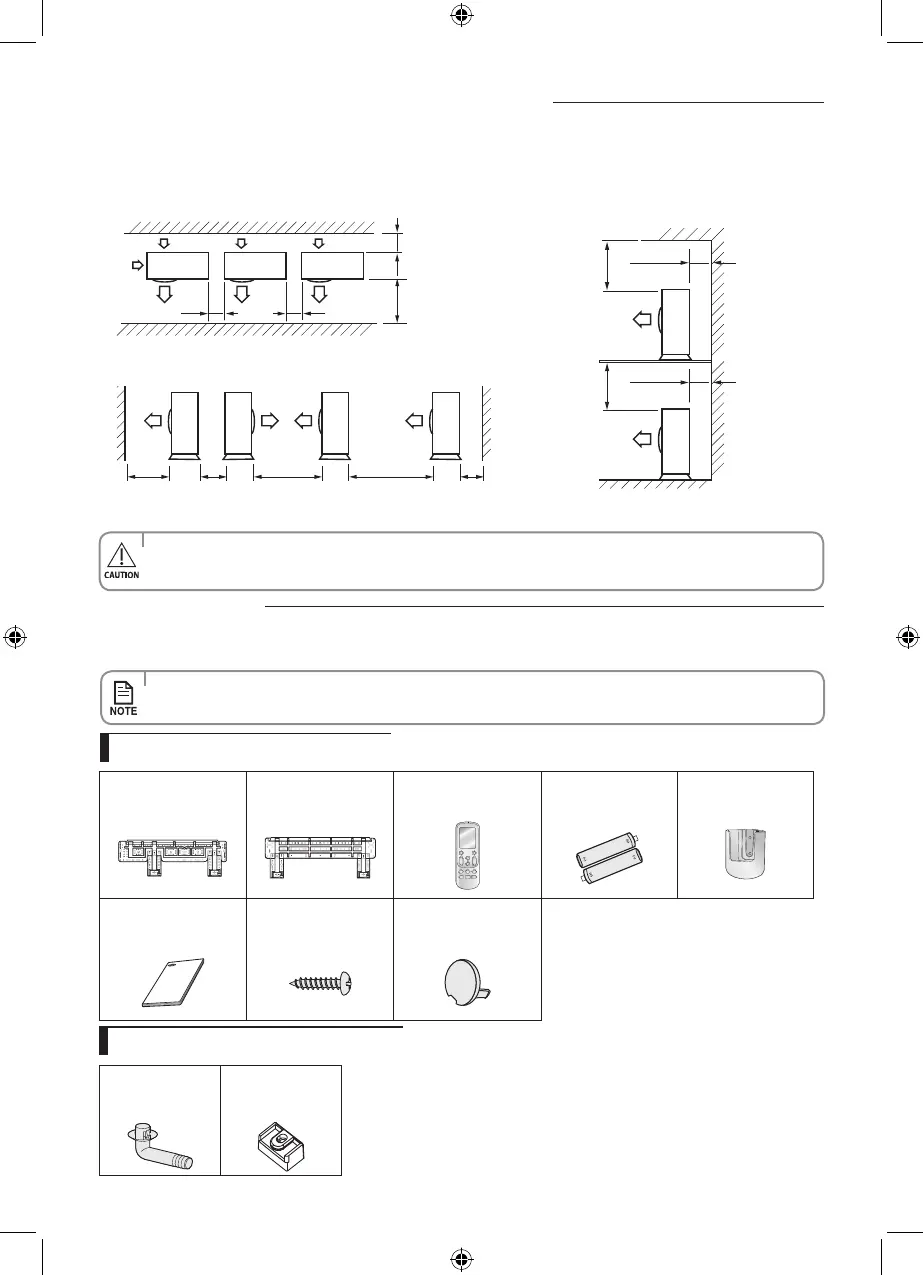

English-36
(Unit:mm)
When the upper part of the outdoor unit and
the air outlet is opposite the wall
When the walls are blocking front and the rear side of the outdoor
units
When front and rear side of the outdoor unit is towards the wall
500 or more
300 or more
500 or more
300 or more
300 or
more
1500 or
more
600 or more 600 or more
1500 or
more
600 or
more
3000 or
more
200 or
more
3000 or
more
• Ifinstallationisdoneininappropriatespace,unitmaygeneratesoundandcausebadeectontheproduct.
• Installationmustbedoneinlevelandinaplacewherevibrationwillnotcauseanyeect.
Choosing the installation location
Installation Plate (1)
✴✴13✴✴
Installation Plate (1)
✴✴19/25✴✴
Remote controller (1)
Batteries for Remote
controller (2)
Remote Control
Holder (1)
User’s & Installation
Manual (1)
M4 x 12 Tapped Screws
(2)
Cap Screws (2)
Accessories
Thefollowingaccessoriesaresuppliedwiththeairconditioner:
• Thenumberofeachaccessoryisindicatedinparentheses.
Accessories in the indoor unit case
Accessories in the outdoor unit case
Drain Plug (1)
AR
✴✴JP/KP✴✴
Rubber Leg (4)
HC_BETTER_A3050_IB&IM_EN_DB68-04953A_UX.indd 36 10/20/2015 11:00:03 AM
