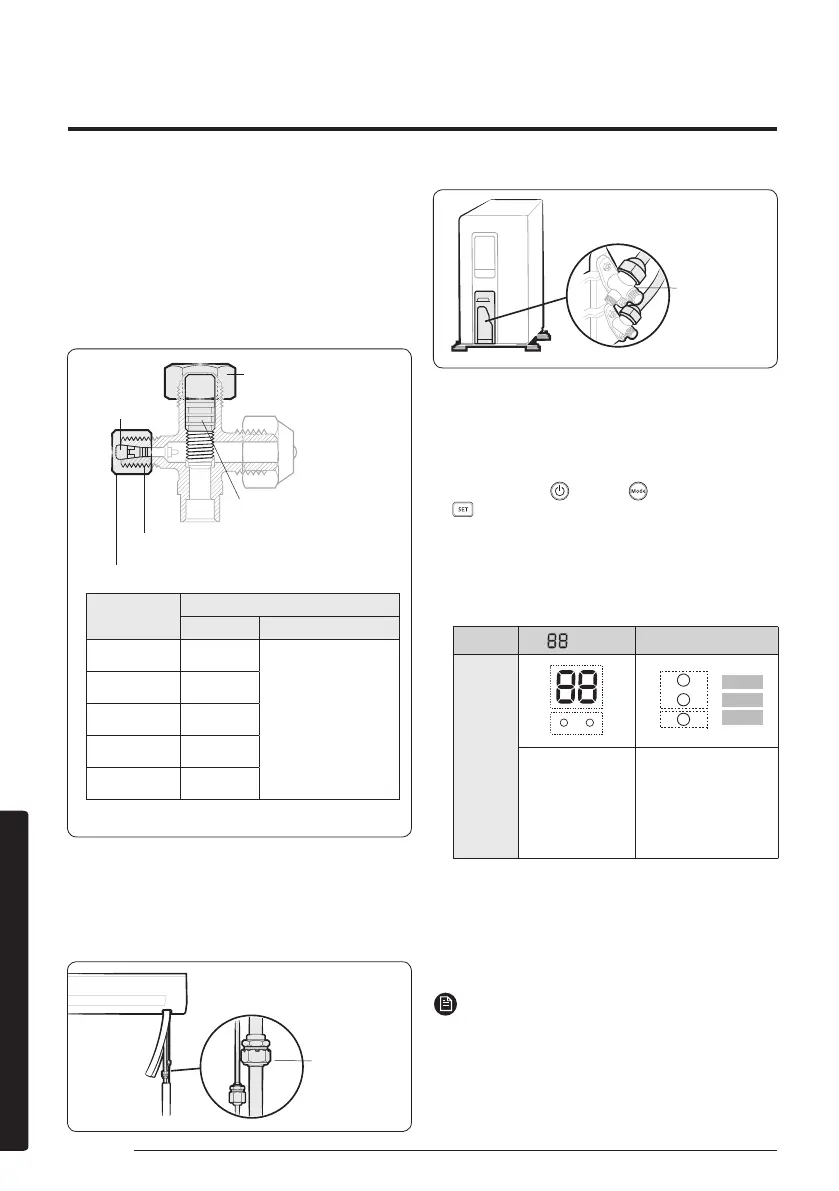

48 English
Installation
Installation Inspection
Step 4.1 Performing the gas leak tests
1 Before inspecting the leakage, use a torque
wrench to close the cap for the stop valve.
(Comply with a tightening torque for each size
of the diameter, and tighten the cap firmly to
prevent any leakage.)
Tightening torque for body cap
(Refer to the table)
Spindle
Charging core
R-22: Thread of the screw - 7/16-2OUNF
R-410A: Thread of the screw -1/2-2OUNF
Tightening torque for charging port cap (Refer to the table)
2 Insert inert gas into the pipes connected to
indoor and outdoor units.
3 Test leakage on the connection parts of the
indoor and outdoor units with soap lather or
liquid.
Test parts for the
indoor unit
Test parts for the
indoor unit
Test parts for the
indoor unit
Test parts for the
indoor unit
Step 4.2 Running the Smart Install mode
1 Make sure that the air conditioner is in the
standby status.
2 Hold down the (Power), (Mode), and
(SET) buttons on the remote control
simultaneously for 4 seconds.
3 Wait until Smart Install mode succeeds or fails. It
takes approximately 7 to 13 minutes.
• While Smart Install mode is proceeding:
Type
Display
LED Display
Indoor
unit
indicator
LED1
LED2
LED3
The progress is
displayed as a
number between
0 and 99 on the
indoor unit display.
The LEDs on the
indoor unit display
blink in sequence,
then all of them blink
simultaneously. These
operations repeat.
• When Smart Install mode succeeds: Smart
Install mode ends with ringing sound, and the
air conditioner is in standby status.
• When Smart Install mode fails: An error
message is displayed on the indoor unit
display, and Smart Install mode ends.
NOTE
• Smart Install mode can be operated only with the
supplied remote control.
• During the Smart install mode procedure, remote
control cannot be operated.
Outer diameter
(mm)
Tightening torque
Body cap (N•m) Charging port cap (N•m)
ø 6.35 20 to 25
10 to 12
ø 9.52 20 to 25
ø 12.70 25 to 30
ø 15.88 30 to 35
Over ø 19.05 35 to 40
( 1 N•m = 10 kgf•cm )
