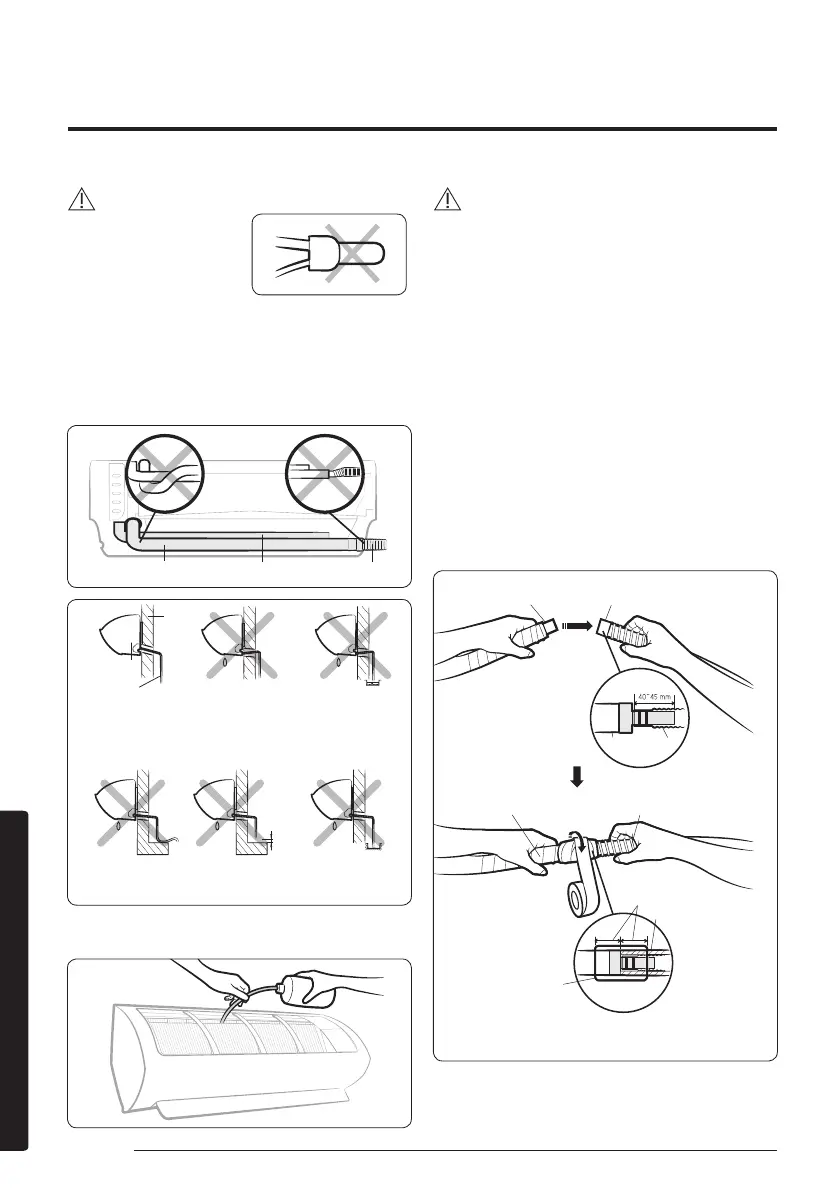

Installation
WARNING
• In case of extending the
electric wire, please DO
NOT use a round-shaped
pressing socket.
– Incomplete wire
connections can cause electric shock or a fire.
Step 2.5 Installing and connecting the
drain hose
1 Install the drain hose.
Drain hose Assembly pipe Connection hose
Wall
5 cm
less
Ditch
Water
Slant downwards Slant upwards Dipped in water
Bent Too small
clearance
Too small
clearance
Indoor unit
Drain hose
2 Pour water into the drain pan. Check whether the
hose is well drained.
CAUTION
• Make sure that the indoor unit is in upright
position when you pour water to check for
leakage. Make sure that the water does not
overflow onto the electrical part.
• If the diameter of the connection hose is smaller
than the product's drain hose, water leakage may
occur.
• Inadequate installation may cause water leakage.
• If the drain hose is routed inside the room,
insulate the hose so that dripping condensation
does not damage the furniture or floors.
• Do not box in or cover the drain hose connection.
Drain hose connection must be easily accessible
and serviceable.
Step 2.6 Optional: Extending the drain
hose
(A) (B)
Drain hose (A) Extension drain hose (B)
Drain hose Extension drain hose
20 mm or more
Foam insulation
Vinyl tape
