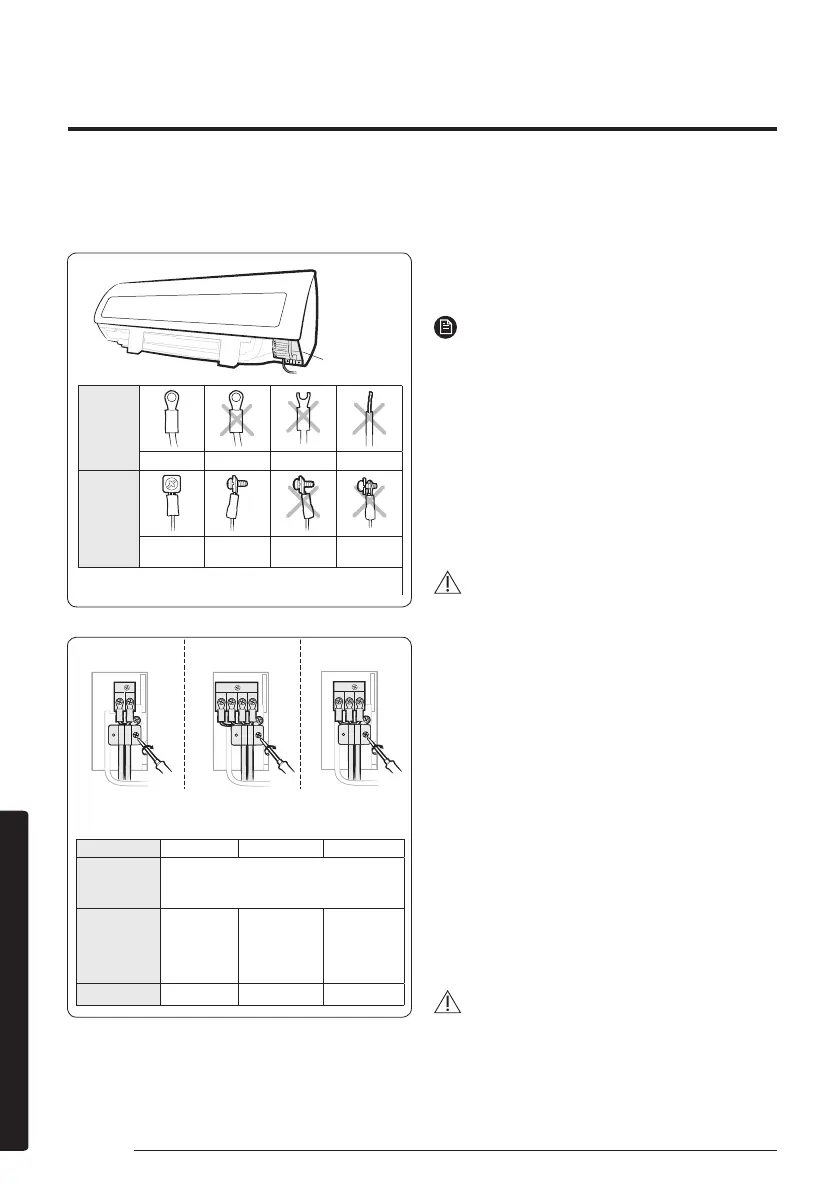

38 English
Installation
Step 2.3 Connecting the cables (assembly
cable)
Control box
N(1) 1 2 3
Fasten the screws for the wire holders.
N(1) 1 2
N(1) 1
• When performing electrical and earthing works,
be sure to comply with the 'technical standards
of electrical installations' and the 'wiring
regulations' in the local regulations.
• Tighten the terminal block screw to 1.2-1.8 N•m
(1.2-1.8 kgf•cm).
NOTE
• Each wire is labelled with the corresponding
terminal number.
• Use shield cable (Category 5; less than 50pF/m)
for noisy environmental site.
• Power supply cords of parts of appliances
for outdoor use shall not be lighter than
polychloroprene sheathed flexible cord. Code
designation IEC: 60227 IEC53/CENELEC: H05VV-F,
IEC: 60245 IEC66/CENELEC:H07RN-F,IEC: 60245
IEC 57/CENELEC: H05RN-F)
• Power & Communication cable shall not exceed
30m.
CAUTION
• For the terminal block wiring, use a wire with a
ring terminal socket only. Regular wires without
a ring terminal socket may become a hazard due
to overheating of the electrical contact during
installation.
• If you need to extend the pipe, be sure to extend
the cable, too. The maximum length of each of
the cable and pipe used should not exceed 15
metres (✴✴18✴✴) and 20 metres (✴✴24✴✴).
• Do not connect two or more different cables to
extend the length. This connection may cause
fire.
• Each circular terminal must match the size of its
corresponding screw in the terminal block.
• After connecting the cables, make sure that
terminal numbers on the indoor and outdoor
units match.
• Ensure that power and communication cables are
separated, they must not be in the same cable.
WARNING
• Connect the wires firmly so that wires cannot be
pulled out easily. (If they are loose, it could cause
burn-out of the wires.)
Before
connecting
Correct Upside down Damaged Non-circular
After
connecting
Correct Correct
Upside down Non-fitted
(Front view) (Side view)
<Circular terminal>
Model
✴✴18KR/MR✴✴ ✴✴18KQ/MQ✴✴ ✴✴24✴✴
Power cable
(Indoor
unit)
3G X 2.5 mm², H05VV-F
Indoor-to-
Outdoor
power cable
3G X 2.5 mm²,
H07RN-F
3G X 2.5 mm²,
H07RN-F,
2G x 0.75 mm²
H05RN-F
4G X 2.5 mm²,
H07RN-F
Type GL 25A 25A 25A
✴✴18KR/MR✴✴
✴✴18KQ/MQ✴✴ ✴✴24✴✴
