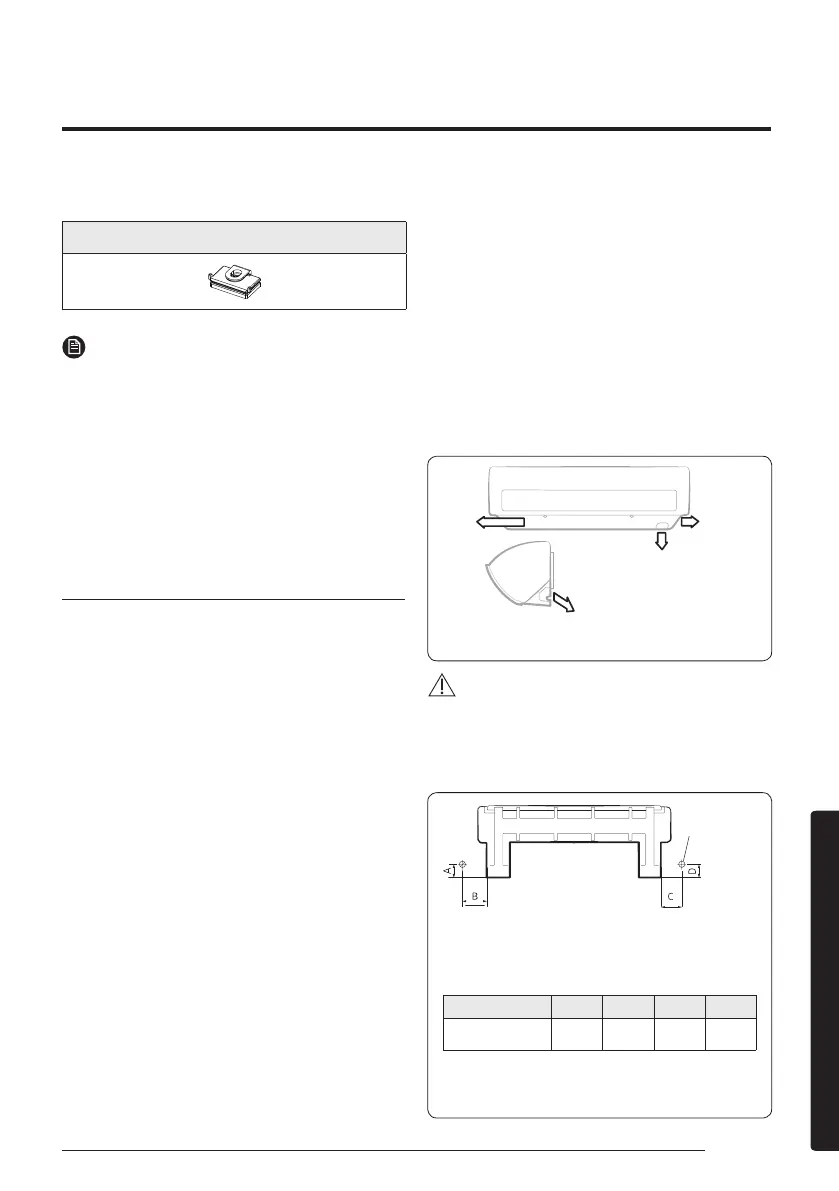

35English
Installation
Accessories in the outdoor unit package
Rubber leg (4)
NOTE
• A flare nut is attached to the end of each pipe
of an evaporator or a service port. Use flare nuts
when connecting the pipes.
• Wire assembly cables are optional. If they are not
supplied, use standard cables.
• The drain plug and the rubber legs are included
only when the air conditioner is supplied without
assembly pipes.
• If these accessories are supplied, they are in the
accessory package or outdoor unit package.
Tools
General tools
• Vacuum pump
(Backward flowing prevention)
• Manifold gauge
• Stud finder
• Torque wrench
• Pipe cutter
• Reamer
• Pipe bender
• Spirit level
• Screwdriver
• Spanner
• Drill
• L-wrench
• Measuring tape
Tools for test operation
• Thermometer
• Resistance meter
• Electroscope
Step 1.4 Drilling a hole through the wall
Before fixing the installation plate to a wall and
then fixing the indoor unit to the installation plate,
a window frame, or a gypsum board, you must
determine the position of a hole (with 65 mm inner
diameter) through which the pipe bundle (consisting
of power and communication cables, refrigerant
pipes, and drain hose) will pass and then drill that
hole.
1 Determine the position of a 65 mm hole in
consideration of the possible directions of the
pipe bundle and the minimum distances between
the hole and the installation plate.
RightLeft
Rear right or left
<Possible directions of the pipe bundle>
Bottom right
CAUTION
• If changing the pipe direction from left to right,
do not drastically bent it but slowly turn it in the
opposite direction as shown. Otherwise, the pipe
may be damaged in the process.
<Minimum distances between the hole and the
installation plate>
Pipe bundle hole
(Unit : mm)
Model A B C D
✴✴18/24✴✴ 33 110 110 33
Pipe bundle hole: Ø 65 mm
